SystemAir SysAqua 25 User Manual

English
-20
-15
-10
-5
0
5
10
15
20
25
15 20 25 30 35 40 45 50 55
60
Leaving water temperature (°C)
Air temperature (°C)
-15
-10
-5
0
5
10
15
20
25
30
35
40
45
50
55
-15 -10 -5 0 5 10 15
20
Leaving water temperature (°C)
Air temperature (°C)
BRINES or
WATER + GLYCOL
+ Fan speed controller
WATER + Fan
speed controller
BRINES or
WATER + GLYCOL
WATER
11SysAqua
IMPORTANT
* These datas are given for guidance only. They must be checked aat commissioning according to prevailing
standards. They depend on the installation and the cables used.
A main fuse must mandatorily be provided on the power supply.
² Fuses not supplied
² Cables not supplied

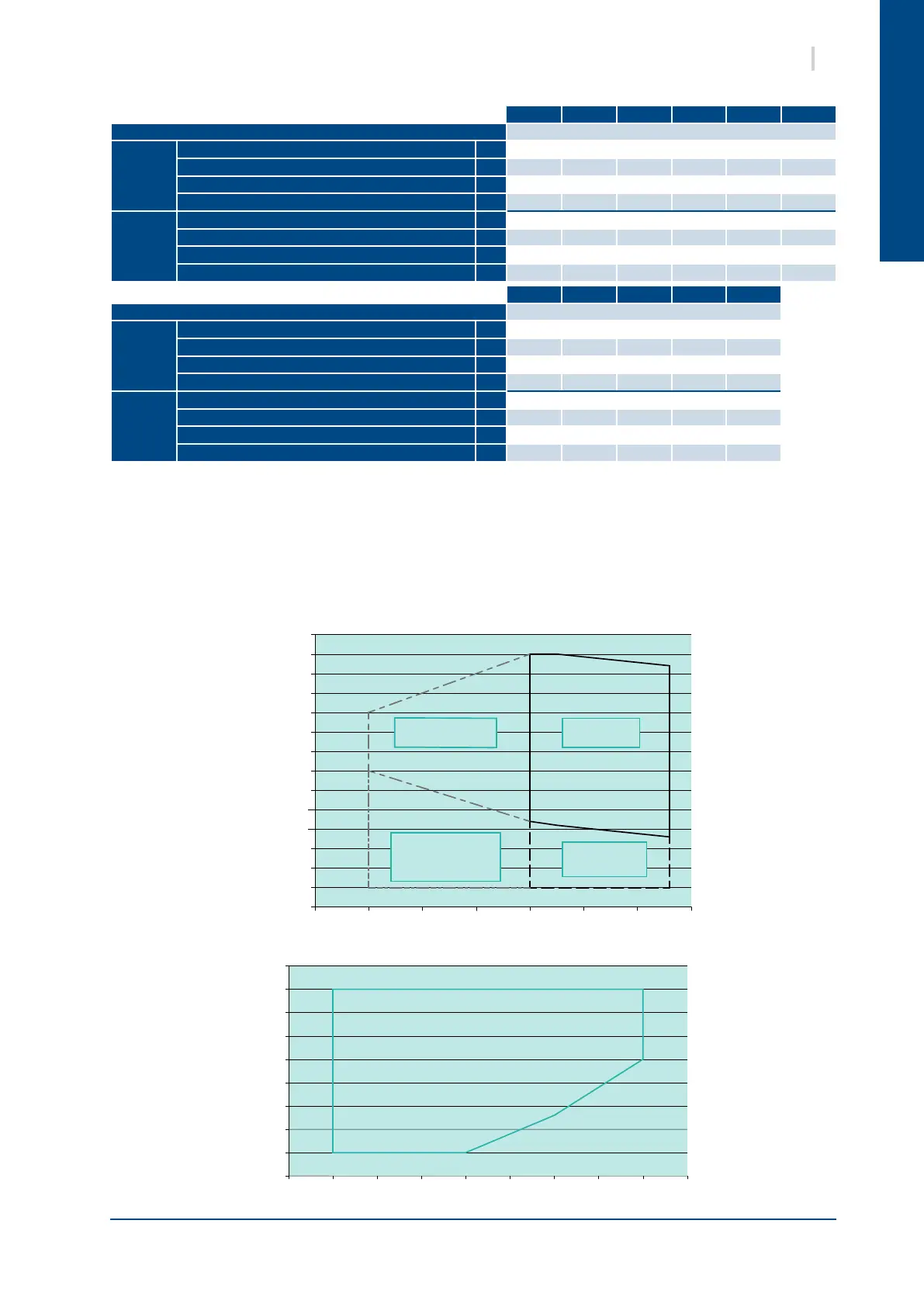

8.3.2. SYSAQUA WITH HIGH-PRESSURE FAN
8.4. OPERATING LIMITS
8.4.1. SYSAQUAL/SYSAQUAH COOLING MODE
8.4.2. SYSAQUAH HEATING MODE
25 30 35 40 45 55
Power supply 3N ~400 V - 50 Hz
Without
pump
Maximum current A
24.5 26.5 34 36 41 45
Fuse rating aM A
25 32 40 40 50 50
Total starting current (without soft starter) A
66 80 120 121 134 141
Total starting current (with soft starter) A
38 51 55 56 67 74
Standard
pump
Maximum current A
26 28 36.5 38.5 43.5 49
Fuse rating aM A
32 32 40 40 50 50
Total starting current (without softstarter) A
68 82 123 124 137 146
Total starting current (with softstarter) A
40 53 57 58 69 79
65 75 90 105 125
Power supply 3N ~400 V - 50 Hz
Without
pump
Maximum current A
63 68 79.5 87.5 103.5
Fuse rating aM A
63 80 80 100 125
Total starting current (without soft starter) A
205 210 267 314 352
Total starting current (with soft starter) A
105 110 129 147 184
Standard
pump
Maximum current A
67.5 72 83.5 92 108
Fuse rating aM A
80 80 100 100 125
Total starting current (without softstarter) A
210 215 271 319 357
Total starting current (with softstarter) A
110 115 134 152 189
