8.1 Hydraulic Features
8 - Technical Data

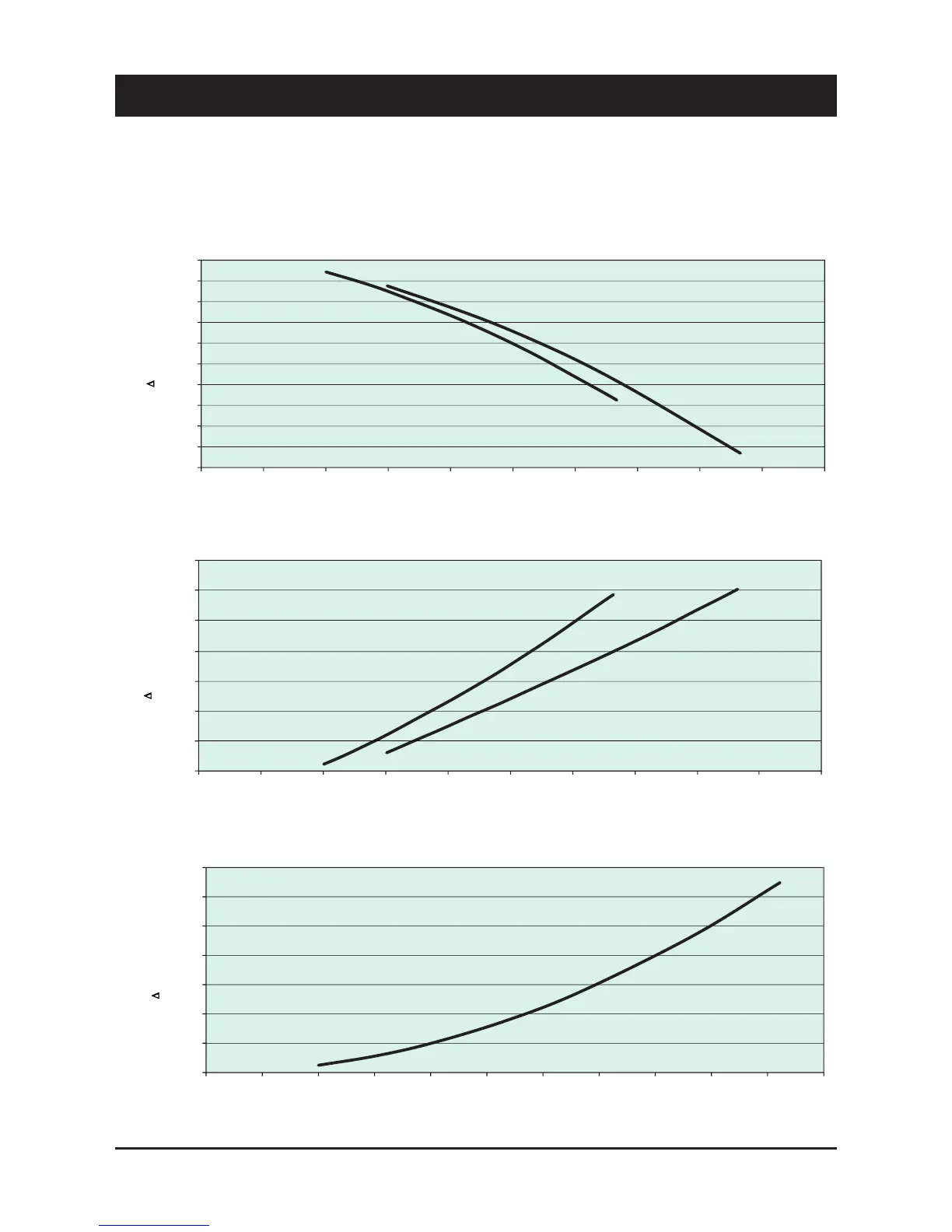

Unit available pressure and Circuit pressure drop
Circuit pressure drop
0
5
10
15
20
25
30
35
0,00 0,25 0,50 0,75 1,00 1,25 1,50 1,75 2,00 2,25 2,50
2,75
P (kPa)
G (l/s)
Filter pressure drop*
* 1”1/4 diameter, filtration capacity 500 µm / 35 mesh
40
20
60
80
100
120
140
160
180
200
220
0,00 0,25 0,50 0,75 1,00 1,25 1,50 1,75 2,00 2,25
2,50
P (kPa)
G (l/s)
20-25
30-35
Pump available pressure
0
70
60
50
40
30
20
10
0,00 0,25 0,50 0,75 1,00 1,25 1,50 1,75 2,00 2,25
2,50
P (kPa)
G (l/s)
20-25
30-35
