3.1.5 Caution: Screw Head Types
Pozidriv screws are the preferred standard on all T2000 series equipment. Pozidriv No.
1 and 2 screwdrivers will fit all pozidriv screws used in the T2000: Philips cross-head
screwdrivers are not satisfactory for use on these screws.

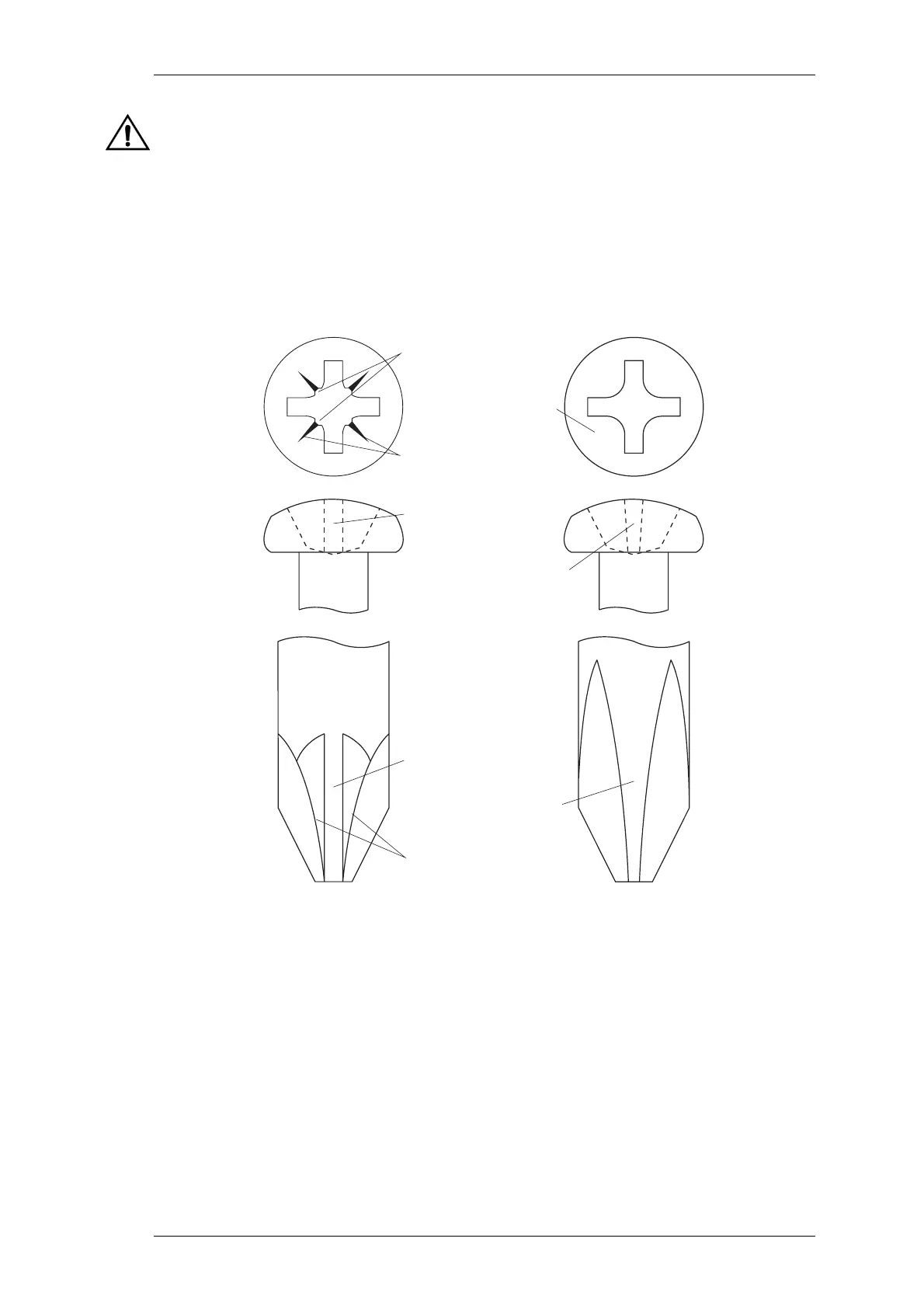

The following diagram identifies the differences between Philips and Pozidriv screw-
drivers.
Figure 3.2 Screwdriver Identification
The diagrams on the following pages show the types of screws used in the T2000
Series II radios, their locations and torque specifications.
driving flutes with
parallel sides
driving flutes with
tapered sides
Pozidriv Philips
internal notches
"star" markings
between slots
no special markings
slots with parallel sides
slots with tapered sides
ridges between
driving flutes
