Model C152 & C161
Parts
4

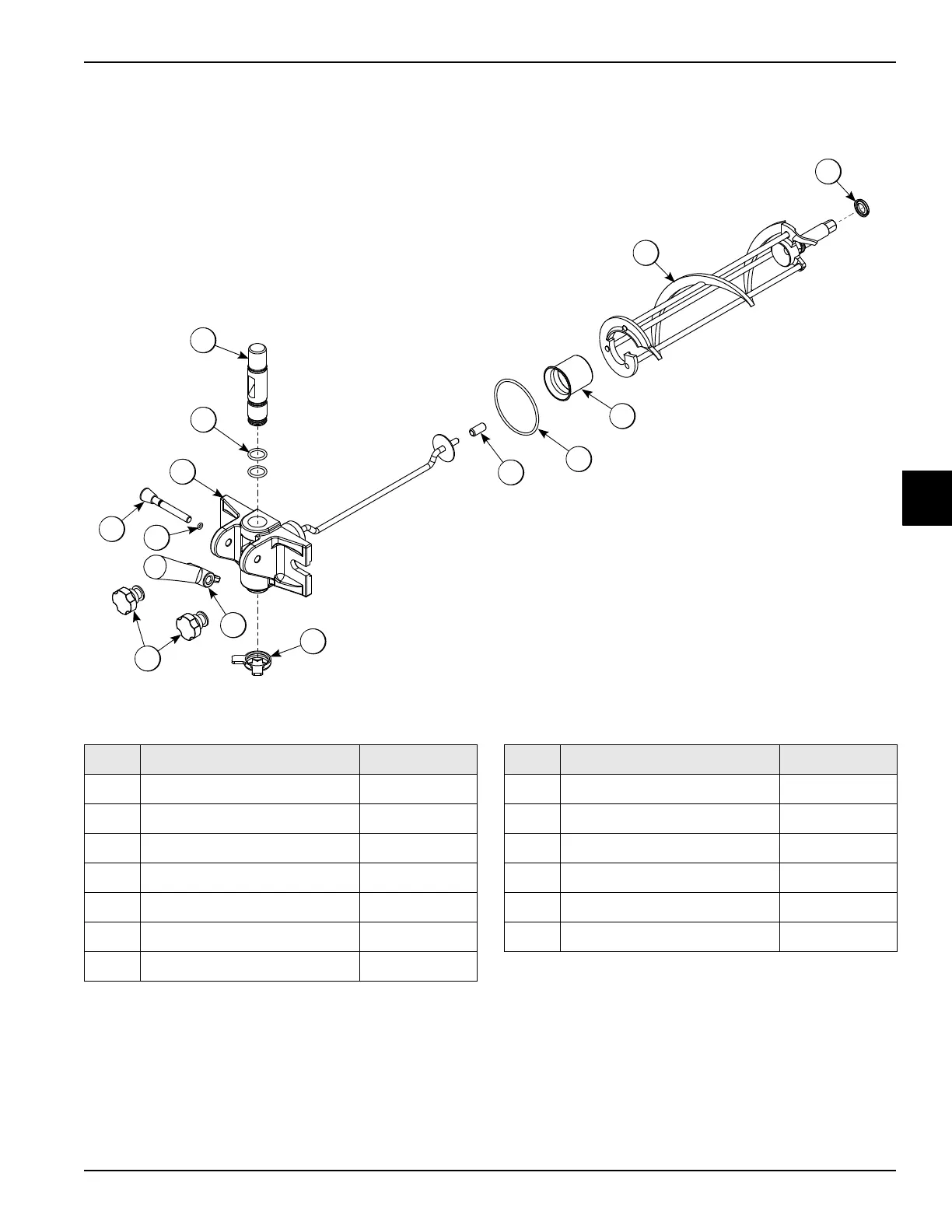

Beater Door Assembly Model C152
Figure 4-5
1
2
3
4
5
8
10
12
13
9
11
7
6
Item Description Part No.
1 Valve-Draw 024763-SP1
2 O-ring-7/8 OD x.103W 014402
3 Door A.-3SPT 1.5qt VALOX X86373-SER
4 Pin A.-Pivot-Short X86374
5 O-ring-5/16 OD x.070W 016272
6 Handle-Draw 085615
7 Nut-Stud 034829-SP
Item Description Part No
8 Cap-Design 1.010"ID-6 PT. 014218
9 Bearing-Guide 014496
10 O-ring-2-3/4 OD x .139W 019998
11 Bearing-Front 023262
12 Beater A. X24689
13 Seal-U-Cup 080534
