PARTS

Model C152 & C161

Parts

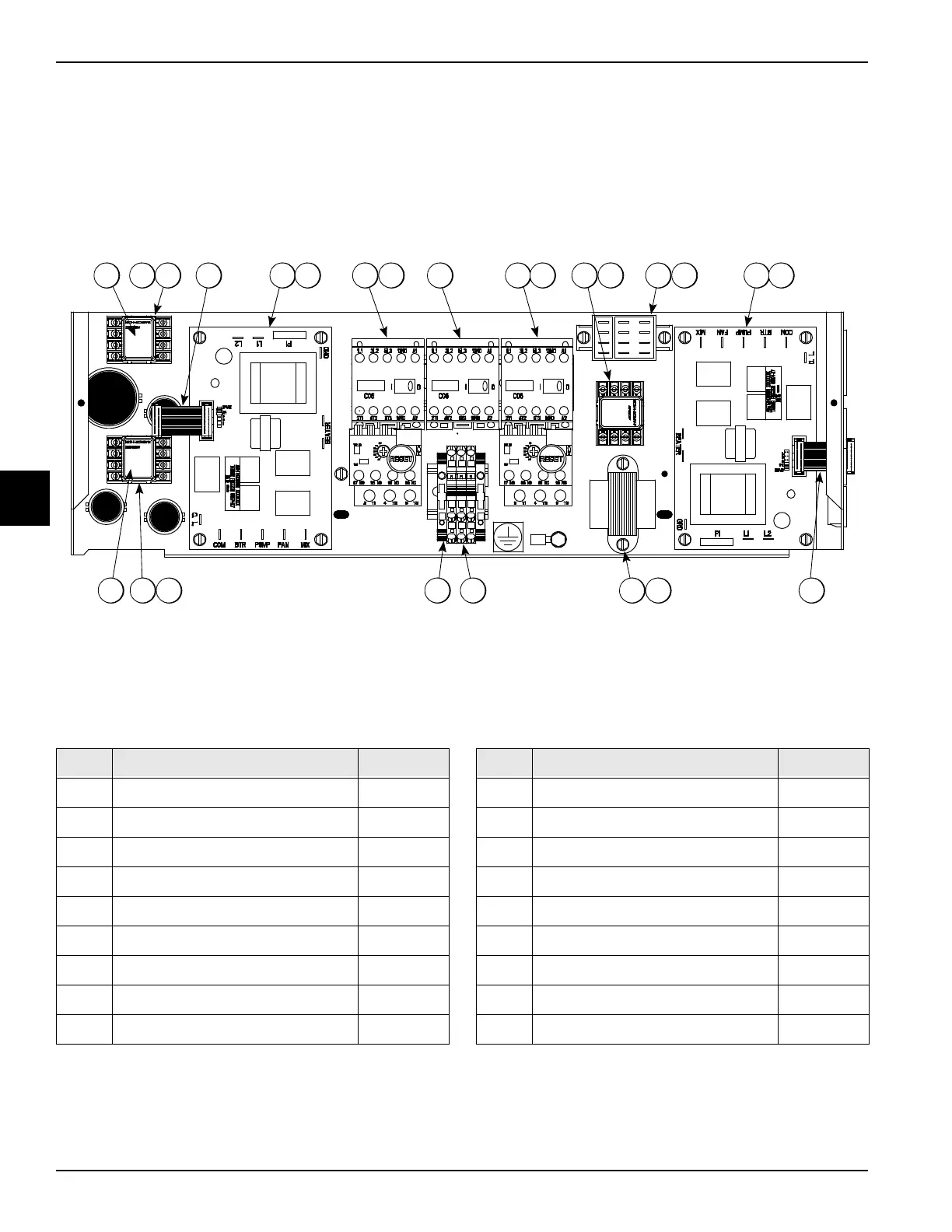

X85977-76 Control A. (Model C161)

Figure 4-10

*Not Shown

**Part of 069278-27 Harness

1 32 4 5 6 7 8 7 87 9 3 10 11 5 6

1 2 3 14 13 12 11 4

Item Description Part No.

1 Relay-DPDT 100UA to 7A 052111-76

**2 Socket-Relay-for Use w/052111 052112

3 Screw-6X5/16 SLTD Round 013646

4 Cable-Ribbon-PWR/Relay 069473-60

5 Board-Power-GEN 1 & 2 X69574-SER

*5a Fuse-.063A-250V-5x20mm 051272

6 Screw-6-32x5/8 UNSLTD 041363

7 Contactor 230VAC 1PH 055248-27

8 Overload-Thermal-2P 055249-27G

Item Description Part No.

9 Relay-DPDT 100UA - 7A 1/8 052111-03

10 Block-Terminal 2P .25 SPD 069015

11 Screw-8X1/4 SLTD Hex 009894

**12 Trans.-120/208/240V 081783-27

13 Block-Terminal 3 Pole Green 080968

14 Plate-End Terminal Block 080969

* Harness-Wire-Cntrl Box 069129-27

* Harness-Wire-Main 069219-27

* Harness-Trans/Relay 069278-27
