Taylor C152 Service Manual

4-12
PARTS
Model C152 & C161
Parts
4

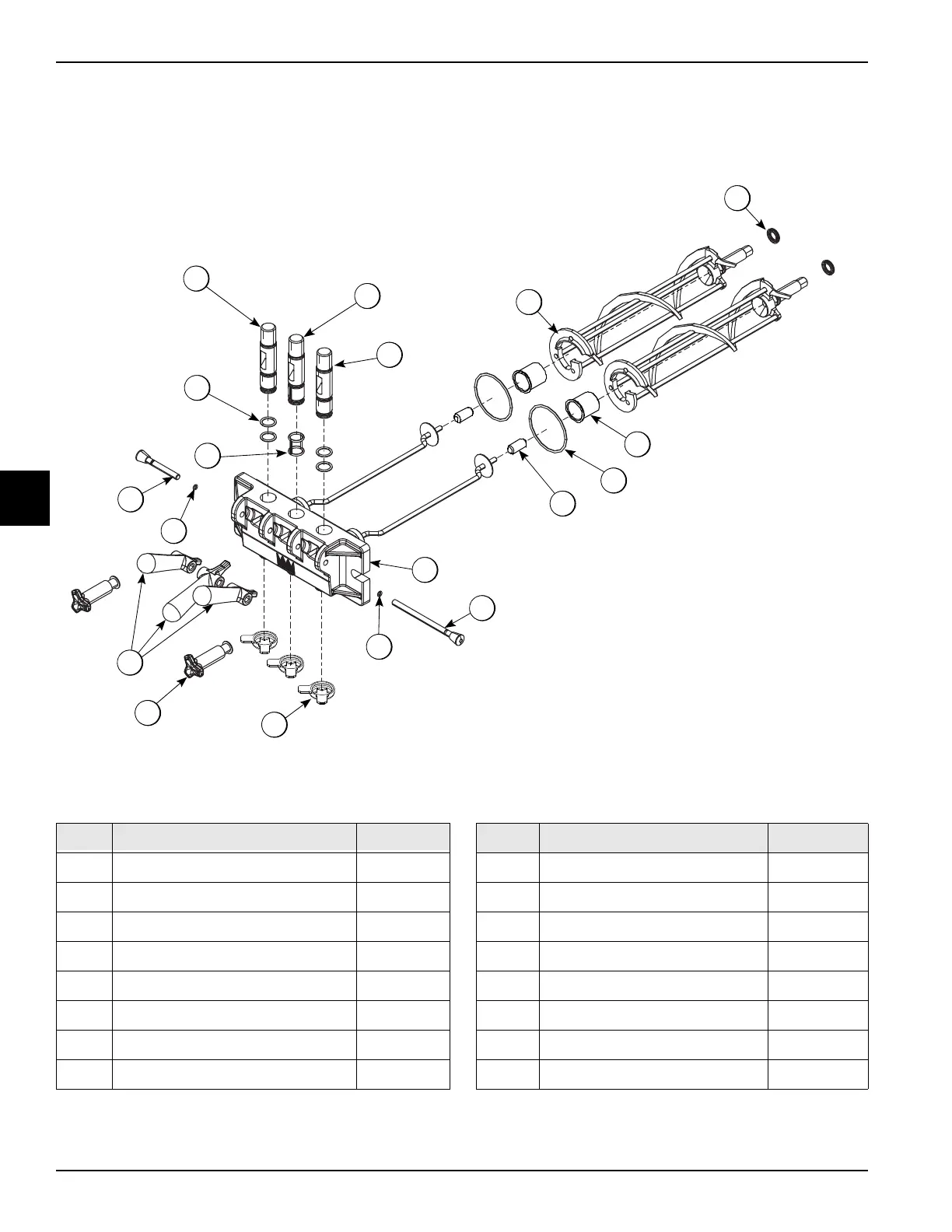

Beater Door Assembly Model C161
Figure 4-6
1
2
1
3
11
5
6
7
8
9
6
10
4
13
15
16
12
14
Item Description Part No.
1 Valve-Draw 024763-SP1
2 O-ring-7/8 OD x.103W 014402
3 Seal-Draw Valve *Small H-ring* 030930
4 Door A.-3SPT 1.5qt Valox X56906SER3
5 Pin A.-Pivot -Short* X38539
6 O-ring-5/16 OD x.070W 016272
7 Handle-Draw 085615
8 Nut-Stud 056802-SP
Item Description Part No.
9 Cap-Design 1.010"ID-6 PT. 014218
10 Pin A.-Pivot -Long* X38538
11 Valve-Draw-Center 031164-SP
12 Bearing Guide 014496
13 O-ring-2-3/4 OD x.139W 019998
14 Bearing Front 023262
15 Beater A.- X24689
16 Seal-U-Cup 080534
