Model C712 Operator Parts Identification

060308

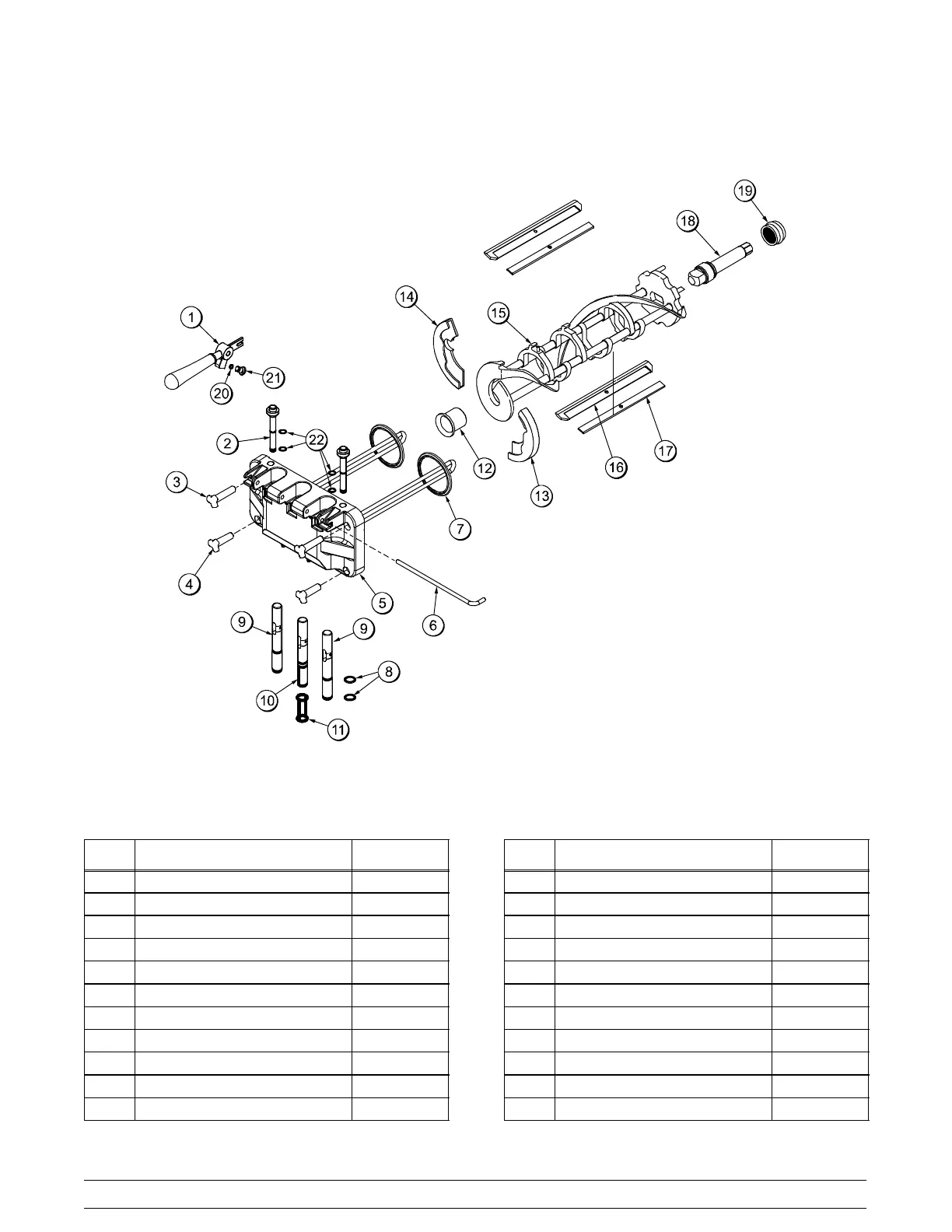

Model C712 Door and Beater Assembly

Figure 2

ITEM DESCRIPTION PART NO.

1 HANDLE A.-DRAW-WELDED X56421-1

2 PLUG-PRIME TWIN 059936

3 NUT-STUD-BLACK 3.250 L 058765

4 NUT-STUD-BLACK 2.563 L 058764

5 DOOR A.-3SPT*LG BAFw/PRG X59921-SER

6 PIN-HANDLE-TWIN 059894

7 GASKET-DOOR HT 4”-DOUBLE 048926

8 O-RING-7/8 OD X .103 W 014402

9 VALVE A.-DRAW X59843

10 VALVE A.-DRAW CENTER X62218

11 SEAL-DRAW VALVE 034698

ITEM DESCRIPTION PART NO.

12 BEARING-FRONT-SHOE 050348

13 SHOE-FRONT HELIX *REAR 050346

14 SHOE-FRONT HELIX *FRONT 050347

15 BEATER A.-3.4QT-1 PIN X46231

16 BLADE-SCRAPER-PLASTIC 046235

17 CLIP-SCRAPER BLADE 7.00 046236

18 SHAFT-BEATER 032564

19 SEAL-DRIVE SHAFT 032560

20 O-RING-1/4 OD X .070W 50 015872

21 SCREW-ADJUSTMENT-5/16-24 056332

22 O-RING 1/2 OD X .070 024278
