Model C712Operating Procedures

Step 20

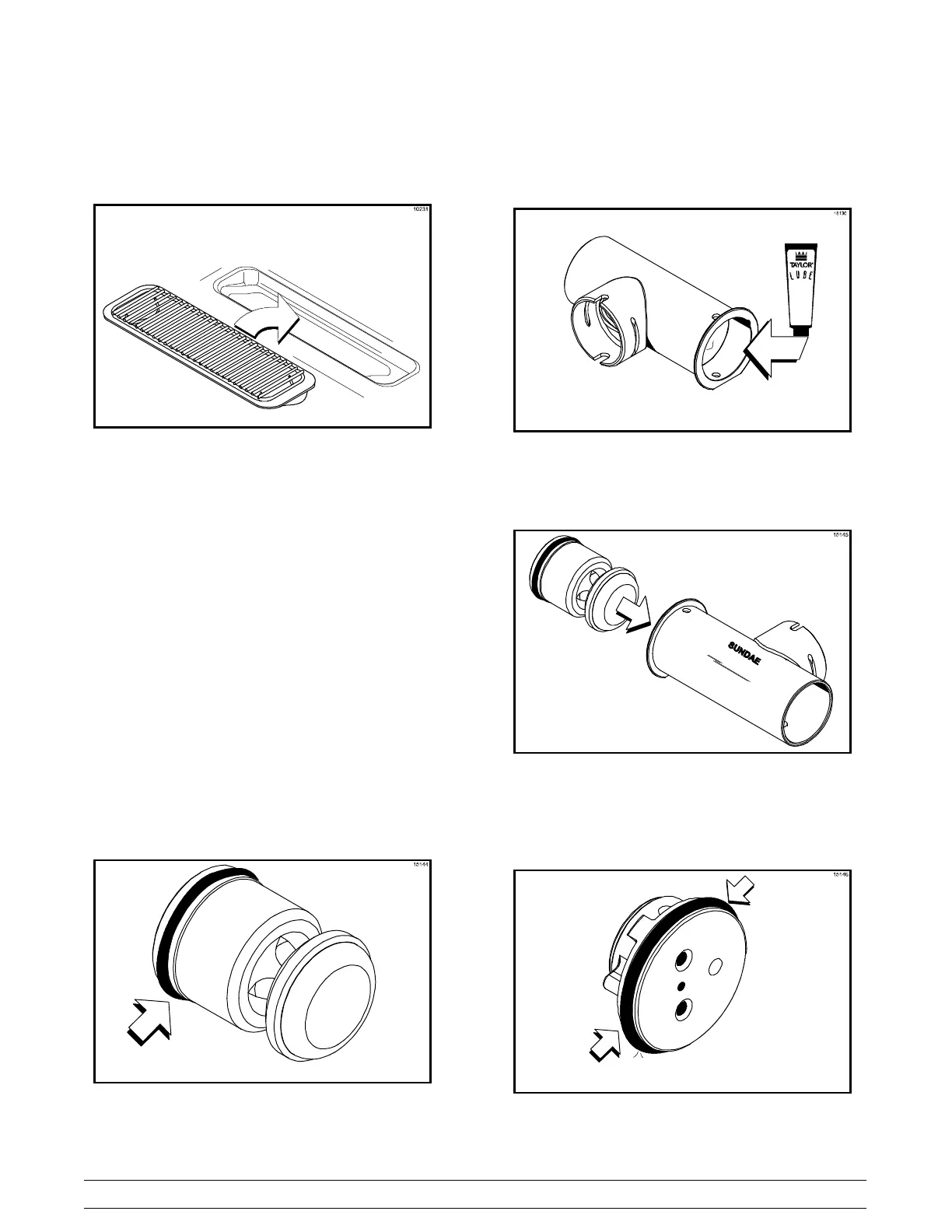

Install the front drip tray and splash shield under the

door spouts. (See Figure 49.)

Figure 49

Mix Pump Assembly

Step 1

Inspect the rubber pump parts. O-rings and gasket

must be in 100% good condition for the pump and

entire machine to operate properly. The o-rings and

gasket cannot properly serve their intended function

if nicks, cuts, or holes in the material are present.

Replace any defective parts immediately and

discard the old.

Step 2

Assemble the piston. Slide the red o-ring into the

groove of the piston. DO NOT lubricate the o-ring.

(See Figure 50.)

Figure 50

Step 3

Apply a thin layer of lubricant to the inside of the

pump cylinder at the retaining pin hole end. (See

Figure 51.)

Figure 51

Step 4

Insert the piston into the retaining pin hole end of the

pump cylinder. (See Figure 52.)

Figure 52

Step 5

Assemble the valve cap. Slide the o-ring into the

groove of the valve cap. DO NOT lubricate the

o-ring. (See Figure 53.)

Figure 53
