Model C712Operator Parts Identification
121022

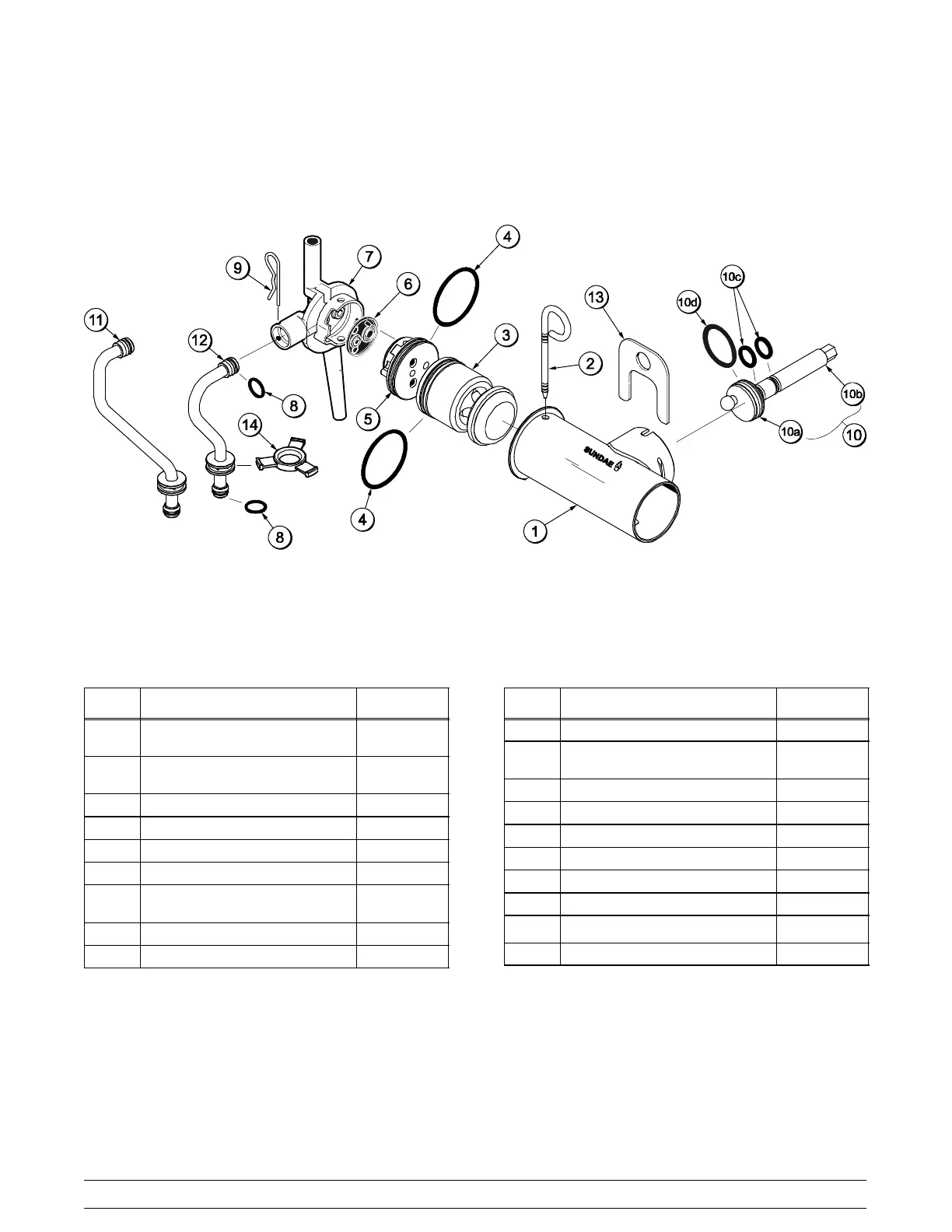

X57029-XX Pump A. - Mix Simplified
Figure 3
ITEM DESCRIPTION PART NO.
1-7 PUMP ASSEMBLY - MIX
SIMPLIFIED SOFT SERVE
X57029-14*
1 CYLINDER-PUMP-HOPPER-
SOFT SERVE
057943
2 PIN-RETAINING X55450
3 PISTON 053526
4 O-RING 2-1/8” OD - RED 020051
5 CAP-VALVE 056874-14*
6 GASKET - SIMPLIFIED PUMP
VALVE
053527
7 ADAPTOR - MIX INLET 054825
8 O-RING - 11/16 OD - RED 016132
ITEM DESCRIPTION PART NO.
9 PIN - COTTER 044731
10 SHAFT A.-DRIVE-MIX PUMP-
HOPPER
X41947
10a CRANK-DRIVE 039235
10b SHAFT-DRIVE 041948
10c O-RING - DRIVE SHAFT 048632
10d O-RING 1-3/4 008904
11 TUBE A.-FEED-LEFT X59808
12 TUBE A.-FEED-RIGHT X59809
13
CLIP-RETAINER-MIX PUMP
044641
14 RING-CHECK .120 OD 056524
*NOTE: THE STANDARD PUMP X57029-XX IS -14.
OVERRUN CAN BE CHANGED HIGHER OR LOWER
BY SUBSTITUTING THE CAP (056874-XX) WITH
CAPS AVAILABLE -1 THROUGH -20. THE HIGHER
THE DASH (-) NUMBER, THE HIGHER THE
OVERRUN.
