Model C712Operating Procedures

080908

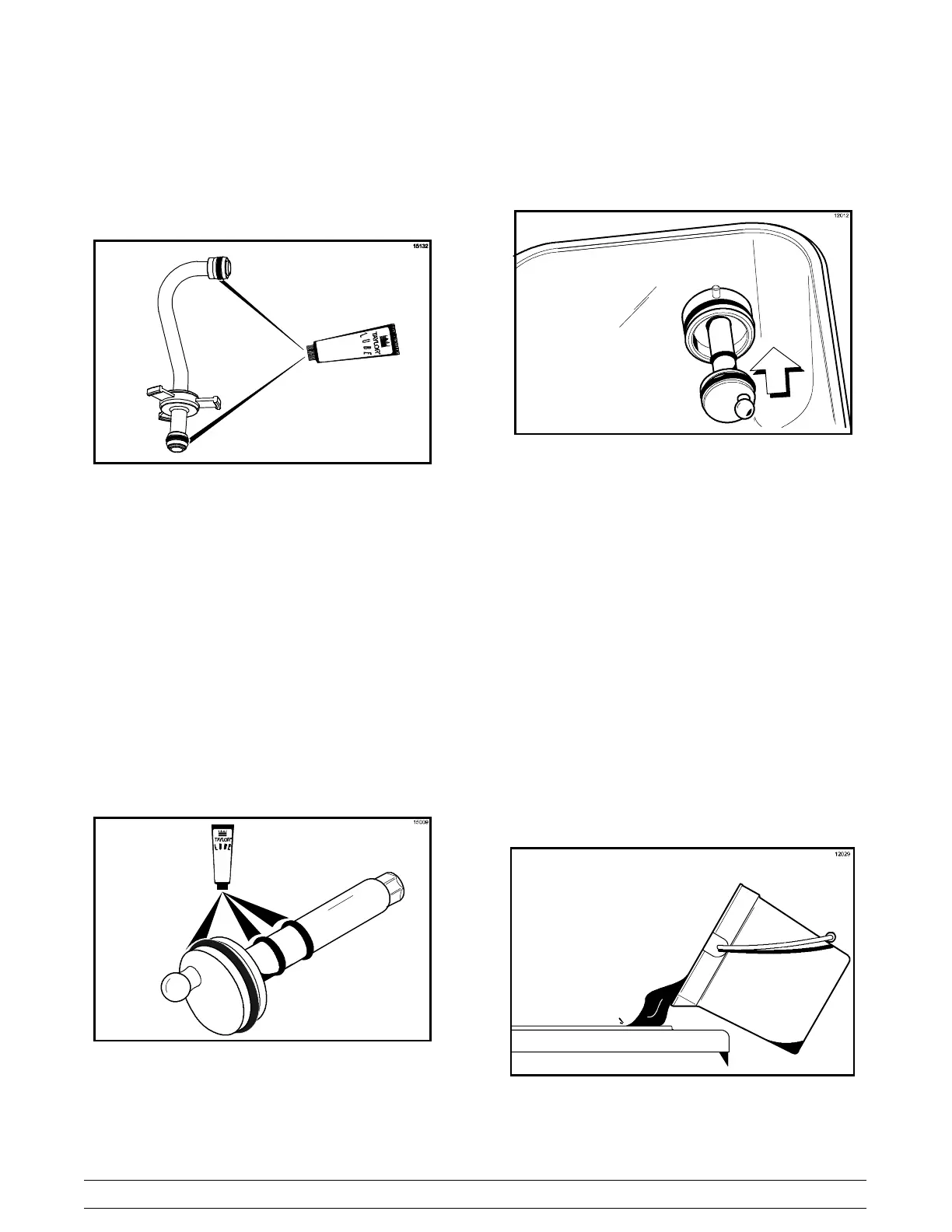

Step 11

Install one red o-ring on each end of the mix feed

tube, and thoroughly lubricate. (See Figure 59.)

Figure 59

Step 12

Lay the pump assembly, pump clip, cotter pin, and

mix feed tube in the bottom of the mix hopper for

sanitizing.

Step 13

Slide the large black o-ring and the two smaller

black o-rings into the grooves on the drive shaft.

Thoroughly lubricate the o-rings and shaft. DO NOT

lubricate the hex end of the shaft. (See Figure 60.)

Figure 60

Step 14

Install the hex end of the drive shaft into the drive

hub at the rear wall of the mix hopper.

(See Figure 61.)

Figure 61

Note: For ease in installing the pump, position the

ball crank of the drive shaft in the 3 o'clock position.

Repeat these steps for the other side of the

machine.

Sanitizing

Step 1

Prepare a pail of approved 100 PPM sanitizing solu-

tion (examples: 2-1/2 gal. [9.5 liters] of Kay-5R or

2 gal. [7.6 liters] of Stera-SheenR). USE WARM

WATER AND FOLLOW THE MANUFACTURER'S

SPECIFICATIONS.

Step 2

Pour sanitizing solution over all the parts in the

bottom of the mix hopper and allow it to flow into the

freezing cylinder. (See Figure 62.)

Figure 62
