INTRODUCTION
Models C712/C713
Introduction
1

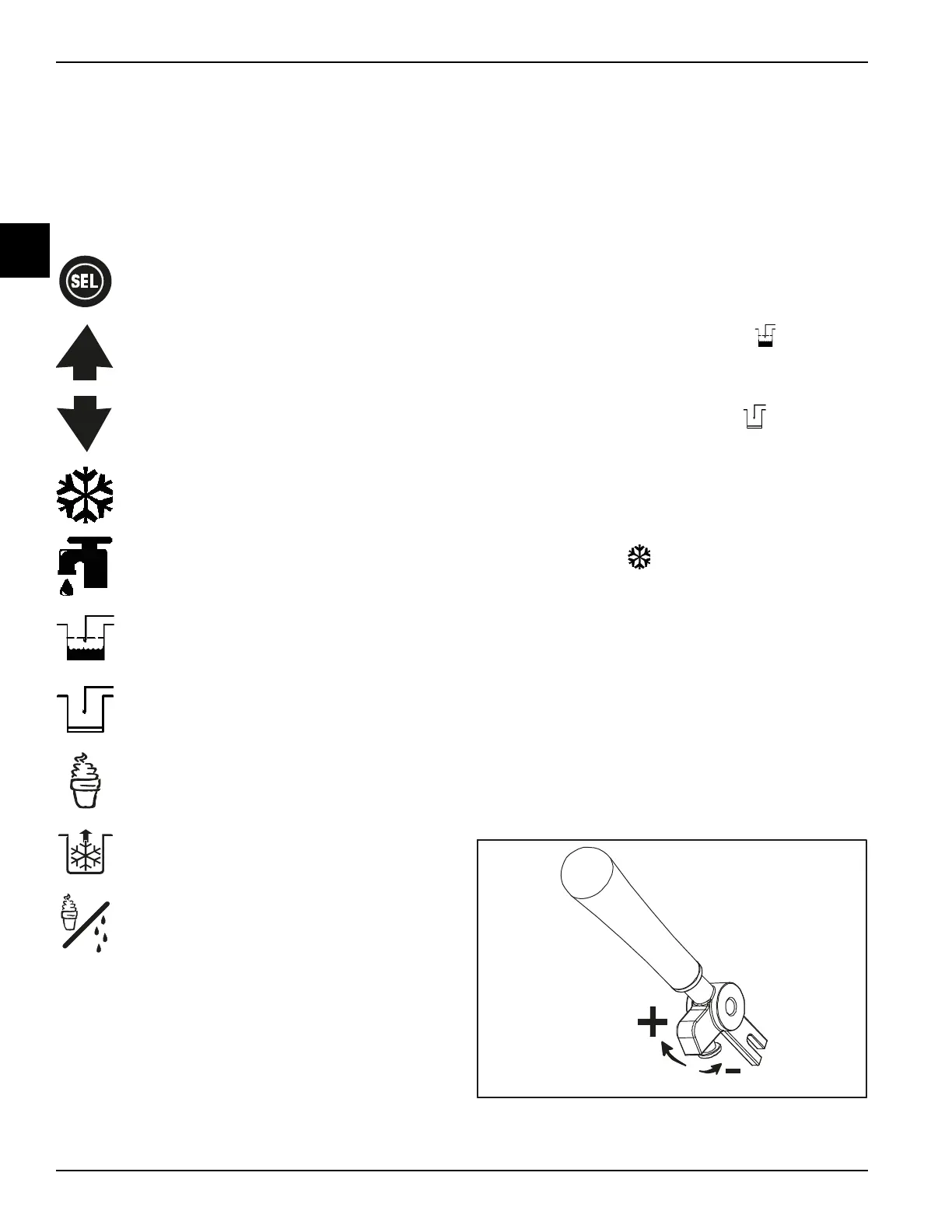

Symbol Definitions
To better communicate in the International arena,
symbols have replaced words on many of our operator
switches, function, and fault indicators. Your Taylor
machine is designed with these international symbols.
The following chart identifies the symbol definitions.
= SELECT
= UP ARROW
= DOWN ARROW
= AUTO
= WASH
= MIX LOW
= MIX OUT
= MENU DISPLAY
= MIX PUMP (C712 ONLY)
= STANDBY
Power Switch
When placed in the ON position, the power switch allows
control panel operation.
Liquid Crystal Display (LCD)
The liquid crystal display (LCD) is located on the front
control panel. During normal operation, the display is
blank. The display is used to show menu options and
notifies the operator if a fault is detected. On international
models, the display will indicate the temperature of the
mix in the hopper.
Indicator Lights
MIX LOW - When the Mix Low indicator is
illuminated, the mix hopper has a low supply of mix and
should be refilled as soon as possible.
MIX OUT - When the Mix Out indicator is illuminated,
the mix hopper has been almost completely exhausted
and has an insufficient supply of mix to operate the
freezer. At this time, the Auto mode is locked out and the
freezer will be placed in the Standby mode. To initiate the
refrigeration system, add mix to the mix hopper and
touch the Auto button
.The freezer will automatically
begin operation.
Adjustable Draw Handle
This machine features an adjustable draw handle to
provide the best portion control, giving a better,
consistent quality to your product and controlling costs.
The draw handle should be adjusted to provide a flow
rate of 5 oz. to 7-1/2 oz. (142 g to 213 g) of product by
weight per 10 seconds. To increase the flow rate, turn
the screw clockwise, and counterclockwise to
decrease the flow rate. (
See Figure 1-4.)
