Taylor C712 Service Manual

2-14
CONTROLS
Models C712/C713
Controls
2
Pump Operation
The pump operates under the following conditions:
Pump Button
When the Pump button is touched, the pump is active by
itself or with the Wash mode of operation.
Mix Pump
The mix pump will be active for 30 seconds whenever the
Auto mode is entered. If a mix out condition forces the
machine into the Standby mode of operation, the mix
pump will not be active.
Mix Pump Draw Timer
During the Auto mode, the mix pump will operate for 
5 to 30 seconds after every draw of product. The factory
setting is 10 seconds.

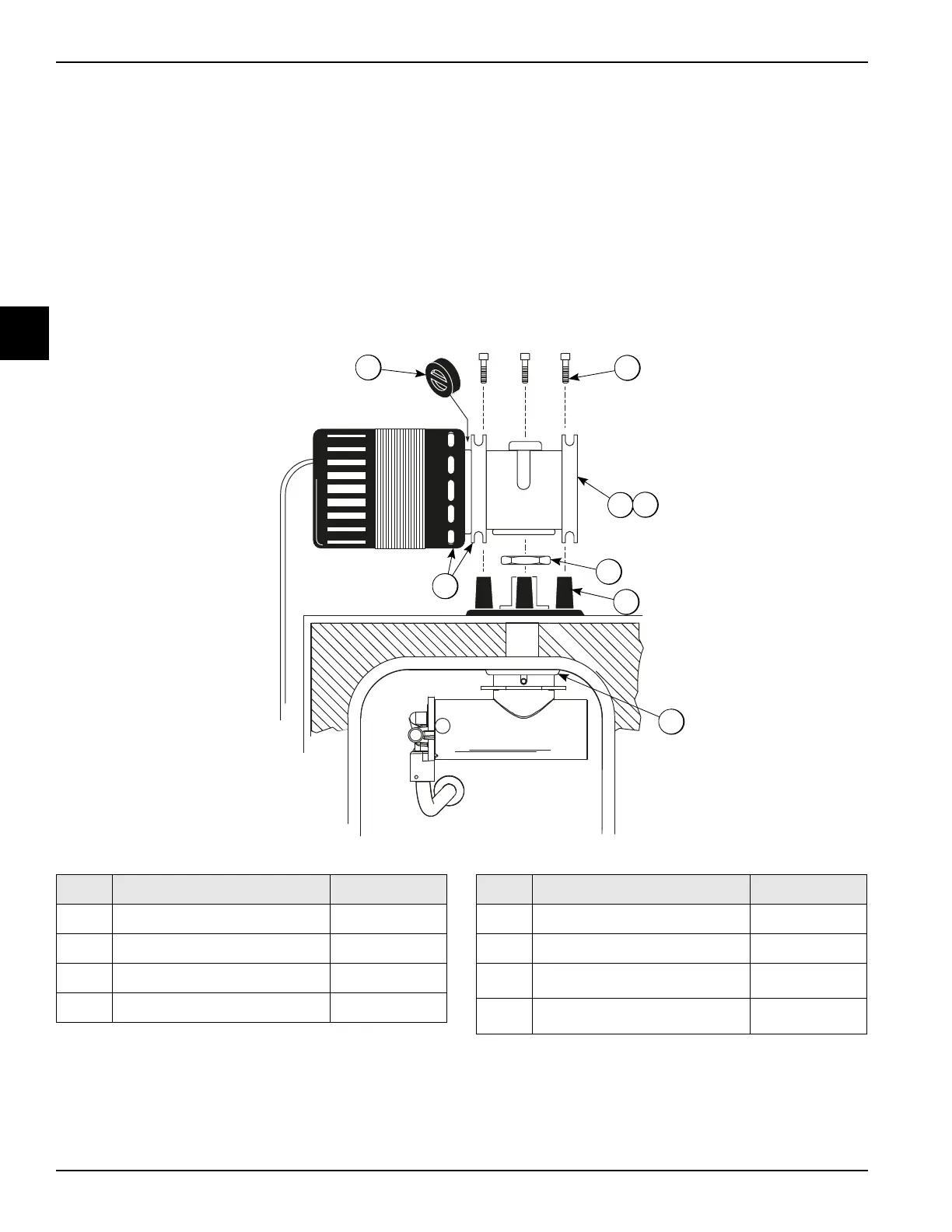

Figure 2-56
1
8
2
3
4
5
7
6
Item Description Part No.
1 Screw-1/4-20x-3/4 Socket 020128-2
2 Seal-Motor Reducer Input Shaft 048836
3 Seal-Motor Reducer- Output Shft 048837
4 Nut-Pump Sleeve 036933
Item Description Part No.
5 Mount-Motor 036934
6 Sleeve A.-Mix Pump X44761
7 Motor-Reducer 32 RPM 036955-34
8 Coupling-Motor-Flexible 047936
