PARTS
4-21
Models C712/C713
Parts
4

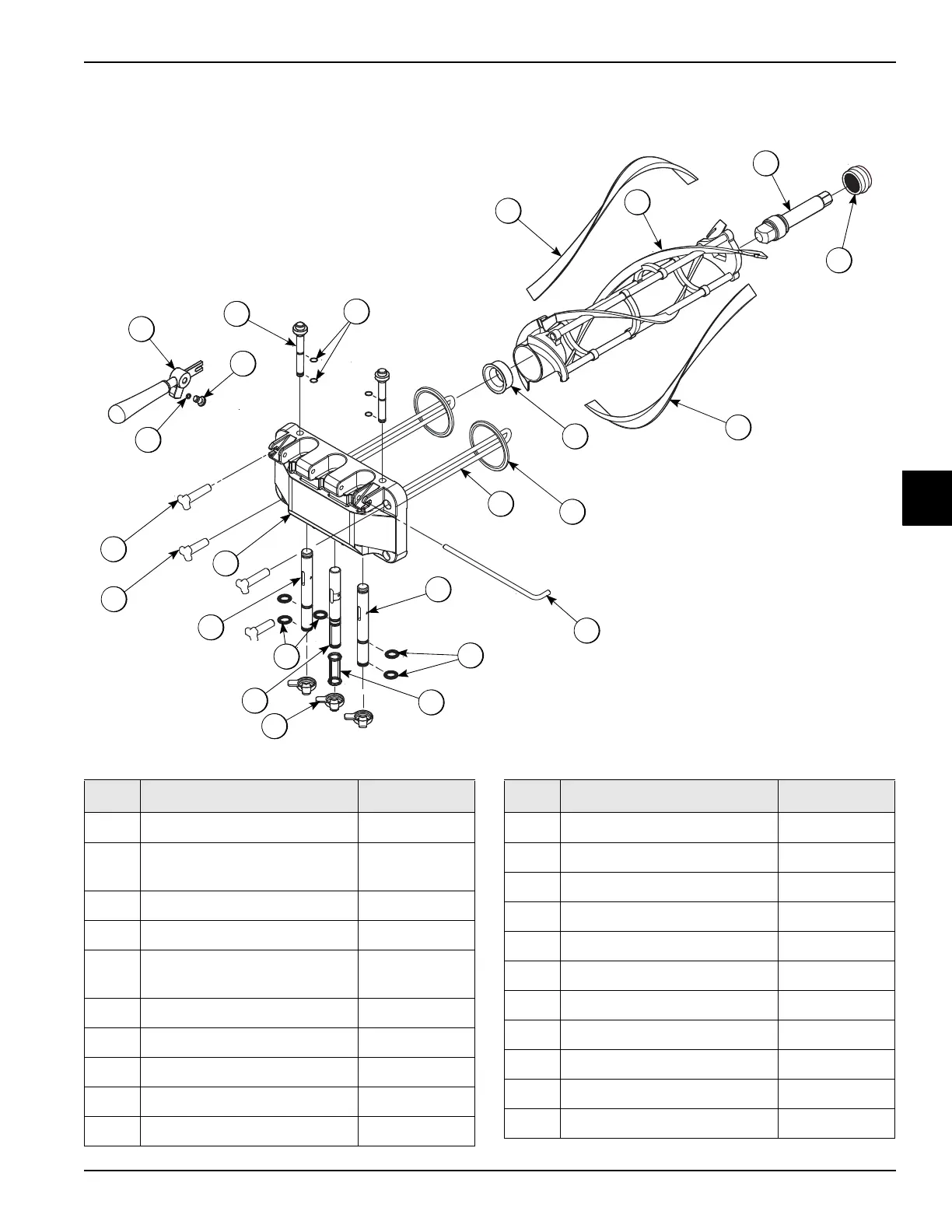

Door and Beater Assembly (Model C713)
Figure 4-11
1
2
4
3
5
17
18
19
20
17
16
15
8a
14
9
13
12
11
10
13
9
8
7
6
Item Description Part No.
1 Handle A.-Draw-Welded X56421-1
2 O-ring-1/4 OD x .070W 50 Duro
(25 to Bag)
015872
3 Screw-Adjustment-5/16-24 056332
4 Plug-Prime Twin 059936
5 O-ring-1/2 OD x 0.70 W (50 to
Bag)
024278
6 Nut-Stud-Black 3.250 Long 058765
7 Nut-Stud-Black 2.563 Long 058764
8 Door A.-3SPT*LG BAF*W/PRG X59921-SER
8a Baffle A.-Long 4 IN w/Rad X50882
9 Valve A.-Draw X69615
Item Description Part No.
10 Valve A.-Draw Center X62218
11 Cap-Design 1.010" ID - 6 PNT 014218
12 Seal-Draw Valve 034698
13 O-ring-7/8 OD x .103W-SIL 083693
14 Pin-Handle-Twin 059894
15 Gasket-Door HT 4"-Double 048926
16 Bearing-Front 050216
17 Blade-Scraper-Plastic 035174
18 Beater A.-3.4QT-Helicore X31761
19 Shaft-Beater 032564
20 Seal-Drive Shaft 032560
