PARTS
4-27
Models C712/C713
Parts
4

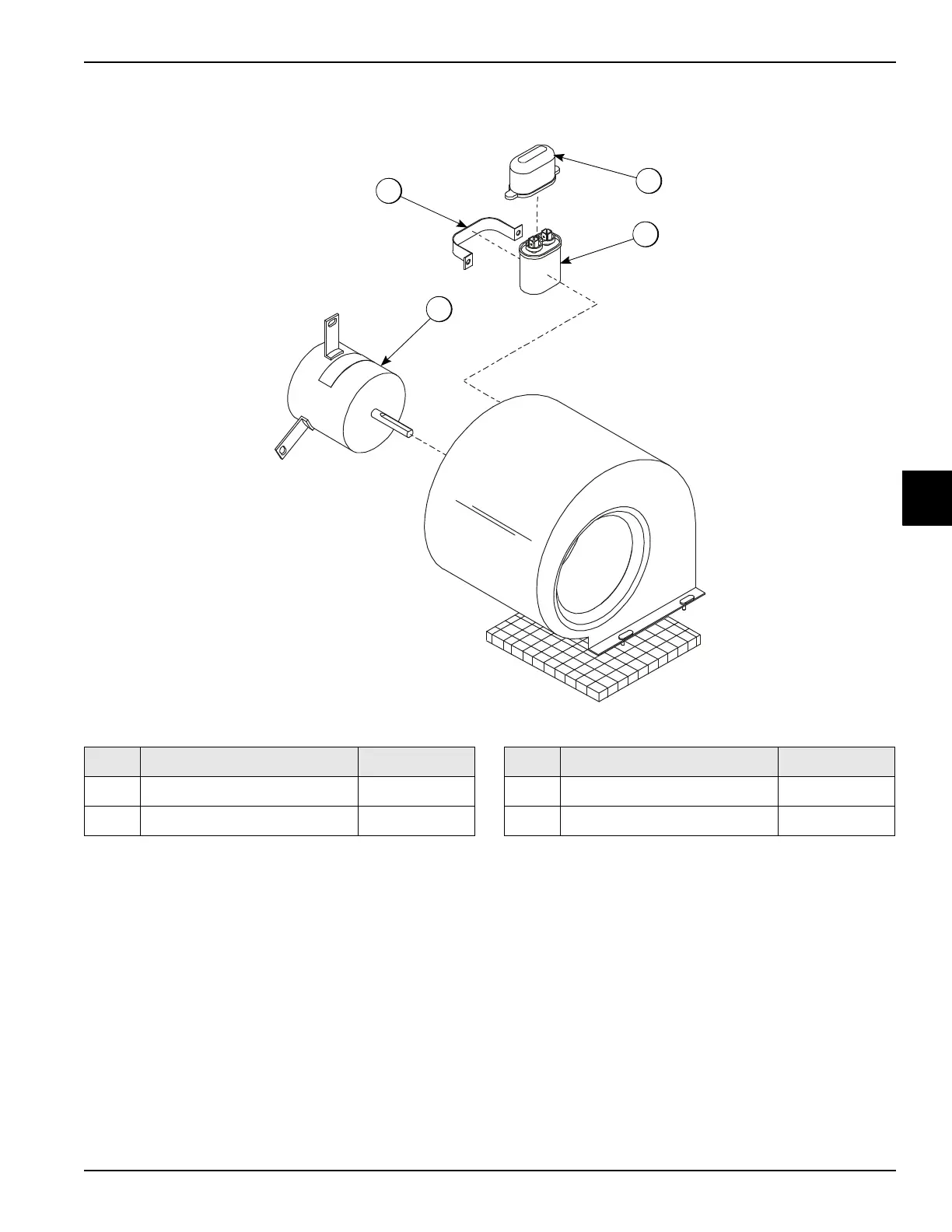

Blower
A. X53725-27 (Model C712 & C713)
Figure 4-17
4
3
2
1
Item
Descrip
tion
Part No.
1
Motor-Fan 208-230V
50/60 HZ
053481-27
2
Bracket-Capacitor 1-1/4X2-1/16
031205
Item
Descriptio
n
Part No.
3
Boot-Capacitorinsulatin
g
031314
4
Capacitor-Run 7.5UF/370V
034749
86
88
Table of Contents
Default Chapter
3
Table of Contents
3
Section 1: Introduction
5
Safety
6
Model C712 Specifications
8
Model C713 Specifications
10
Running Specifications
12
General Installation Instructions
13
Electrical Connections
14
Water Connections
15
Beater Rotation
16
Environmental Notices
17
Compressor Warranty Disclaimer
18
User Interface
19
Indicator Lights
20
Power Switch
20
Section 2: Controls
23
Universal Control Programming
24
Power Interrupt
35
Pump Operation
36
Timers
37
Beater Stir Cycles
38
Setting Viscosity
39
Jumper Pin Charts
40
Control Overview - UVC4
42
Universal Control Board - UVC4
43
C712/C713 UVC4 Update Instructions
47
Refrigeration Schematic
48
Refrigeration System Components
49
Section 3: Troubleshooting
51
General Troubleshooting Guide
52
Electrical Troubleshooting Guide
55
C712/C713 Electrical Troubleshooting Guide
56
Pump Style Freezer Troubleshooting
57
Bacteria Troubleshooting
58
Section 4: Parts
61
Parts Warranty Explanation
62
Model C712 Exploded View
63
Operator Parts (Model C712)
66
Model C713 Exploded View
68
Operator Parts (Model C713)
71
Control A. - X67560-27 (Model C712)
73
Control A. - X67561-27-(Model C713)
75
Box A.-Cap & Relay - X81081-27 (Model C713/Copeland)
78
Pump A.-MIX Simplified - X57029- (Model C712)
79
Door and Beater Assembly (Model C712)
80
Door and Beater Assembly (Model C713)
81
Plate A.-Dec (Model C712)
82
Plate A.-Dec (Model C713)
83
Rail-Syrup - X63883-27 (Optional)
84
Switch A.-Dual Lever - X69838 (Model C712 & C713)
85
Actuator A.-Draw Switch - X69835 (Model C712 & C713)
86
Blower A. X53725-27 (Model C712 & C713)
87
Condenser A. - X68077-27G (Model C712 & C713)
88
Accessories
89
Brushes (Model C712 & C713)
90
Section 5: Parts List
91
Section 6: Wiring Diagrams
111
