OPERATOR PARTS IDENTIFICATION
4-3
Model C722
Operator Parts Identification
4

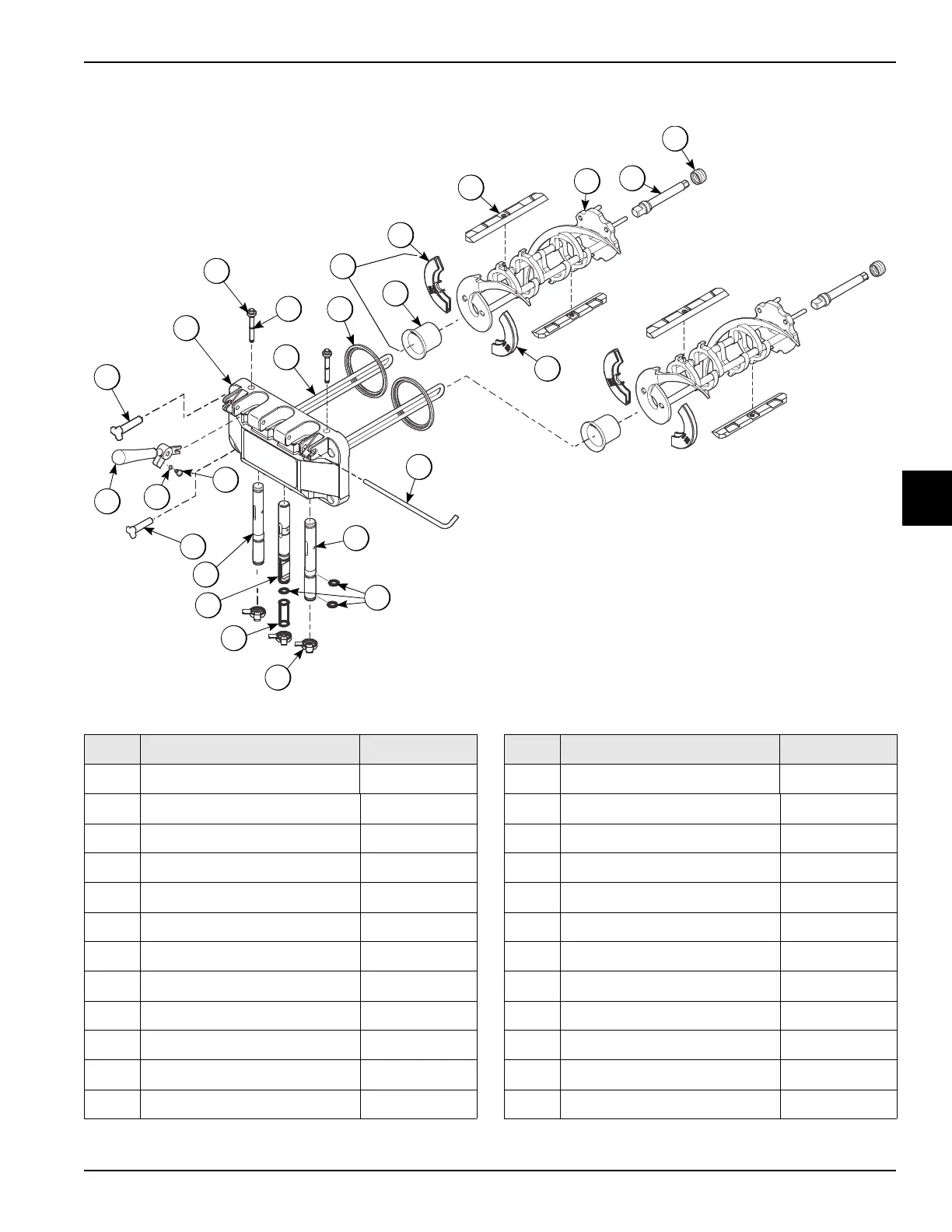

Door and Beater Assembly
Figure 4-2
*Not available separately. Order X50350 kit.
1
20
4
1a
2
3a
3b
5
6
7
8
19
16
17
18
15
10
14
13
12
11
10
9
3c
3
Item Description Part No.
1 Door A.-SH BAF-w/PRG X68889-SER
1a Baffle A.-Short 4” X50883
2 Gasket-Door HT 4"-Double 048926
3 Kit A.-Beater-Front Shoes-Bearing X50350
3a Bearing-Front Shoe *See Note
3b Shoe-Front Helix-Front *See Note
3c Shoe-Front Helix-Rear *See Note
4 O-ring-1/2OD X .070W 024278
5 Blade-Scraper-Plastic 084978
6 Beater A.-2.8QT-1 Pin X80291
7 Shaft-Beater 081707
8 Seal-Drive Shaft 032560
Item Description Part No
9 Pin-Handle-Twin 059894
10 Valve A.-Draw X69615
11 O-ring-7/8 OD X .103W 083693
12 Cap-Design 1.010"ID-6 Point 014218
13 Seal-Draw Valve-Large H 034698
14 Valve A.-Draw-Center X62218
15 Nut-Stud-Black 2.563 Long 058764
16 Screw-Adjustment-5/16-24 056332
17 O-ring-1/4 OD X .070W 015872
18 Handle A.-Draw X56421-1
19 Nut-Stud-Black 3.250 Long 058765
20 Plug-Prime Twin 059936
