OPERATOR PARTS IDENTIFICATION
4-7
Model C722
Operator Parts Identification
4
Optional Carts

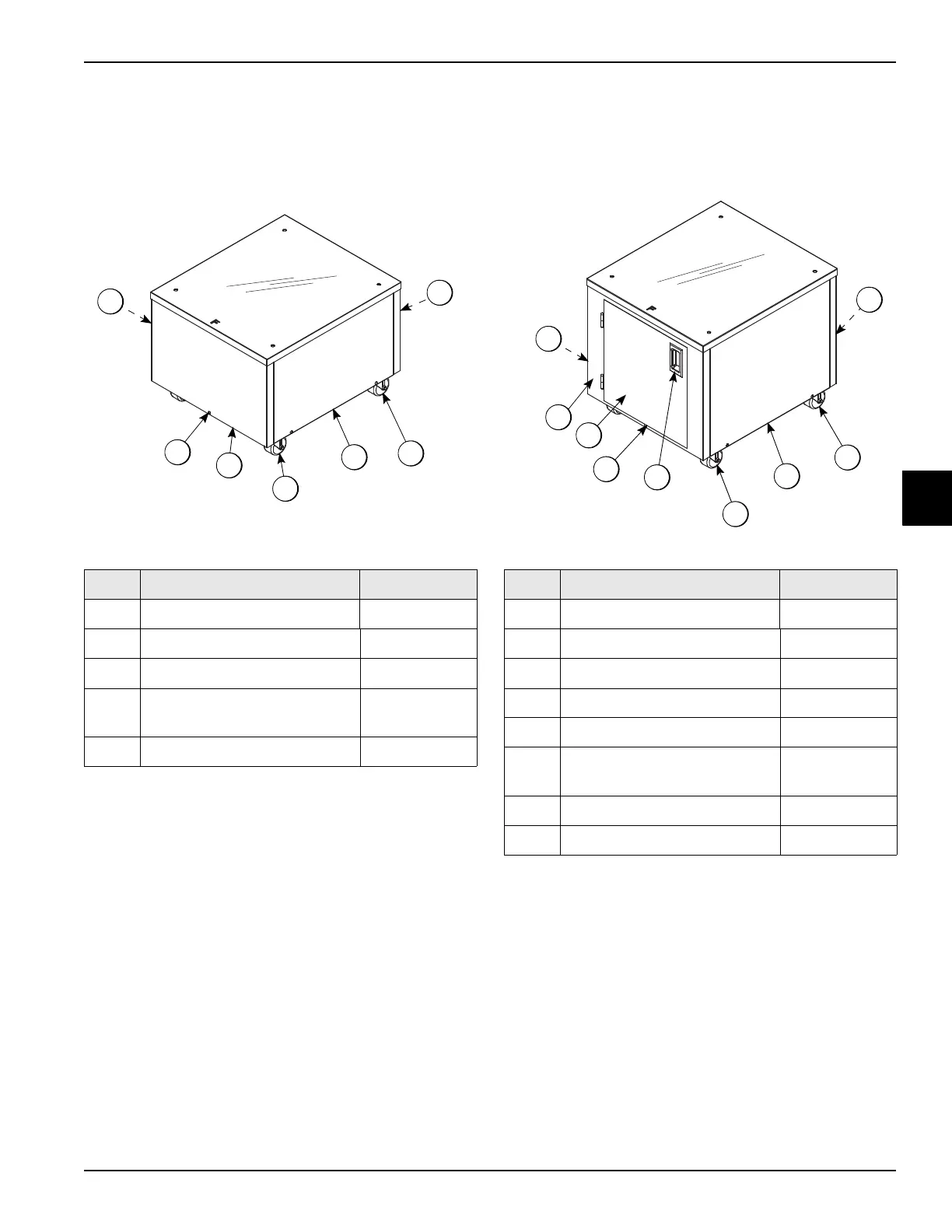

Figure 4-6
Note: This is an ADA-compliant height cart, not
equipped with a door.
Note: This is a standard-height cart with reversible
front door panel and rear panel.
3
4
3
2
1
4
2
6
7
1
2
3
4
5
6
5
Cart A.-ADA X69400
C20600-AFB
Cart A.-Std. X69425
C20600-000
Item Description Part No.
Cart A.-ADA X69400
1 Screw-10-32 X 1/2 SLTD 037734
2 Panel-Front/Rear-ADA 069402
3 Caster-3” SWV 3/4-10 Stem
w/Brake
030307
4 Panel-Side-Cart 069403
Item Description Part No.
Cart A.-STD X69425
1 Panel A.-STD Cart-Front X69426
2 Door A.-STD Cart X69295
3 Screw-10-32 X 1/2 SLTD TRUS 037734
4 Handle-STNLS Flush Pull 019043
5 Caster-3” SWV 3/4-10 Stem
w/Brake
030307
6 Panel-Side-STD Cart 069428
7 Panel-Rear-STD Cart 069429
