TC-Helicon VoiceLive User Manual

37

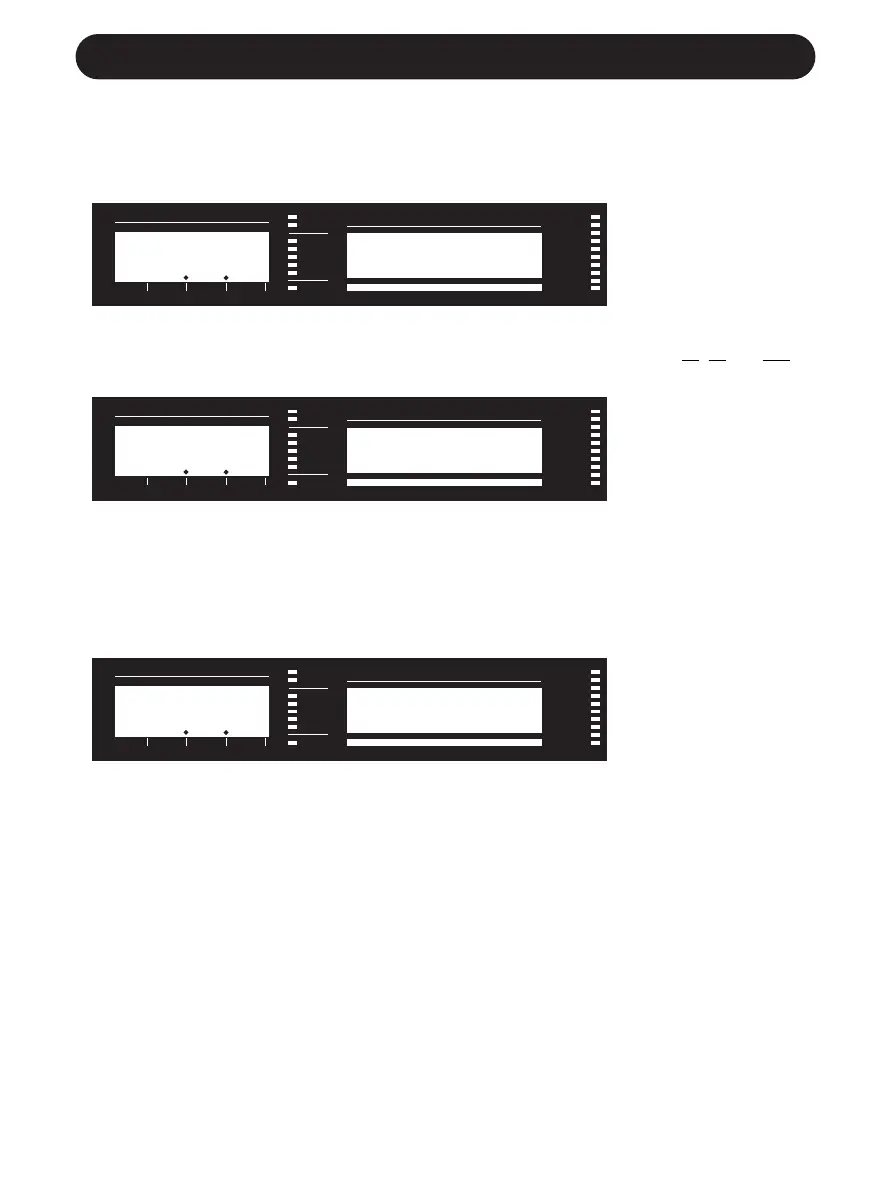

GLOBAL EDIT SCREENS
IO Edit Screens
IO edit screens provide parameters that relate to general audio settings. All IO parameters are
“global” in that they are not stored with the preset and are applicable to all presets. Press the
STORE Key to save IO parameters after editing.
EDIT 1 knob: L
INE INPUT GAIN
. Sets the input gain for the line input.
EDIT 2 knob: L
OW C
UT FILTER. 12dB per octave. Cutoff frequency options include 60, 80 and 120
Hz.
EDIT 1 knob: D
RY LEAD ON/OFF. Setting this to off removes the dry lead audio from the signal
path. This is useful when using the signal from the Mic Pass Thru connector for the
dry lead signal or when you want 100% wet output.
EDIT 2 knob: D
RY INSTRUMENT ON/OFF. Setting this to off removes the dry instrument audio from
the signal path. This allows VoiceLive to have an effects send from a mixing board
feed the instrument input.
EDIT 1 knob: L
EAD VOICE PANNING. This setting pans the lead voice.
EDIT 2 knob: INSTRUMENT PANNING
. This setting pans the instrument.
EDIT 3 knob: SYSTEM TUNING REFERENCE. This sets the overall tuning reference with respect to A-
440.
Input Clip
0 PPM dB
-5
-10
Out Clip
-20
-40
HARMONY
THICKEN
EFFECTS
PITCH CORR.
I/O
UTILITIES
MIDI IN
PROGRAM DISPLAY
HARMONY | CORRECTION | EFFECTS
VOICELIVE
VOICE 2
VOICE 4
VOICE 1
VOICE 3
LIMITMIC INGLOBAL FX EDITED
PRESET# HARMONY MODE ROOT SCALE/CHORD
LPan Ipan Tune
IO 3
R12 L52 440.0
Input Clip
0 PPM dB
-5
-10
Out Clip
-20
-40
HARMONY
THICKEN
EFFECTS
PITCH CORR.
I/O
UTILITIES
MIDI IN
PROGRAM DISPLAY
HARMONY | CORRECTION | EFFECTS
VOICELIVE
VOICE 2
VOICE 4
VOICE 1
VOICE 3
LIMITMIC INGLOBAL FX EDITED
PRESET# HARMONY MODE ROOT SCALE/CHORD
Lead Instrument
IO 2
Dry On Dry On
Input Clip
0 PPM dB
-5
-10
Out Clip
-20
-40
HARMONY
THICKEN
EFFECTS
PITCH CORR.
I/O
UTILITIES
MIDI IN
PROGRAM DISPLAY
HARMONY | CORRECTION | EFFECTS
VOICELIVE
VOICE 2
VOICE 4
VOICE 1
VOICE 3
LIMITMIC INGLOBAL FX EDITED
PRESET# HARMONY MODE ROOT SCALE/CHORD
LineIn LowCut
IO 1
12 80Hz

TC-Helicon VoiceLive Specifications

Analog Inputs

mic impedance	3.6/1.8 kOhm
line impedance	21/13 kOhm
line input level at 0 dBFS	24 dBu to 0 dBu

Analog Outputs

output impedance	40 Ohm
max output level balanced	20 dBu
max output level unbalanced	14 dBu

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

Supplementary

dimensions	11.1" x 10.25" x 3.5" (282 x 260 x 89 mm)
weight	5.9 lb. (2.7 kg)
mains voltage	100 to 240 VAC, 50 to 60 Hz (auto-select)
