Technics SA-GX910 User Manual

PFeParAatiONS cennuss

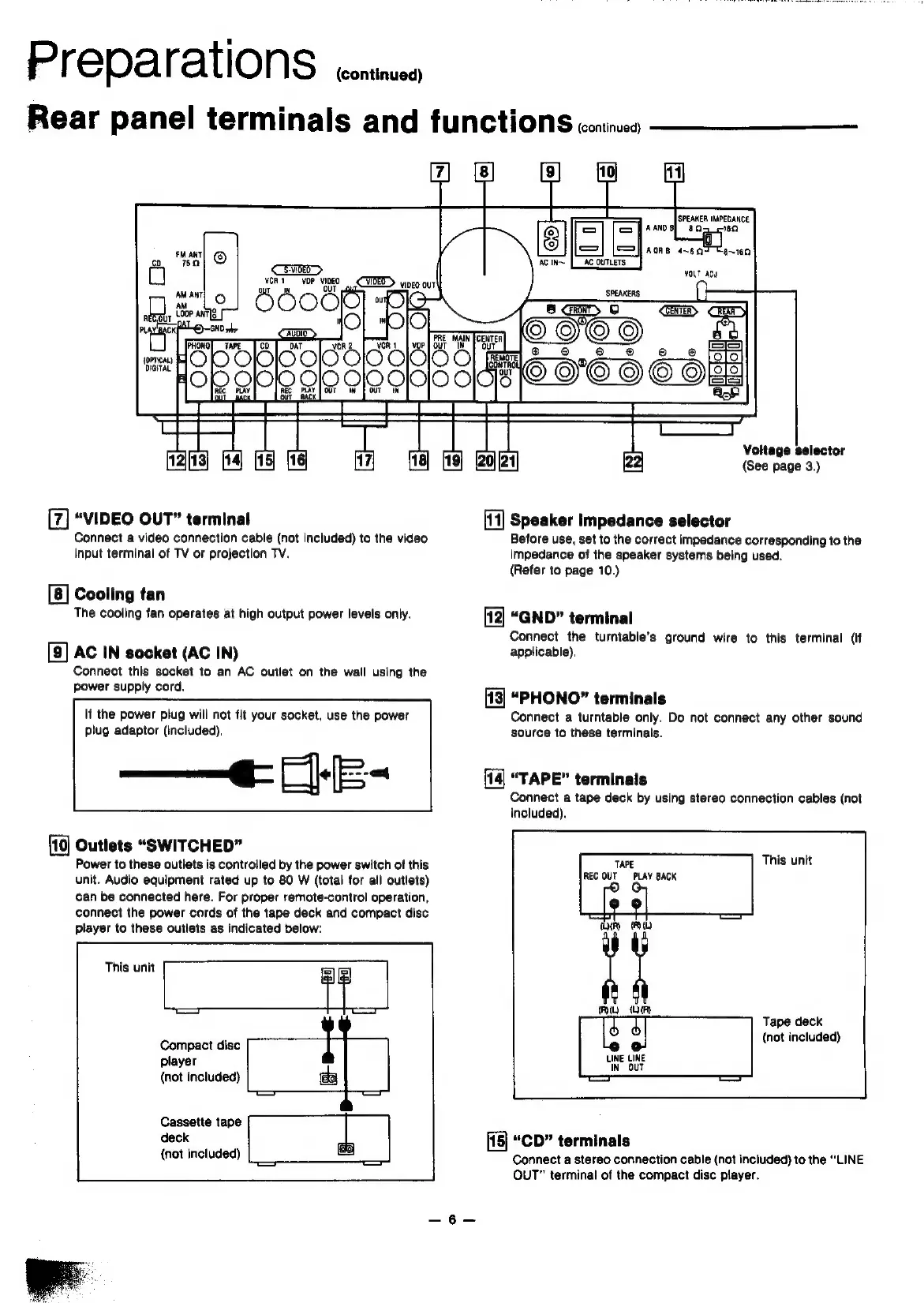

Rear panel terminals and functions cones
SPEAKER IMPEDANCE,
aga -6n
FM ANT|
co 750 ©
AM ANT
ia) {be ant -
REC OUT Io
cK PALe)—eno.
soPticaL) Ba
Dieirac { |
Voltage selector
(See page 3.)
“VIDEO OUT” terminal [14] Speaker impedance selector
Connect a video connection cable (not included) to the video Before use, set to the correct impedance corresponding to the
input terminal of TV or projection TV. impedance of the speaker systems being used.
(Refer to page 10.)
Cooling fan
The cooling fan operates at high output power levels only. [12] “GND” terminal
Connect the turntable's ground wire to this terminal (if
AC IN socket (AC IN) applicable).
Connect this socket to an AC outlet on the wall using the
power supply cord.
[13] “PHONO” terminals
If the power plug will not fit your socket, use the power Connect a turntable only. Do not connect any other sound
plug adaptor (included). source to these terminals.
—@-
El
=a
“TAPE”
terminals
Connect a tape deck by using stereo connection cables (not
included).
Outlets “SWITCHED” eat
Power to these outlets is controlled by the power switch of this TAPE This unit
unit. Audio equipment rated up to 80 W (total for all outlets) He ae
can be connected here. For proper remote-control operation,
connect the power cords of the tape deck and compact disc
player to these outlets as indicated below:
This unit
Ry Om
Tape deck
(not included)
Compact disc
player
(not included) a
Cassette tape
deck
[15] “CD” terminals
{not included)
Connect a stereo connection cable (nat included) to the “LINE
OUT" terminal of the compact disc player.
