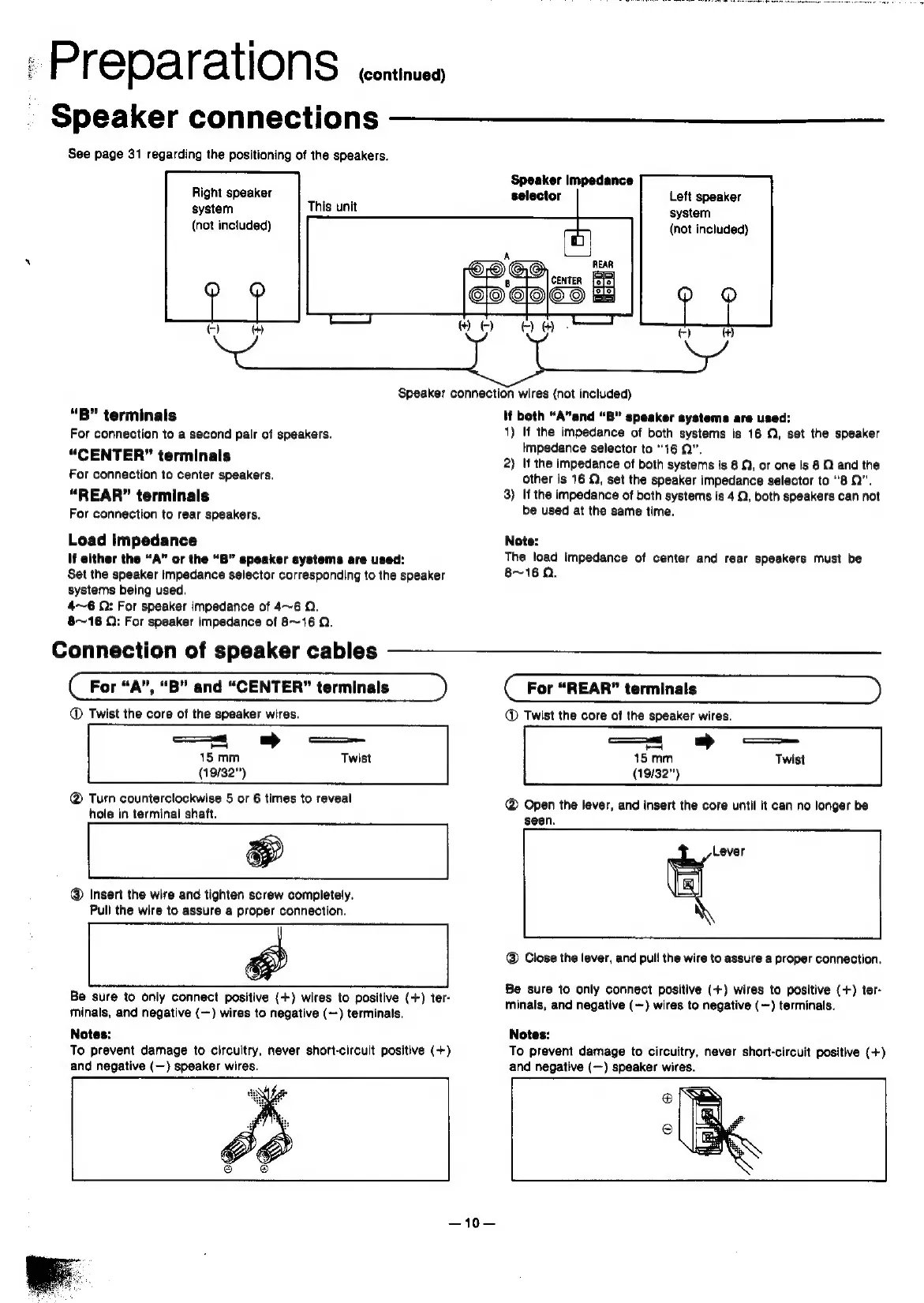

Speaker connections
See page 31 regarding the positioning of the speakers.
Right speaker
system
(not included)
This unit
Speaker Impedance
selector Left speaker
system
(not included)
Speaker connection wires (not included)
“B” terminals
For connection to a second pair of speakers.
“CENTER” terminals
For connection to center speakers.
“REAR” terminals
For connection to rear speakers.
Load impedance
\f either the “A” or the “B” speaker systems are used:
Set the speaker impedance selector corresponding to the speaker
systems being used.
4-6 Q: For speaker impedance of 4~6 Q.
8~16 Q: For speaker impedance of 8~16 Q.
Connection of speaker cables
For “A”, “B” and “CENTER” terminals
@® Twist the core of the speaker wires.
(19/32")
@® Turn counterclockwise 5 or 6 times to reveal
hole in terminal shaft.
[| we
@ Insert the wire and tighten screw completely.
Pull the wire to assure a proper connection.
Be sure to only connect positive (+) wires to positive (+) ter-
minals, and negative (—) wires to negative (—) terminals.
Notes:
To prevent damage to circuitry, never short-circuit positive (+)
and negative (—) speaker wires.
tf both “A” and “B” speaker systems are used:
1) If the impedance of both systems is 16 Q, set the speaker
impedance selector to “16.9”.
2) If the impedance of both systems is 8 Q, or one is 8 Q and the
other is 16 Q, set the speaker impedance selector to "8".
3) If the impedance of both systems is 4 9, both speakers can not
be used at the same time.
Note:
The load impedance of center and rear speakers must be
8~16 OQ.
For “REAR” terminals
@ Twist the core of the speaker wires.
(19/32")
@ Open the lever, and insert the core until it can no longer be
seen.
Lever
N
@® Close the lever, and pull the wire to assure a proper connection.
Be sure to only connect positive (+) wires to positive (+) ter-
minals, and negative (—) wires to negative (—) terminals.
Notes:
To prevent damage to circuitry, never short-circuit positive (+)
and negative (—) speaker wires.
—10—
