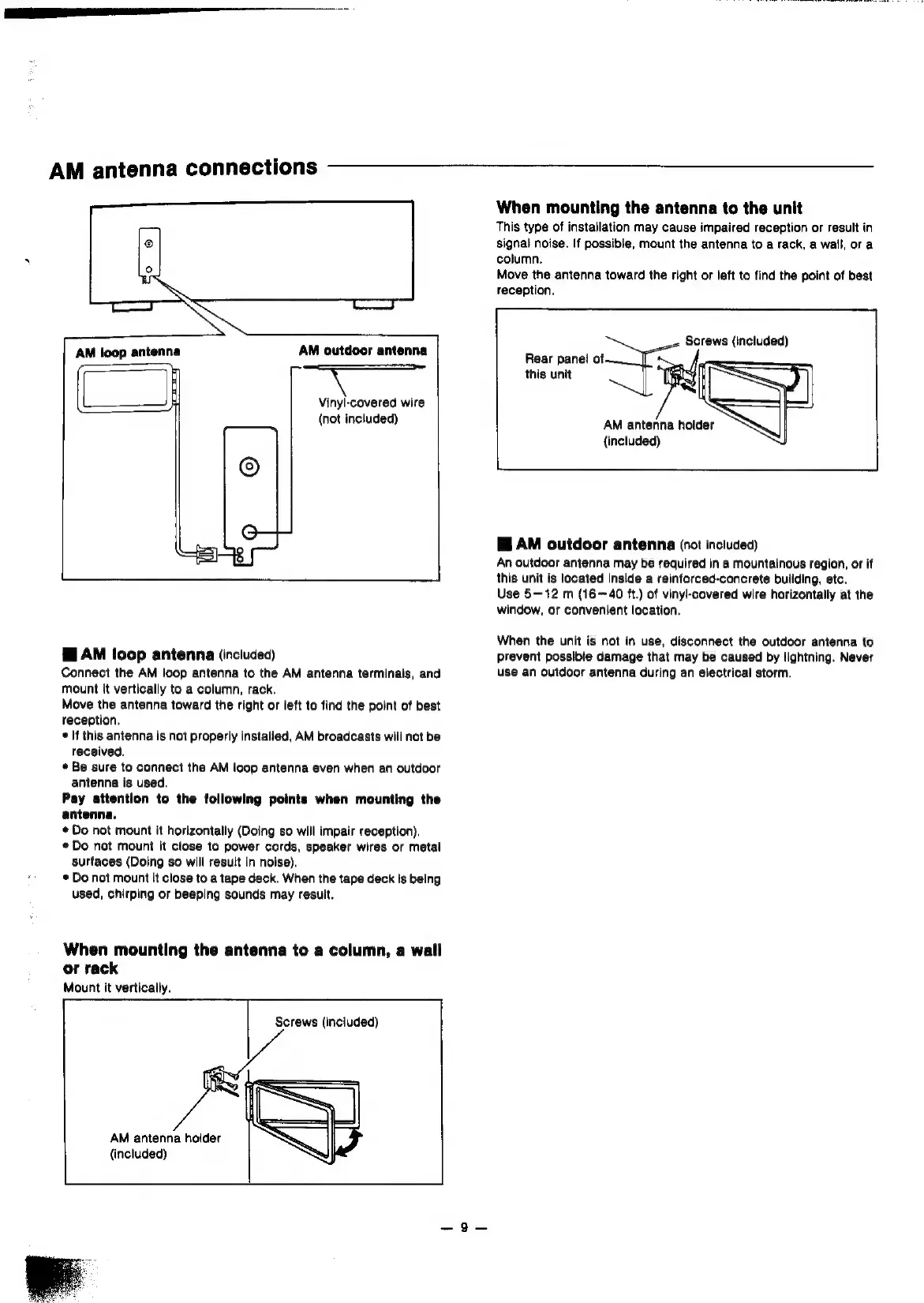

Technics SA-GX910 User Manual

AM
antenna
connections
AM outdoor antenna
Vinyl-covered wire
(not included)
WAM loop antenna (included)
Connect the AM loop antenna to the AM antenna terminals, and
mount it vertically to a column, rack.
Move the antenna toward the right or left to find the point of best
reception.
© If this antenna is not properly installed, AM broadcasts will not be
received.
* Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
Pay attention to the following points when mounting the
antenna.
¢ Do not mount it horizontally (Doing so will impair reception).
*Do not mount it close to power cords, speaker wires or metal
surfaces (Doing so will result in noise).
® Do not mount it close to a tape deck. When the tape deck is being
used, chirping or beeping sounds may result.
When mounting the antenna to a column, a wall
or rack
Mount it vertically.
Screws (included)
AM antenna holder
(included)
When mounting the antenna to the unit
This type of installation may cause impaired reception or result in
signal noise. If possible, mount the antenna to a rack, a wall, or a
column.
Move the antenna toward the right or left to find the point of best
reception.
Screws (Included)
Rear panel of.
this unit
AM antenna holder
{included)
AM outdoor antenna (not included)
An outdoor antenna may be required in a mountainous region, or if
this unit is located inside a reinforced-concrete building, etc.
Use 5-12 m (16~40 ft.) of vinyl-covered wire horizontally at the
window, or convenient location.
When the unit is not in use, disconnect the outdoor antenna to
prevent possible damage that may be caused by lightning. Never
use an outdoor antenna during an electrical storm.
