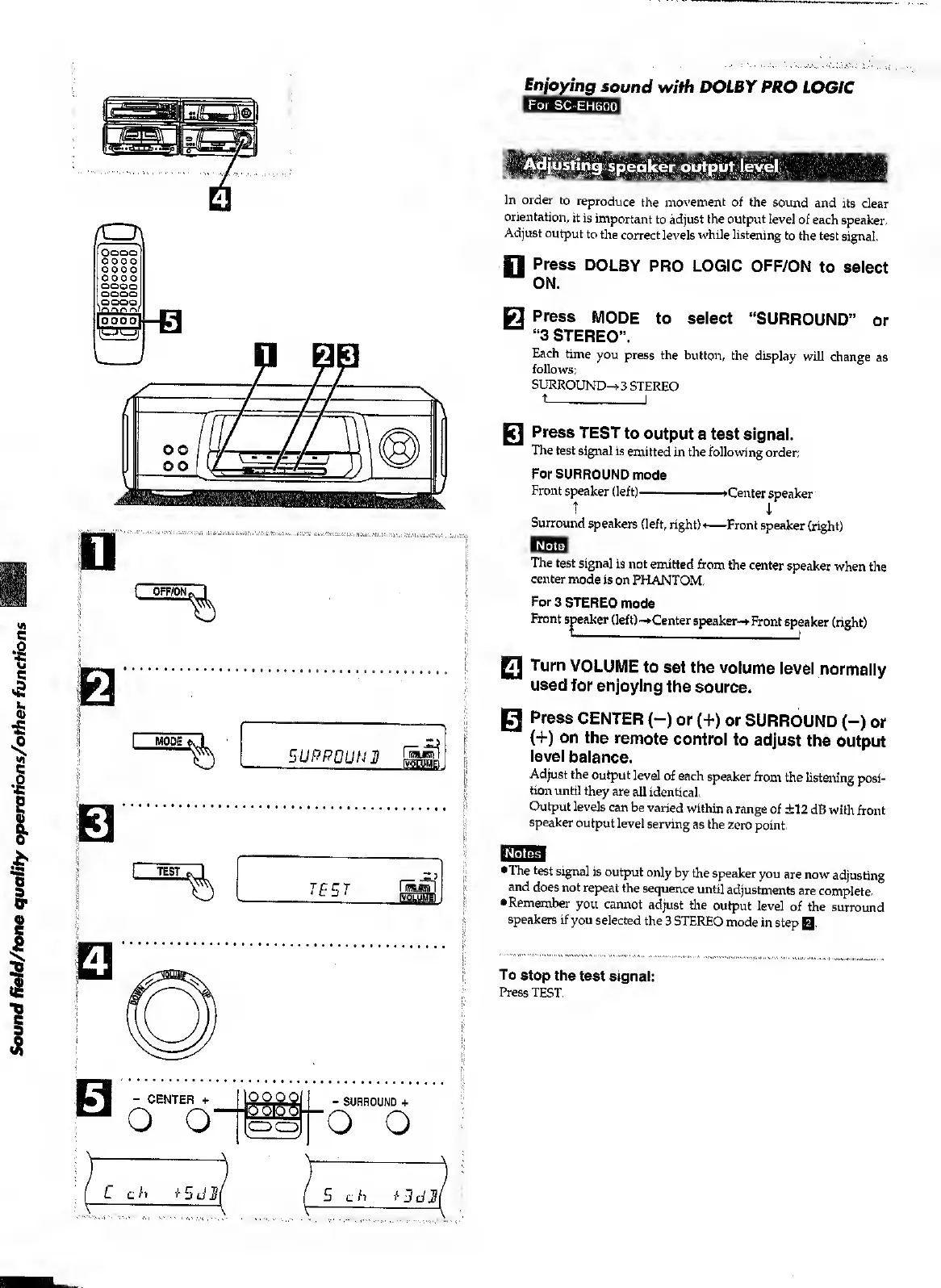

Enjoying sound with DOLBY PRO LOGIC
For SC-EH600
Adjusting speaker output level
In order to reproduce the movement of the sound and its clear
orientation, it is important to adjust the output level of each speaker.
Adjust output to the correct levels while listening to the test signal.
Q Press DOLBY PRO LOGIC OFF/ON to select
ON.
R Press MODE to select “SURROUND” or
“3 STEREO”.
Each time you press the button, the display will change as
follows:
SURROUND—* 3 STEREO
t-1
E] Press TEST to output a test signal.
The test signal is emitted in the following order:
For SURROUND mode
Front speaker (left)-^Center speaker
t i
Surround speakers (left, right)<-Front speaker (right)
Tlie test signal is not emitted from the center speaker when the
center mode is on PHANTOM.
For 3 STEREO mode
Front s
speaker (left)~»Center Speaker-
Front speaker (right)
FI Tum VOLUME to set the volume level normally
used for enjoying the source.
0 Press CENTER (-) or (+) or SURROUND (-) or
(+) on the remote control to adjust the output
level balance.
Adjust the output level of each speaker from the listening posi¬
tion until they are all identical,
Output levels can be varied within a range of ±12 dB with front
speaker output level serving as the zero point.
Notes
•The test signal is output only by the speaker you are now adjusting
and does not repeat the sequence until adjustments are complete.
•Remember you cannot adjust the output level of the surround
speakers if you selected the 3 STEREO mode in step Q
To stop the test signal:
Press TEST.
