Front Center Front
speaker {L} speaker speaker {R}
Surround Surround
speaker (L) speaker (R)
Front Center Front
speaker (L) speaker speaker (R)

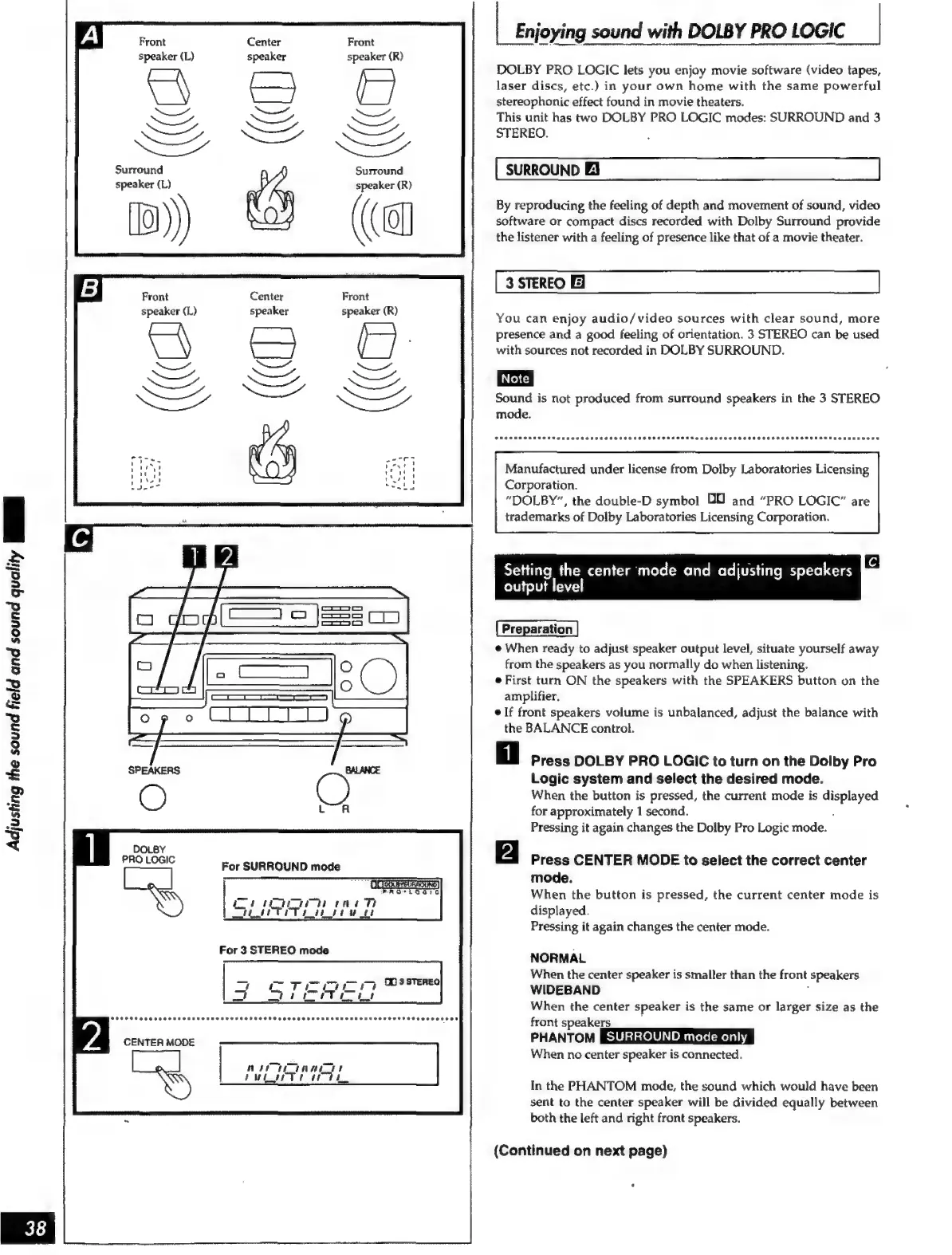

Adjusting the sound field and sound quality BE
For SURROUND mode
Pa rae TH
rT H Jia tt
For 3 STEREO mode
aooeseaneeces
CENTER MODE
nema
PML ED
ieee sound with DOLBY PRO LOGIC |
DOLBY PRO LOGIC lets you enjoy movie software (video tapes,
laser discs, etc.) in your own home with the same powerful
stereophonic effect found in movie theaters.
This unit has two DOLBY PRO LOGIC modes: SURROUND and 3
STEREO.
SURROUND EJ
By reproducing the feeling of depth and movement of sound, video
software or compact discs recorded with Dolby Surround provide
the listener with a feeling of presence like that of a movie theater.
3 STEREO E
You can enjoy audio/video sources with clear sound, more
presence and a good feeling of orientation. 3 STEREO can be used
with sources not recorded in DOLBY SURROUND.
Sound is not produced from surround speakers in the 3 STEREO
mode.
engonnonunuonugnnor Cerraeceseeoeeensenaceonten Oe eeeeeseeeeee Rees oREsennennaneeES
Manufactured under license from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol OO and “PRO LOGIC” are
trademarks of Dolby Laboratories Licensing Corporation.
Setting the center mode and adjusting speakers
output level
e When ready to adjust speaker output level, situate yourself away
from the speakers as you normally do when listening.
è First turn ON the speakers with the SPEAKERS button on the
amplifier.
elf front speakers volume is unbalanced, adjust the balance with
the BALANCE control.
Press DOLBY PRO LOGIC to turn on the Dolby Pro
Logic system and select the desired mode.
When the button is pressed, the current mode is displayed
for approximately 1 second. '
Pressing it again changes the Dolby Pro Logic mode.
Press CENTER MODE to select the correct center
mode.
When the button is pressed, the current center mode is
displayed.
Pressing it again changes the center mode.
NORMAL
When the center speaker is smaller than the front ‘Speakers
WIDEBAND
When the center speaker is the same or larger size as the
front speakers
PHANTOM EARKI EK
When no center speaker is connected.
In the PHANTOM mode, the sound which would have been
sent to the center speaker will be divided equally between
both the left and right front speakers.
(Continued on next page)
