Tecsun PL-365 User Manual

Ph: +61 2 9939 4377
www.tecsunradios.com.au
Ph: +61 2 9939 4377
www.tecsunradios.com.au
TECSUN RADIOS AUSTRALIA
24/9 Powells Road, Brookvale, NSW 2100 Australia
Ph: +61 2 9939 4377
Email: info@tecsunradios.com.au
www.tecsunradios.com.au
16
USING THE EXTERNAL ANTENNA
WINDOW WALL
Do not place the external antenna outdoors
during a thunderstorm!
EXTERNAL FM/SW ANTENNA
Enhancing FM/SW reception
Use the external wire antenna to clip onto the telescopic
antenna of the PL-365. Then position the opposite end
outside the window for better FM and SW reception.
PL-365
TECSUN
POWER
FM MW
SW
ATS
SLEEP
High Sensitivity AM Antenna
Enhancing AM/LW reception
Plug the AM/LW external antenna into the AM Antenna
jack, then rotate the antenna for better AM/LW reception.
5

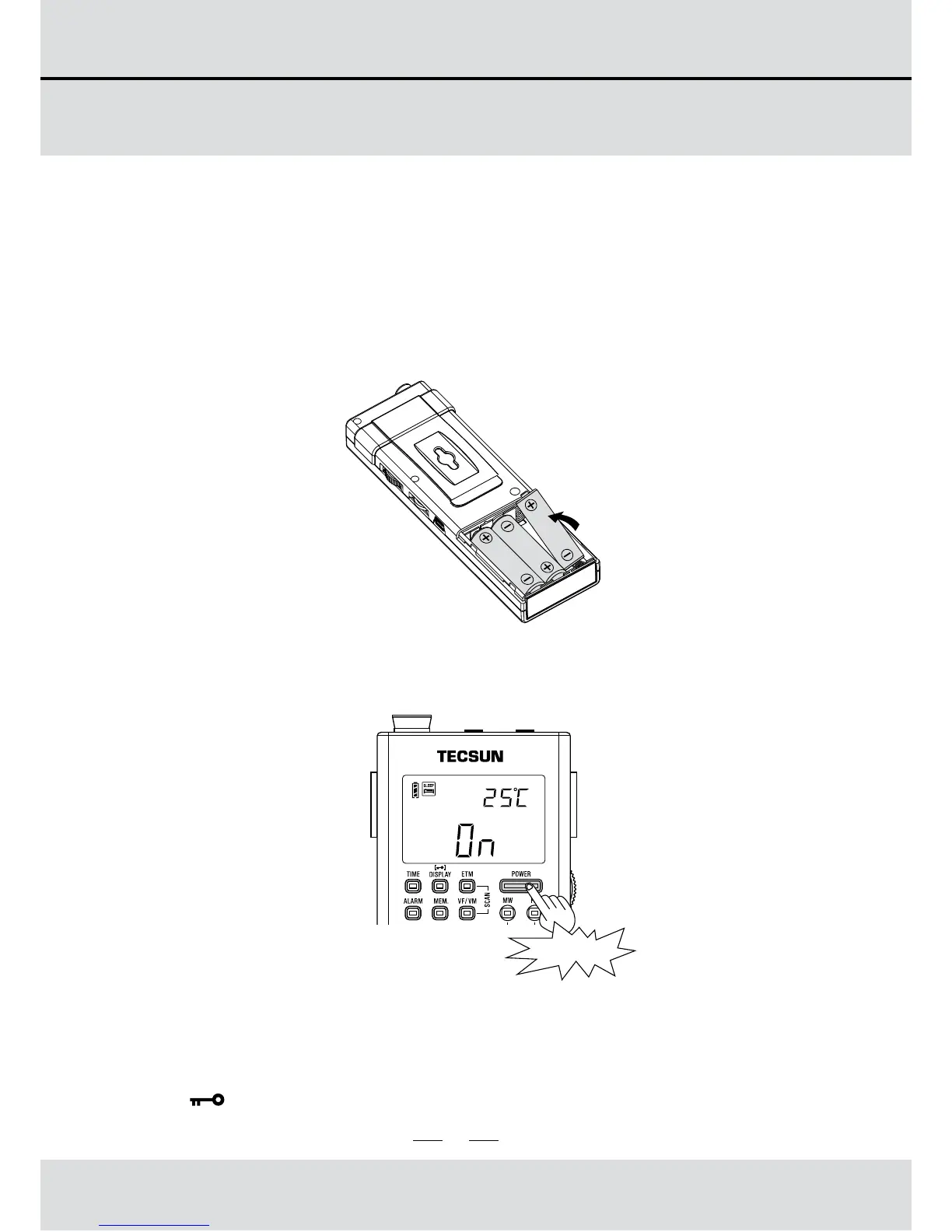

2. Short press on [POWER] button to turn the radio on or off.
TURN ON / OFF THE RADIO
1. Installing batteries
The battery compartment is located on the back of the
PL-365. To remove the battery compartment cover, apply
thumb pressure and slide it towards the bottom of the
radio. Install 3 AA size batteries into the battery
compartment, observing the battery polarity diagram on
the back of the radio. Display screen would show battery
capacity, time, etc.
Note:
If the radio is not able to be turned on. Please check if the
batteries were installed correctly, battery capacity is
sufficient or the lock function had been applied with symbol
" " displayed on screen.
Temp.
Short press
9/10k
TIME
ALARM
STEP
MEM.
DISPLAY
SCAN
VF/ VM
BFO
ETM
DEL.
USB/ LSB
FM ST.
FM STEREO/ MW/ SW-SSB DSP RECEIVER

Tecsun PL-365 Specifications

Frequency Range

FM frequency range	87~108 MHz
Japan FM frequency range	76~108 MHz
EU, USA FM frequency range	87.5~108 MHz
MW frequency range	522~1620 (150~1620) kHz
USA MW frequency range	520~1710 kHz
SW frequency range	1711~29999 kHz

Sensitivity

FM sensitivity (S/N=30dB)	Less than 3μV
MW sensitivity (S/N=26dB)	Less than 1mV/m
LW sensitivity (S/N=26dB)	Less than 10mV/m
SW sensitivity (S/N=26dB)	Less than 30μV
SSB sensitivity (S/N=10dB)	Less than 3μV

Selectivity and Stereo Crosstalk

FM selectivity	＞60 dB
MW selectivity	＞60 dB
LW selectivity	＞60 dB
SW selectivity	＞60 dB
FM Stereo crosstalk	Less than 25 dB

Power and Output

Memory capacity	550
Output power	350 mW
Battery type	UM3 or AA X 3
USB power	5V DC

Speaker and Connectivity

Speaker specifications	Φ40mm, 500mW/16 Ohm
Earphone jack specifications	Φ3.5mm, 8~32 Ohm, Stereo type

Weight and Dimensions

Dimensions	Approx. 53(W) X 159(H) X 26(D) mm
Weight	128g (Batteries not included)
