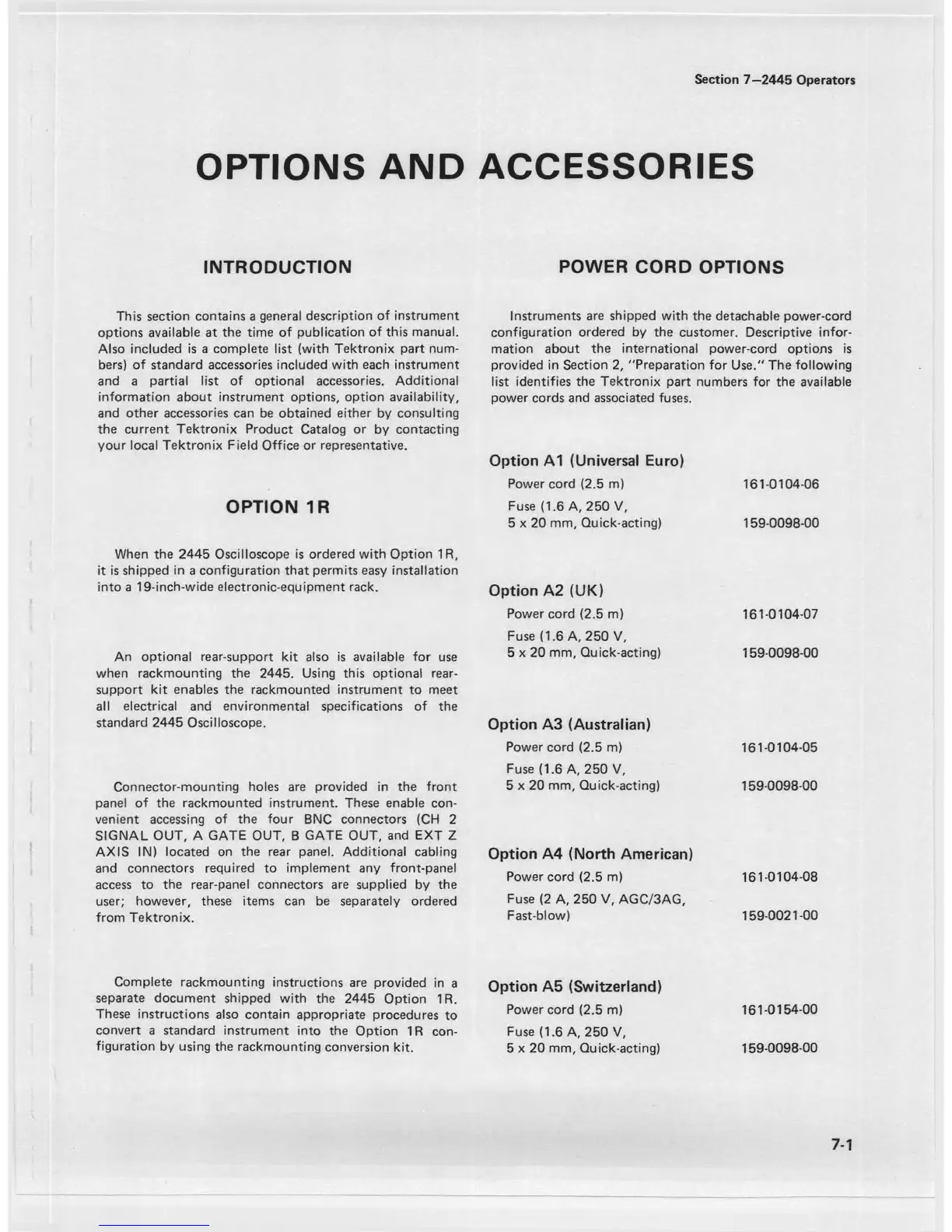

Section 7—2445 Operators
OPTIONS AND ACCESSORIES
INTRODUCTION
POWER CORD OPTIONS
This section contains a general description of instrument
options available at the time of publication of this manual.
Also included is a complete list (with Tektronix part num
bers) of standard accessories included with each instrument
and a partial list of optional accessories. Additional
information about instrument options, option availability,
and other accessories can be obtained either by consulting
the current Tektronix Product Catalog or by contacting
your local Tektronix Field Office or representative.
OPTION 1 R
Instruments are shipped with the detachable power-cord
configuration ordered by the customer. Descriptive infor
mation about the international power-cord options is
provided in Section 2, "Preparation for Use." The following
list identifies the Tektronix part numbers for the available
power cords and associated fuses.
Option A1 (Universal Euro)
Power cord (2.5 m)
Fuse (1.6 A, 250 V,
5 x 20 mm. Quick-acting)
161-0104-06
159-0098-00
When the 2445 Oscilloscope is ordered with Option 1R,
it is shipped in a configuration that permits easy installation
into a 19-inch-wide electronic-equipment rack.
An optional rear-support kit also is available for use
when rackmounting the 2445. Using this optional rear-
support kit enables the rackmounted instrument to meet
all electrical and environmental specifications of the
standard 2445 Oscilloscope.
Connector-mounting holes are provided in the front
panel of the rackmounted instrument. These enable con
venient accessing of the four BNC connectors (CH 2
SIGNAL OUT, A GATE OUT, B GATE OUT, and EXT Z
AXIS IN) located on the rear panel. Additional cabling
and connectors required to implement any front-panel
access to the rear-panel connectors are supplied by the
user; however, these items can be separately ordered
from Tektronix.
Option A2 (UK)
Power cord (2.5 m)
Fuse (1.6 A, 250 V,
5 x 20 mm, Quick-acting)
Option A3 (Australian)
Power cord (2.5 m)
Fuse (1.6 A, 250 V,
5 x 20 mm. Quick-acting)
Option A4 (North American)
Power cord (2.5 m)
Fuse (2 A, 250 V, AGC/3AG,
Fast-blow)
161-0104-07
159-0098-00
161-0104-05
159-0098-00
161-0104-08
159-0021-00
Complete rackmounting instructions are provided in a
separate document shipped with the 2445 Option 1R.
These instructions also contain appropriate procedures to
convert a standard instrument into the Option 1R con
figuration by using the rackmounting conversion kit.
Option A5 (Switzerland)
Power cord (2.5 m) 161-0154-00
Fuse (1.6 A, 250 V,
5 x 20 mm. Quick-acting) 159-0098-00
7-1
