USE AN INSULATED SCREWDRIVER
WHEN MAKING THESE ADJUSTMENTS.
CHI STEP ATTN BAL
CH2 STEP ATTN BAL
RECESSED SCREWDRIVER ADJUSTMENTS TO
ELIMINATE CRT TRACE SHIFT WHEN SWITCHING
BETWEEN ADJACENT POSITIONS OF THE VOLT/
DIV CONTROL SWITCH.
ASTIG (ASTIGMATISM)
RECESSED SCREWDRIVER ADJUSTMENT USED IN
CONJUNCTION WITH THE FOCUS ADJUSTMENT TO
OBTAIN OPTIMUM DEFINITION OF THE CRT.
<D>
©
FOCUS
RECESSED SCREWDRIVER ADJUSTMENT FOR
OPTIMUM CRT TRACE DEFINITION.
TRACE ROTATION
RECESSED SCREWDRIVER ADJUSTMENT TO
HORIZONTALLY ALIGN THE CRT DISPLAY TRACE.
2424-06

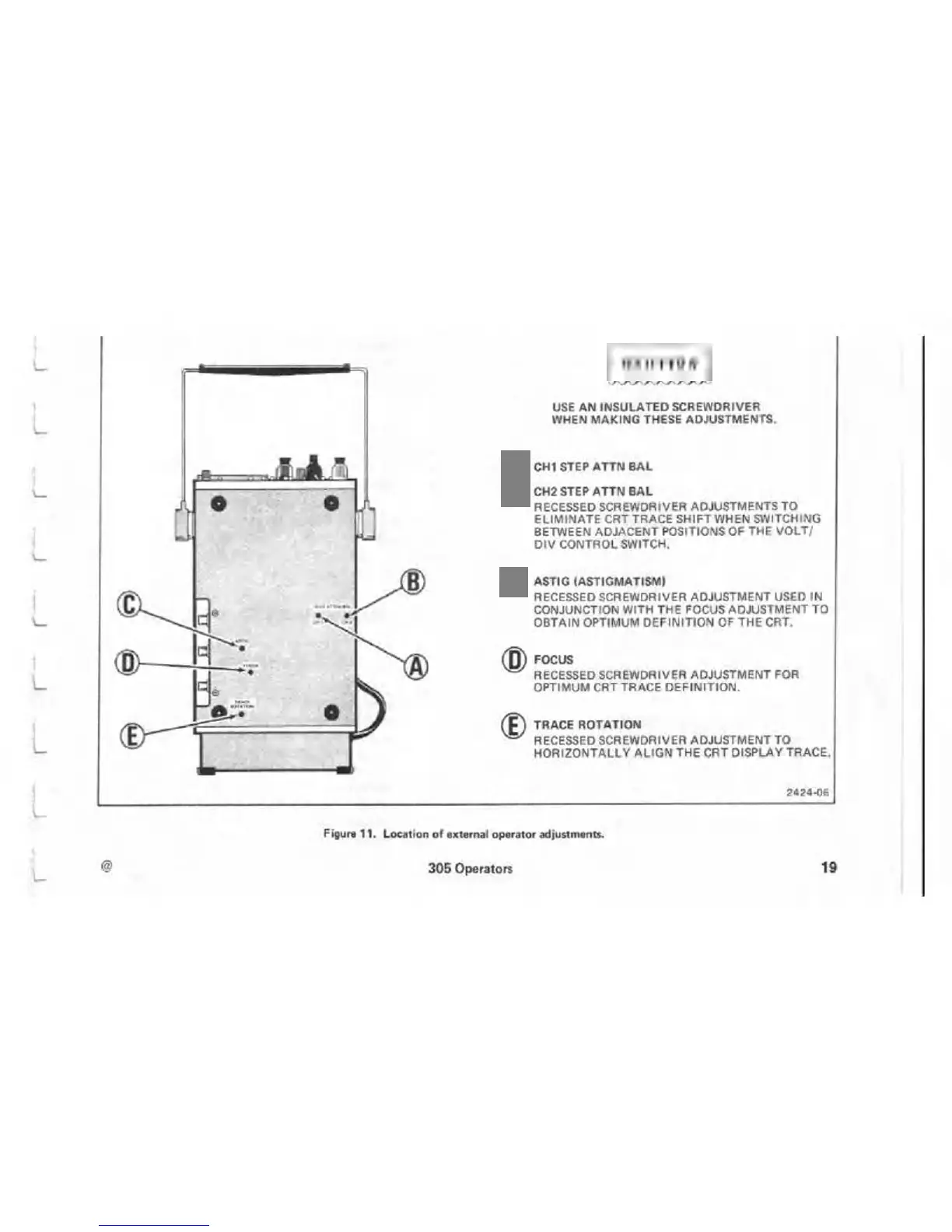

Fioura 11. Location of external operator adjustments.
@
305 Operators
