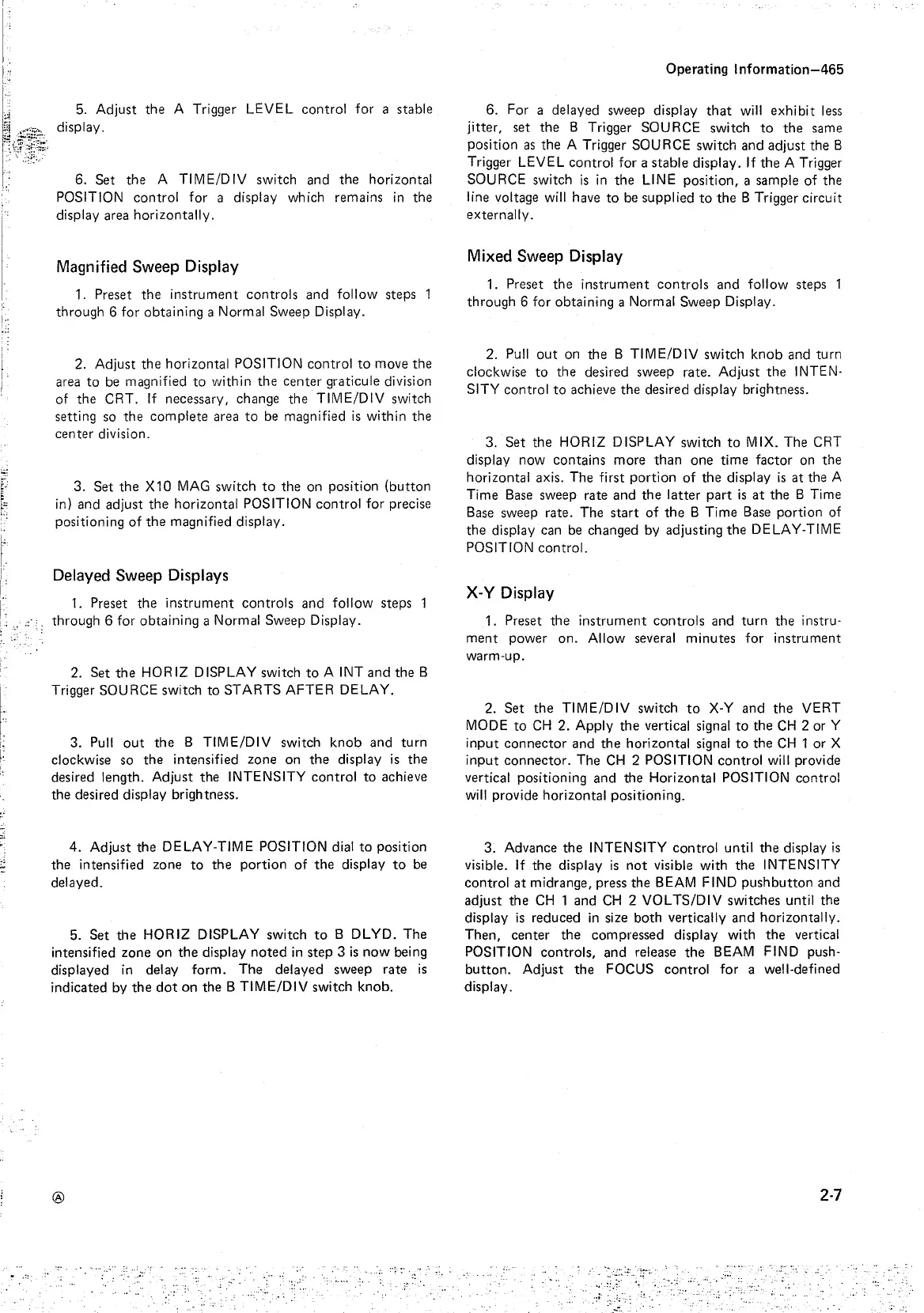

5. Adjust the A Trigger LEVEL control for a stable
display.
6. Set the A Tl ME/DIV switch and the horizontal
POSITION control for a display which remains in the
display area horizontally.
Magnified Sweep Display
1. Preset the instrument controls and follow steps 1
through 6 for obtaining a Normal Sweep Display.
2. Adjust the horizontal POSITION control to move the
area to be magnified to within the center graticule division
of the CRT. If necessary, change the TIME/DIV switch
setting so the complete area to be magnified is within the
center division.
3. Set the X 10 MAG switch to the on position (button
in) and adjust the horizontal POSITION control for precise
positioning of the magnified display.
Delayed Sweep Displays
1. Preset the instrument controls and follow steps 1
through 6 for obtaining a Normal Sweep Display.
2. Set the HORIZ DISPLAY switch to A INT and the B
Trigger SOURCE switch to STARTS AFTER DELAY.
3. Pull out the B TIME/DIV switch knob and turn
clockwise so the intensified zone on the display is the
desired length. Adjust the INTENSITY control to achieve
the desired display brightness.
4. Adjust the DELAY-TIME POSITION dial to position
the intensified zone to the portion of the display to be
delayed.
5. Set the HORIZ DISPLAY switch to B DLYD. The
intensified zone on the display noted in step 3 is now being
displayed in delay form. The delayed sweep rate is
indicated by the dot on the B TIME/DIV switch knob.
®
Operating lnformation-465
6. For a delayed sweep display that will exhibit less
jitter, set the B Trigger SOURCE switch to the same
position as the A Trigger SOURCE switch and adjust the B
Trigger LEVEL control for a stable display. If the A Trigger
SOURCE switch is in the LINE position, a sample of the
line voltage will have to be supplied to the B Trigger circuit
externally.
Mixed Sweep Display
1. Preset the instrument controls and follow steps 1
through 6 for obtaining a Normal Sweep Display.
2. Pull out on the B TIME/DIV switch knob and turn
clockwise to the desired sweep rate. Adjust the I NTEN-
SITY control to achieve the desired display brightness.
3. Set the HORIZ DISPLAY switch to MIX. The CRT
display now contains more than one time factor on the
horizontal axis. The first portion of the display is at the A
Time Base sweep rate and the latter part is at the B Time
Base sweep rate. The start of the B Time Base portion of
the display can be changed by adjusting the DELAY-TIME
POSITION control.
X-Y Display
1. Preset the instrument controls and turn the instru-
ment power on. Allow several minutes for instrument
warm-up.
2. Set the TIME/DIV switch to X-Y and the VERT
MODE to CH 2. Apply the vertical signal to the CH 2 or Y
input connector and the horizontal signal to the CH 1 or X
input connector. The CH 2 POSITION control will provide
vertical positioning and the Horizontal POSITION control
will provide horizontal positioning.
3. Advance the INTENSITY control until the display is
visible. If the display is not visible with the INTENSITY
control at midrange, press the BEAM FIND pushbutton and
adjust the CH 1 and CH 2 VOL TS/DIV switches until the
display is reduced in size both vertically and horizontally.
Then, center the compressed display with the vertical
POSITION controls, and release the BEAM FIND push-
button. Adjust the FOCUS control for a well-defined
display.
2-7

Tektronix 465 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	5 mV/div to 5 V/div
Rise Time	3.5 ns
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Sources	CH 1, CH 2, LINE, EXT
Display	CRT
Type	Oscilloscope
Input Impedance	1 MΩ in parallel with 20 pF
Power Requirements	48-440 Hz
Maximum Input Voltage	400 V (DC + AC peak)
