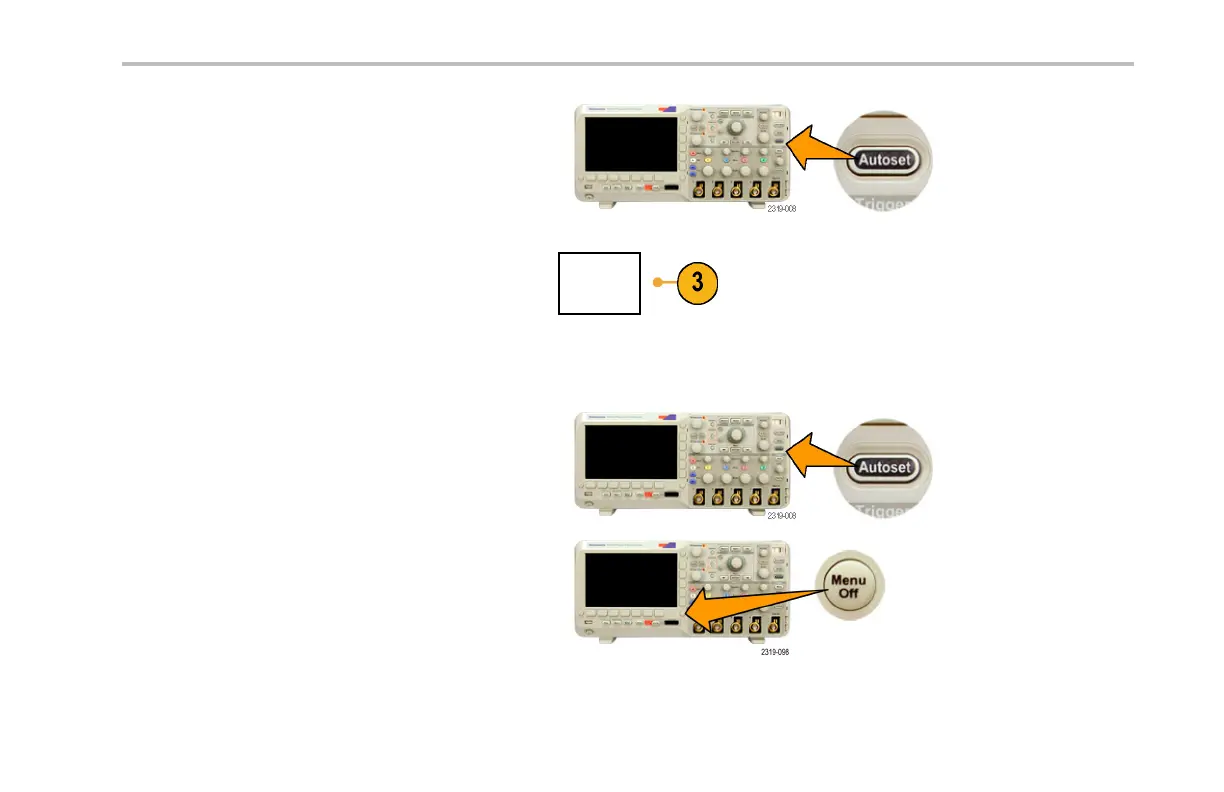

Acquire
the
Signal
2.
Push
Autoset
to
e
xe
cute
an
Autoset.
3.
If
desired,
push
Undo
Autos
e
t
to
undo
the
last
Autoset.
Undo
Autoset
Y
o
u
can
also
disable
the
Au
toset
function
if
you
want
to
set
u
p
a
wa
veform
manua
lly
.
T
o
disa
ble
or
ena
ble
the
Autoset
function:
1.
Push
and
hold
Autoset
.
2.
Push
and
h
old
Menu
Off
.
DPO2000
and
MSO2000
Series
Oscilloscopes
User
Man
ual
83
100
102
Table of Contents
Table of Contents
7
General Safety Summary
11
Environmental Considerations
14
Preface
16
Key Features
16
Conventions Used in this Manual
18
Installation
19
Before Installation
19
Operating Considerations
25
Connecting Probes
30
Securing the Oscilloscope
32
Powering on the Oscilloscope
33
Powering off the Oscilloscope
35
Functional Check
36
Compensating a Passive Voltage Probe
39
Application Module Free Trial
41
Installing an Application Module
41
Changing the User Interface Language
42
Changing the Date and Time
45
Signal Path Compensation
47
Upgrading Firmware
50
Connecting Your Oscilloscope to a Computer
57
Connecting a USB Keyboard to Your Oscilloscope
64
Getting Acquainted with the Oscilloscope
65
Front-Panel Menus and Controls
65
Front-Panel Connectors
89
Side-Panel Connector
90
Rear-Panel Connectors
91
Acquire the Signal
92
Setting up Analog Channels
92
Using the Default Setup
99
Using Autoset
100
Acquisition Concepts
102
How the Analog Acquisition Modes Work
105
Changing the Acquisition Mode, Record Length, and Delay Time
106
Using Roll Mode
109
Setting up a Serial or Parallel Bus
110
Setting up Digital Channels (MSO2000 Series Only)
130
Reducing Unwanted Noise with Filtervu
134
Using Filtervu
138
Trigger Setup
141
Triggering Concepts
141
Choosing a Trigger Type
147
Selecting Triggers
148
Triggering on Buses
153
Checking Trigger Settings
162
Starting and Stopping an Acquisition
163
Display Waveform Data
164
Adding and Removing a Waveform
164
Setting the Display Style and Persistence
165
Setting Waveform Intensity
172
Scaling and Positioning a Waveform
173
Setting Input Parameters
176
Positioning and Labeling Bus Signals
180
Positioning, Scaling, and Grouping Digital Channels
182
Viewing Digital Channels
187
Annotating the Screen
188
Analyze Waveform Data
190
Taking Automatic Measurements
190
Selecting Automatic Measurements
192
Customizing an Automatic Measurement
199
Taking Manual Measurements with Cursors
205
Using Math Waveforms
211
Using Reference Waveforms
214
Using Wave Inspector to Manage Long Record Length Waveforms
216
Save and Recall Information
228
Saving a Screen Image
232
Saving and Recalling Waveform Data
234
Saving and Recalling Setups
239
Saving with One Button Push
242
Saving Setup, Screen Image, and Waveform Files
243
Printing a Hard Copy
245
Erasing Oscilloscope Memory
251
Using Application Modules
254
Appendix: Warranted Specifications, Safety Certifications, and Electromagnetic Compatibility
255
Certifications and Compliances
257
