Installation
Compensating a Passive Voltage Probe
Whenever you attach a passive voltage probe for the first time to any input channel, compensate the probe to match it to
the corresponding oscilloscope input channel.
To properly compensate your passive probe:
1. Follow the steps for the functional
check. (Se e page 18.)
2. Check the shape of the displayed
waveform to determine if your probe
is properly compensated.

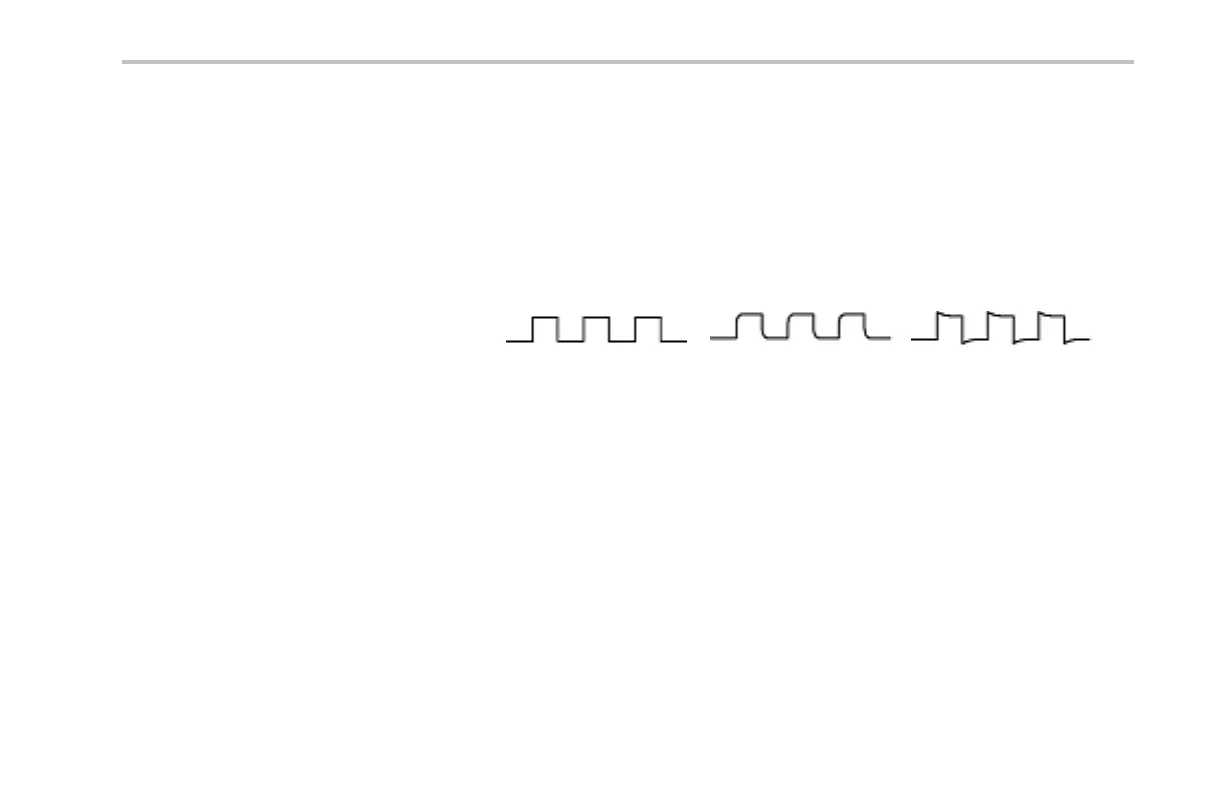

Properly compensated
Under compensated Over compensated
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 21
