Tektronix DPO5204 User Manual

Saving and Recal
ling Information

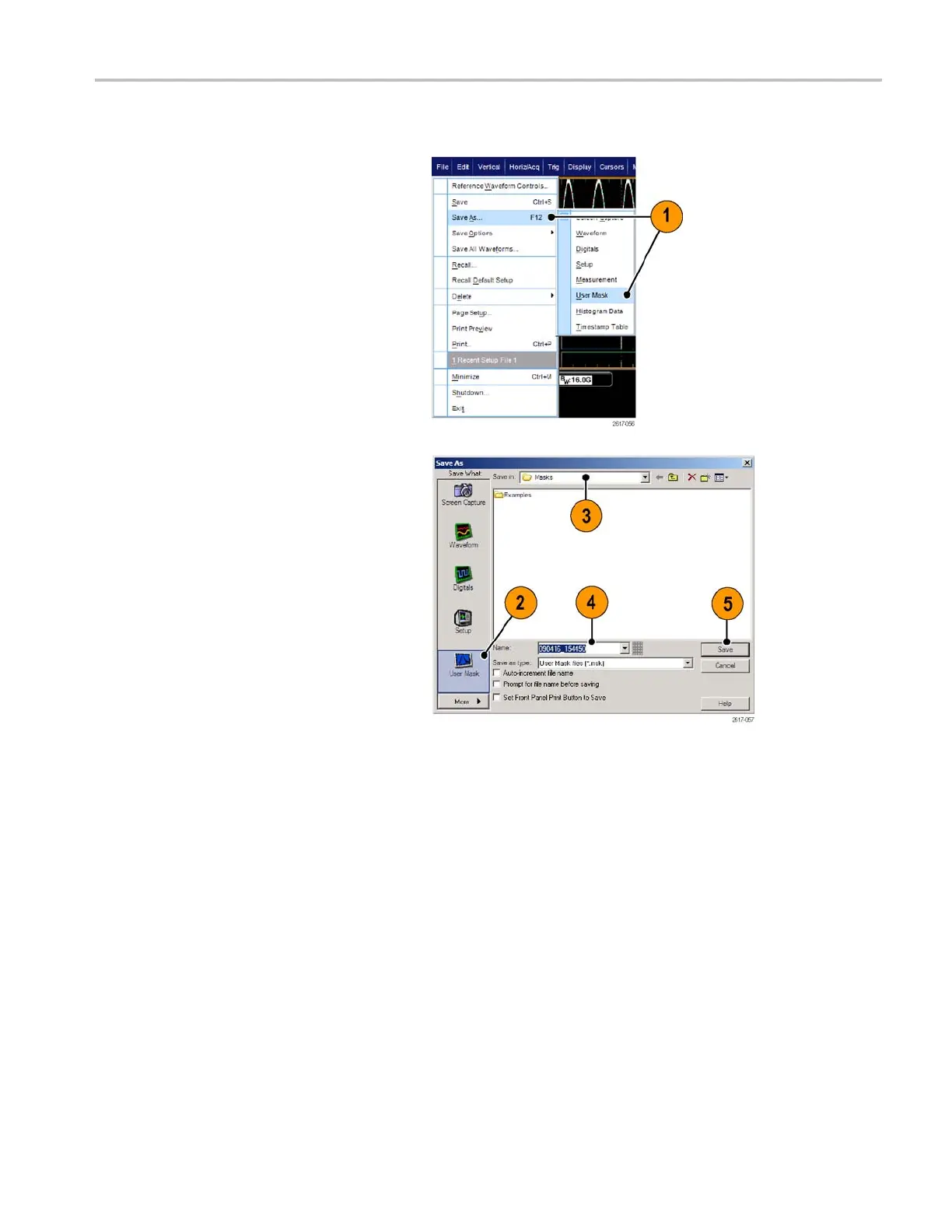

Saving User Masks
1. Select File > S
ave or Save As > User
Mask.
2. Click User Mask.
3. Select the location to save the mask.
4. Type in a name for the mask, and then
select a file type.
5. Click Save.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 151

Tektronix DPO5204 Specifications

General

Bandwidth	2 GHz
Channels	4
Input Voltage Range/Maximum Input Voltage	±40 V
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Interface	USB, LAN, GPIB
Operating Temperature	0 °C to +50 °C
Trigger Modes	Edge, Sequence, Pulse Width, Timeout, Runt, Logic, Video
Sample Rate	10 GS/s (All Channels)
Display	12.1 in. (307 mm) LCD
Input Impedance	1 MΩ ± 2% // 15 pF
