Tektronix DPO5204 User Manual

Getting Acquain
ted with Your Instrument
Getting Acqua
inted with Your Instrument

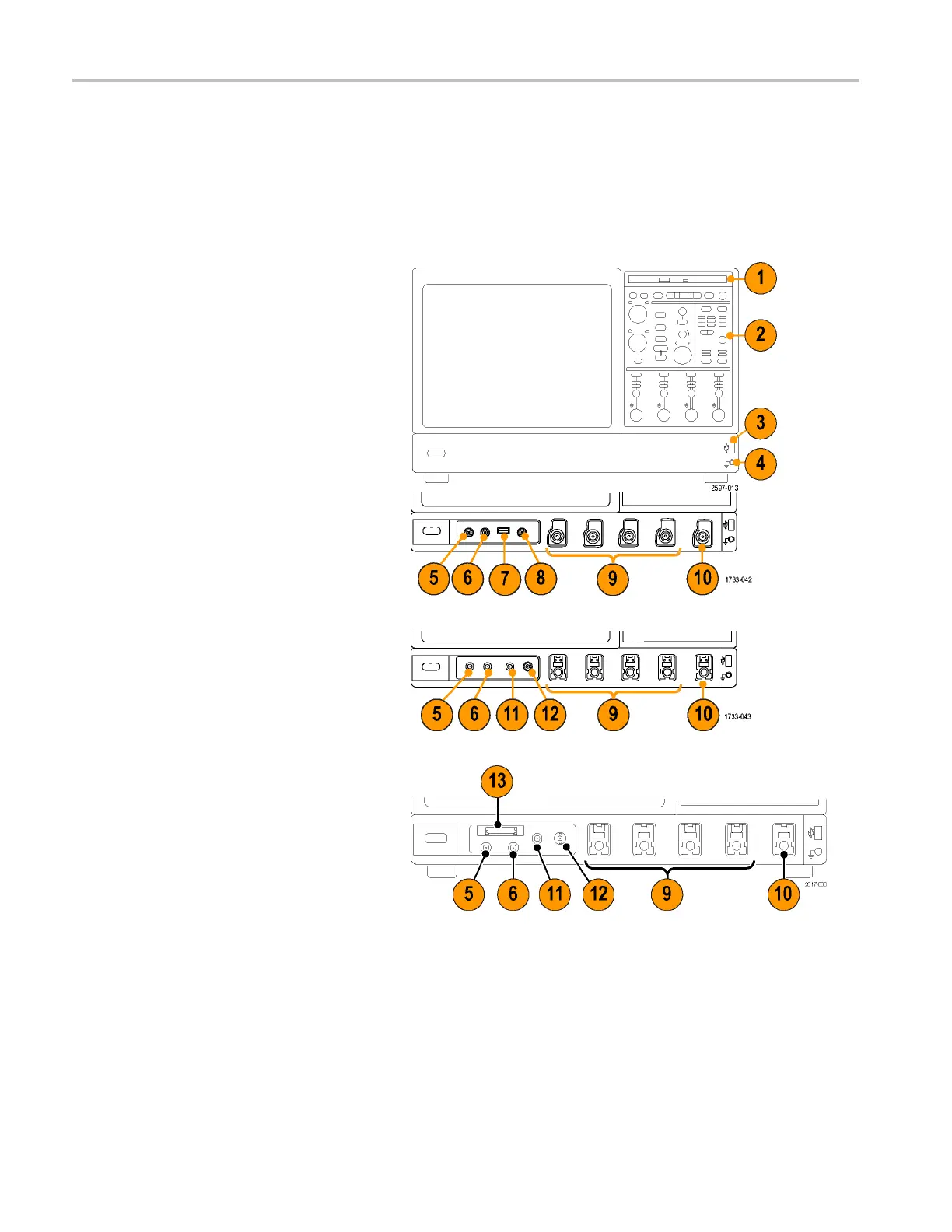

Front Panel
MSO70000/C, DSA7000B/C, DPO70000B/C, and DPO7000
1. DVD/CD-RW drive
2. Front panel controls
3. USB port
4. Ground terminal
5. Recovered data output (not available on
DPO7104 and DPO7054)
6. Recovered clock output (not available on
DPO7104 and DPO7054)
7. Probe compensation output
8. Probe calibration output
9. Channel 1–4 input
10. A uxiliary Trigger input
11. Fast Edge output
12. DC Probe Cal output
13. Logic probe input
DPO7000 Series
DSA70000B/C an d DPO70000B/C Series
MSO70000/C Series
16 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
