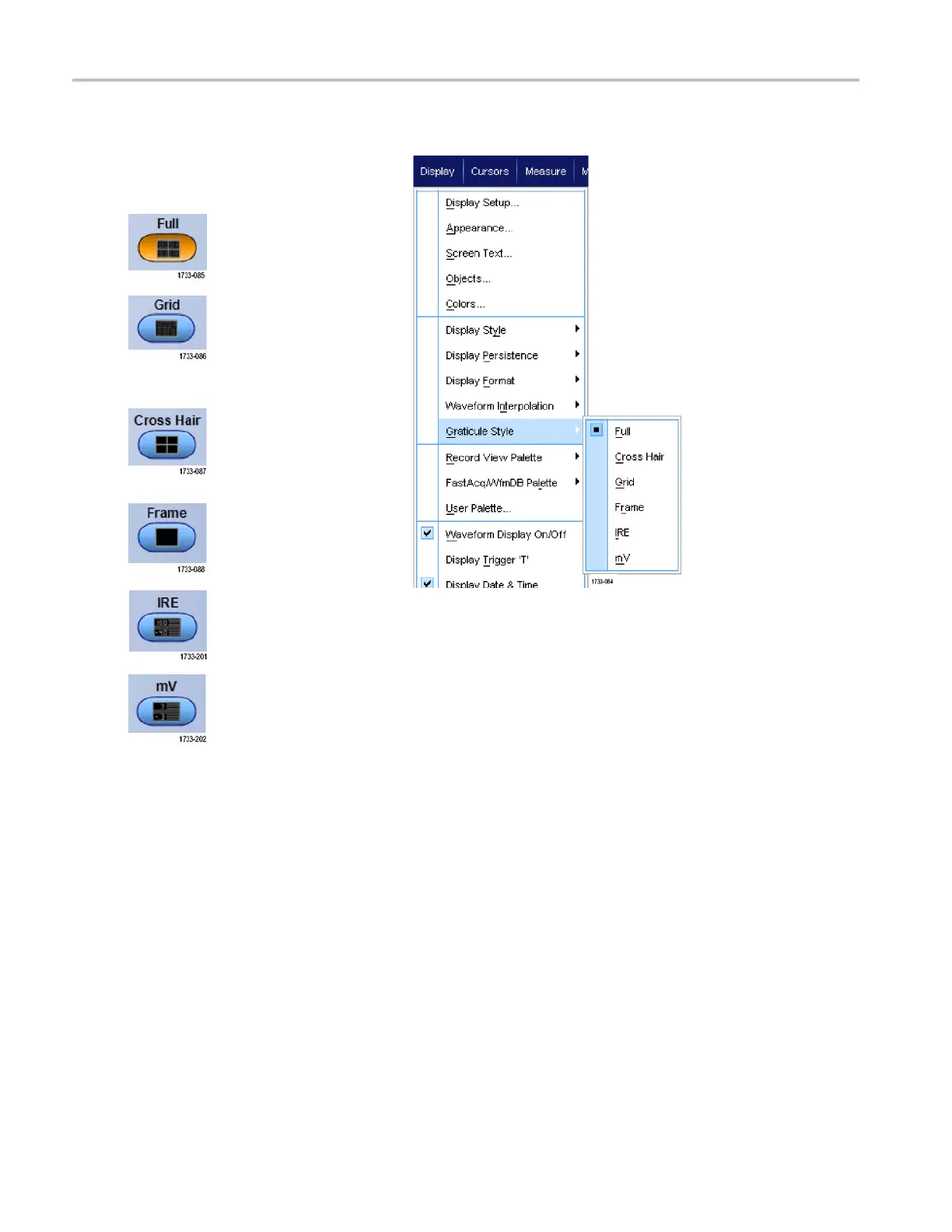

Display a Wavefo
rm
Quick Tips
Sin(X)/X interpolation is the default interpolation mode. It requires fewer actual sample points than linear interpolation to
accurately represent the waveform.
Adding Screen Text
1. Select Display > Screen Text.
2. Enter up to eight independent lines of
text.
3. Click Tex
t Off or On to turn the tex t
display on and off.
4. Click Font or Color to select the font and
color of the screen text.
5. Click Controls to open the Text
Proper
ties control window for positioning
of the text on the display.
6. Click Clear to erase the entire text of the
selected line.
Quick
Tips
Click and drag screen text to reposition it on the screen.
You can also label waveforms and buses. (See page 48, Setting Up Digital Channels.) (See page 50, Setting Up a Bus.)
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 93
