Getting Acquain
tedwithYourInstrument
MSO5000 and DPO5000 Series
1. Front panel controls
2. G round terminal
3. Probe compensation output
4. Auxiliary Trigger input
5. Channel 1–4 inputs
6. Logic probe input
7. USB ports
MSO5000 and DPO5000 Series

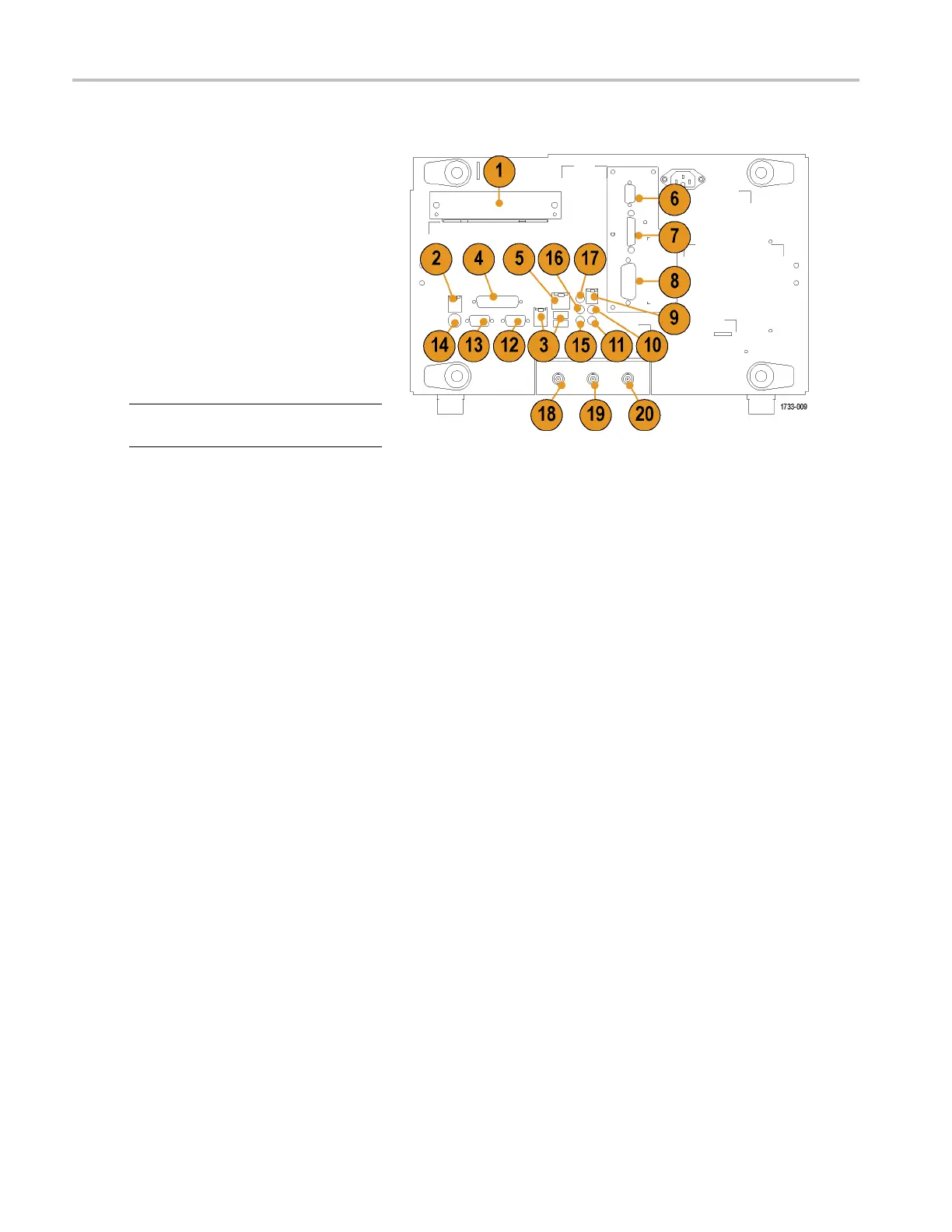

Side and Rear Panels
MSO70000/C, DSA70000B/C, and DPO700 00B/C
1. Removable hard disk drive
2. PS -2 connector for mouse
3. USB host ports
4. Passive eSATA Port
5. RJ-45 LAN connector to connect to
network
6. TekLink connector
7. G PIB port to connect to controller
8. Line Out connector for speaker
NOTE. Some instruments may have
additional audio connectors.
9. Mic connector for microphone
10. DVI-I Video port
11. COM 1 and COM 2 serial ports
12. PS-2 connector for keyboard
13. Auxiliary output
14. Reference output
15. External reference input
MSO70000/C, DSA70000 B/C, and DPO70000B/C Ser ies
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 17
