Getting Acquain
ted with Your Instrument
MSO5000 and DPO5000

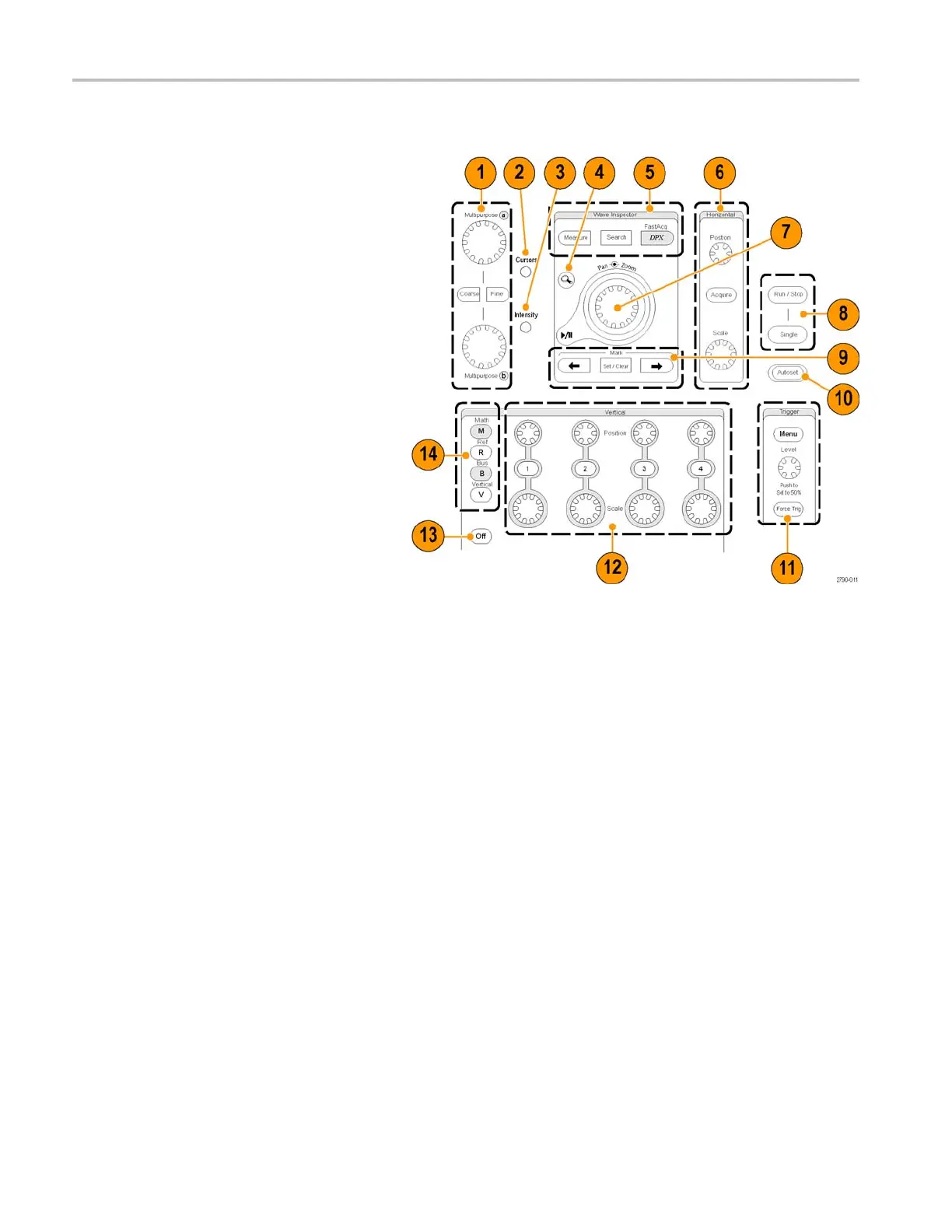

1. Turn to adjust
parameters selected from
the screen interface. Push Fine to select
fine adjustment, push Course to select
course adjust
ment.
2. Push to turn c
ursors on or off.
3. Push to adjus
t waveform intensity using
a Multipurpose knob.
4. Push to turn on MultiView Z oom and add
a magnified graticule to the display.
5. Push to perform automated
measureme
nts, search through
an acquisition for user-defined
events/criteria, or start or stop fast
acquisiti
ons.
6. Horizonta
lly scale, position, and set the
horizontal and acquisition parameters of
all waveforms.
7. Turn the inner zoom knob to control the
zoom fact
or. Turn the outer pan knob
to scroll the zoom window through the
acquired waveform. Push the play-pause
button t
o start or stop the automatic
panning of a waveform. Control the
speed and direction with the pan knob.
8. Use to start and stop acquisition or start
a singl
e acquisition sequence.
9. Use to s
earch and mark waveforms, to
establish or delete a waveform mark, or
to jump to the previous or next waveform
mark.
10. Push t
o automatically set up the vertical,
horizontal, and trigger controls based on
selected channels.
24 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
