A Tour of Your Instrument
Some of these us
e TEKPROBE capabilities to p ass the waveform signal and
scaling to the oscilloscope. Some only pass the signal and there is no other
communication.
5. Logic Probe Interface
The P6316 probe provides 16 channels of digital (on or off state) information.
6. The TPA-N-VPI Adapter allows you to use TekVPI probes in the RF input.
For more information on the many probes available for use with MDO3000 series
oscilloscopes, refer to www.tektronix.com.
A Tour of Your Instrument

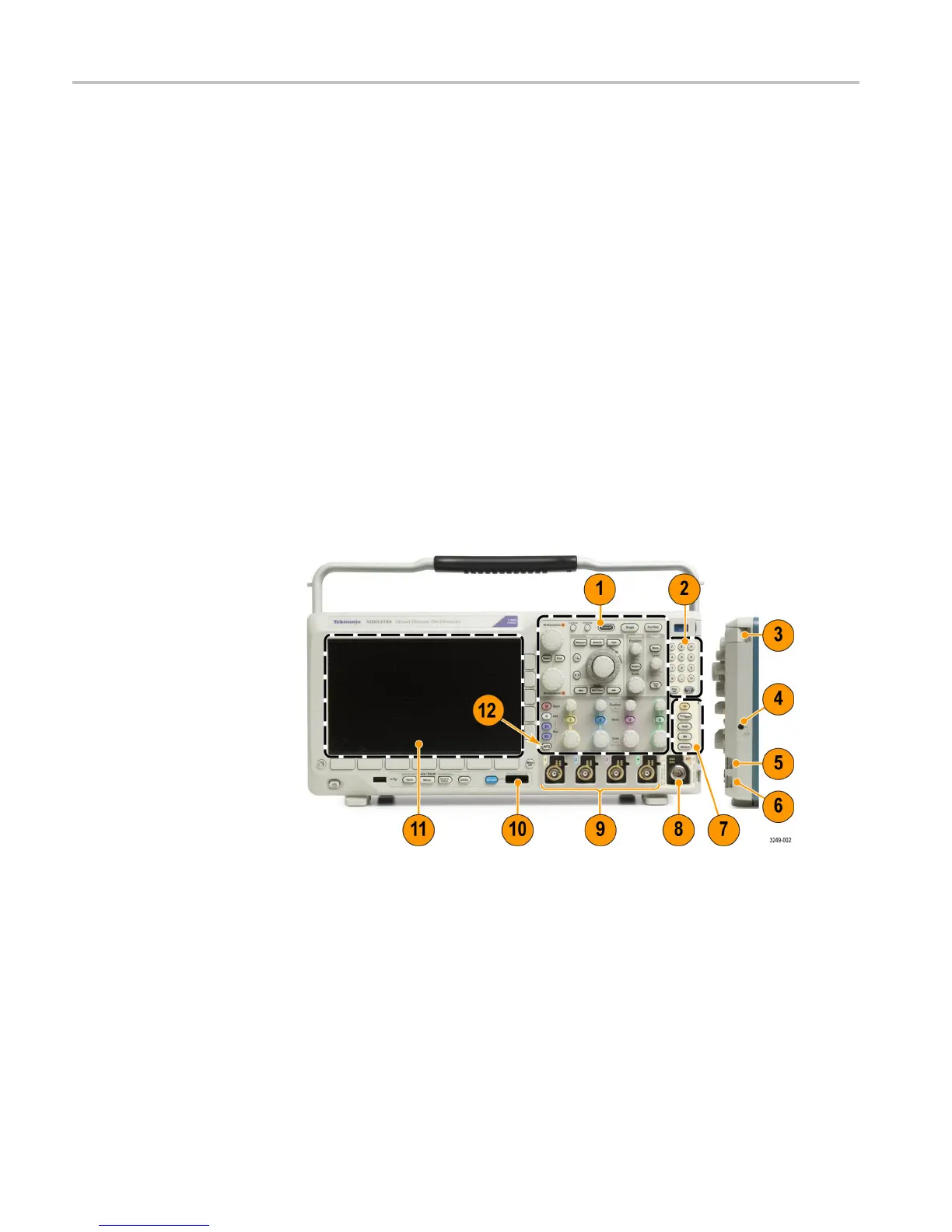

Front-Panel Menus, Controls, and Connectors
Overview
The front panel has buttons and controls for the functions that you use most often.
Use the
menu buttons to access more specialized functions.
1. Traditional o scilloscope front panel controls
2. 10-digit keypad
3. Application module slots
4. Ground strap connector
5. Ground
6. PROBE COMP
7. Dedicated spectral analysis controls
20 MDO3000 Installation and Safety Instructions
