Tektronix TDS3032B Service Manual

Maintenance
TDS3000B Series Service Manual
6-23
3. Use the
1
@
8
inch flat-bladed screwdriver to carefully lift the display cable from
connector J500 on the main board. See Figure 6--12.
4. Grasp and pull up on the front-panel cable wires to disconnect the cable from
J700 on the main board. See Figure 6--12.
Display cable
connector J500
Front-panel
connector J700

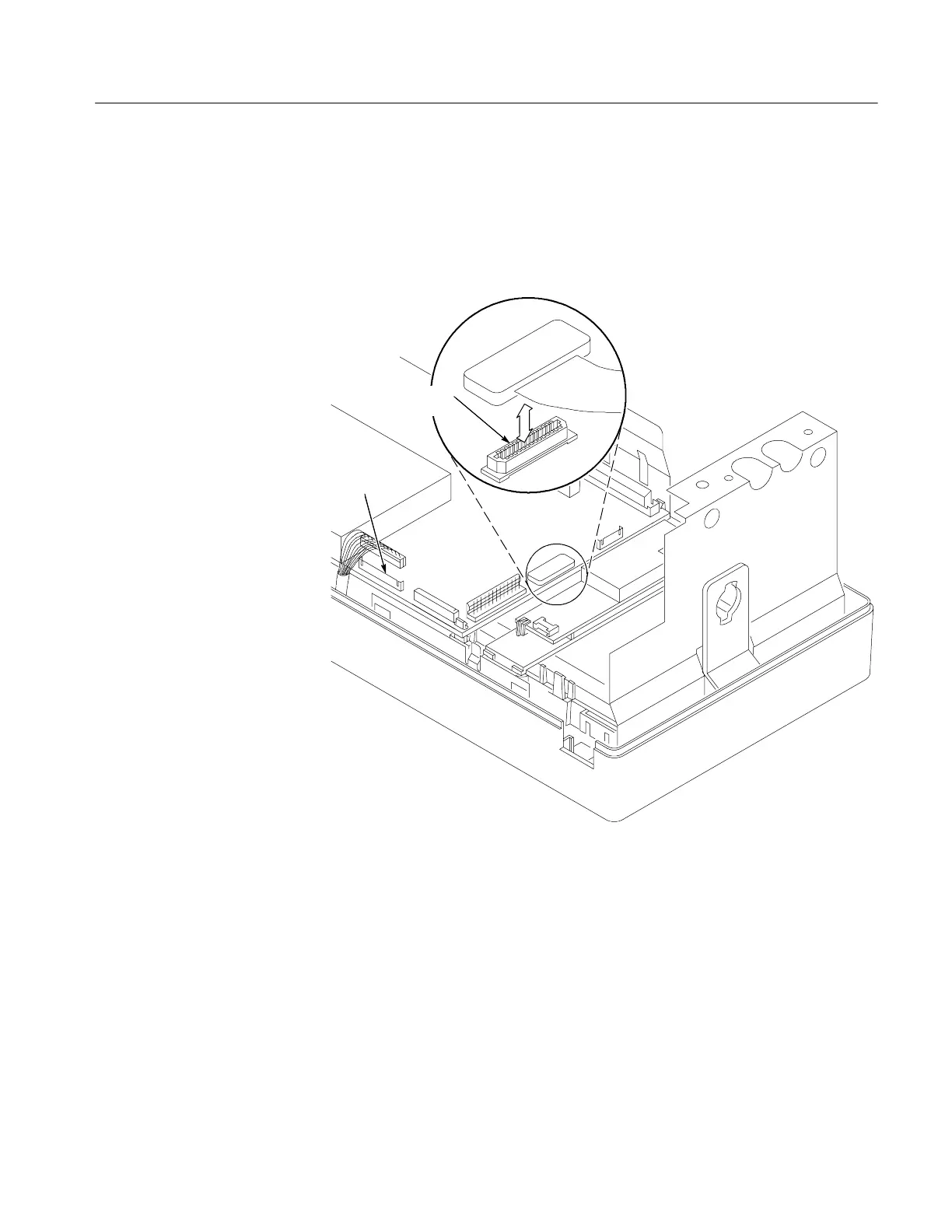

Figure 6- 12: Disconnect main board cable connectors
