Instructions SIP intercoms series 20-0001BS, 20-0014BS, 20-0016BS
Mounting
3

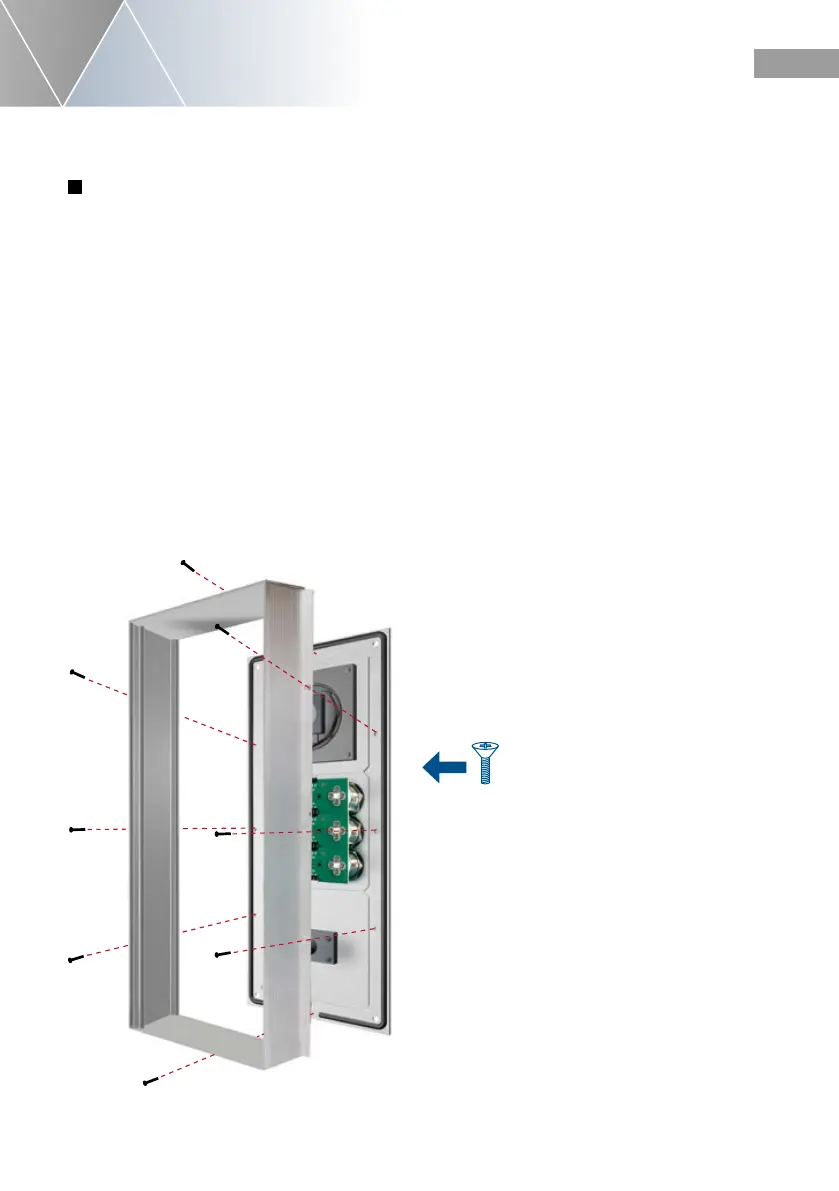

Fix modules in frame by means of module
housing
Fasten modules in the frame by means of
module housing. For frames that are larger
than their basic electronics, e.g. for the instal-
lation of special modules such as the Behnke
key switch module, Behnke key code panel
or similar, additional open counter plates are
required. For example, an additional counter
plate 20-4908 is required for a 3-fold frame
in conjunction with 2-fold basic electronics
(20-0014-BS). It is essential to check this in
advance and only use suitable counter plates.
For locally remote mounting, with the 20-0016-
BS basic electronics, an open counter plate
of a size suitable for the frame used is always
required. No module housing is included in the
scope of delivery for the locally detached basic
electronics (20-0016-BS).
M 2.5 x 4 mm countersunk screws Included in
the screw accessory pack.
Furthermore included in the screw accessory
pack: Allen key 2.5 mm 4 pcs. Allen screw M 4
x 20 mm for fastening the intercom station in
the Behnke surface-mounted housing, Behnke
in-wall housing or Behnke pedestals.
