Tenda AC5 User Manual

116
Solution
This requirement can be addressed by the Virtual Server function. Assume that the internal web server
information is listed as follows:
 Server IP Address: 192.168.0.110
 MAC Address of the Server Host: C8:3A:35:13:05:18
 User Name/Password: admin/admin
 Server Port: 80
Procedures:
1. Configure the Virtual Server function.
(1) To access the configuration page, click Advanced Settings > Virtual Server.
(2) Internal IP Address: Enter IP Address of the internal web server, which is 192.168.0.110 in this
example.
(3) LAN Port: Click drop-down list box and select internal service port number, which is 80(HTTP) in
this example.
(4) Protocol: Click drop-down list box and select protocol of a service, which is TCP&UDP in this
example.
(5) Click +New.

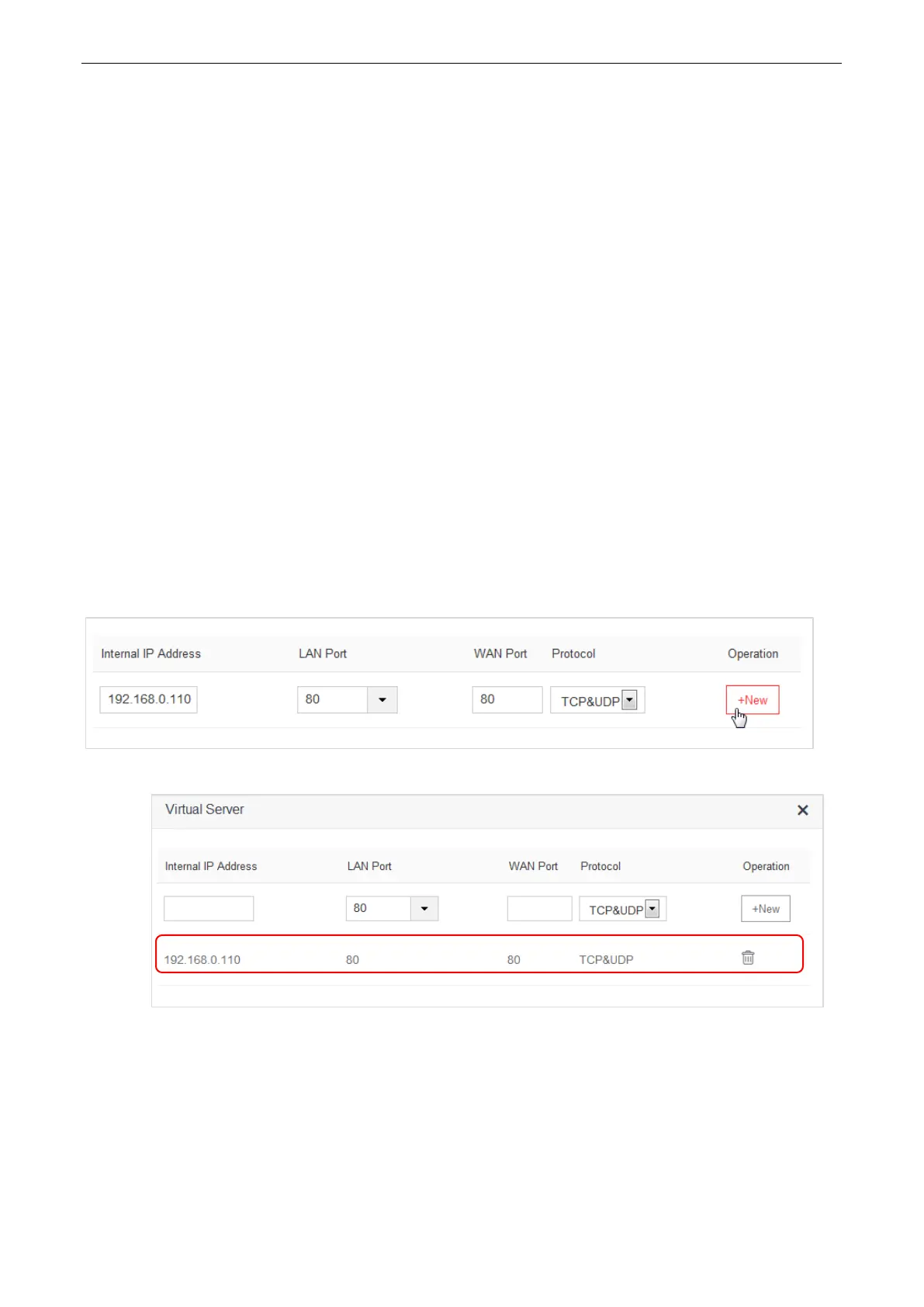

The rule is added successfully. See the following figure.
2. Assign static IP address to the host on which the server is built.
(1) Click System Settings > DHCP Reservation.
(2) Device Name: Set a name for the host, which is Web Server in this example.
(3) MAC Address: Enter the MAC address of the host, which is C8:3A:35:13:05:18 in this example.
(4) IP Address: Enter the static IP address assigned to the host, which is 192.168.0.110 in this
example.
(5) Click +New.

Tenda AC5 Specifications

General

Antennas quantity	4
Antenna gain level (max)	5 dBi
Certification	CE/FCC/RoHS
Built-in processor	Yes
Processor frequency	1000 MHz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
VPN support	L2TP/PPTP/IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
SIM card slot	No
Ethernet LAN (RJ-45) ports	3
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN
Security algorithms	WPA-PSK, WPA2-PSK, WPS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
