Tenda AC5 User Manual

117
—End

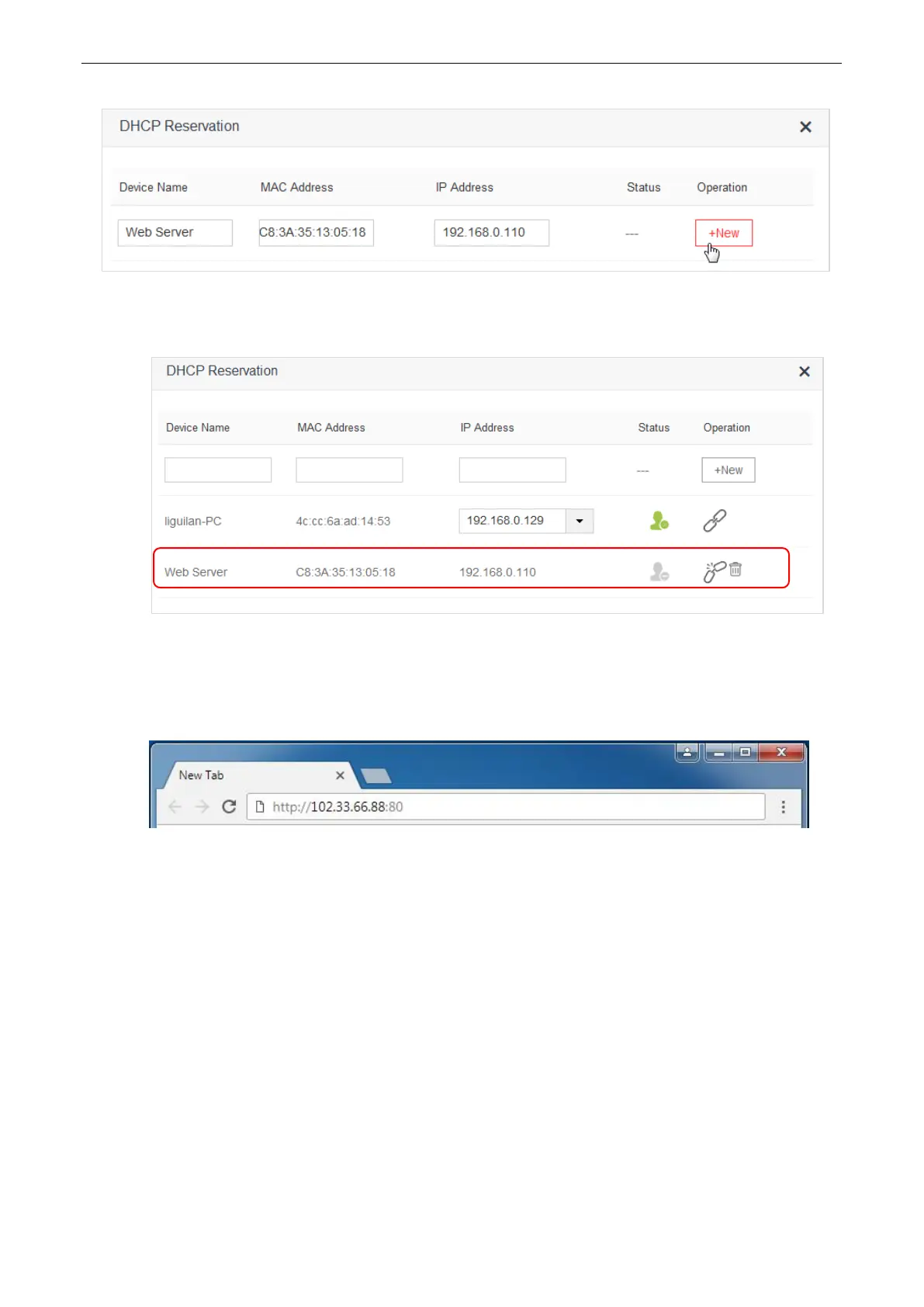

DHCP reservation rule is added successfully. See the following figure:
Verification
Internet users visit this web server in the form of “Protocol: //WAN IP address: external port”, which is
http://102.33.66.88:80 in this example. Then perform according to on-screen instructions.
If you want to visit that server by domain name, you can try the “Virtual Server + DDNS” method.

Tenda AC5 Specifications

General

Antennas quantity	4
Antenna gain level (max)	5 dBi
Certification	CE/FCC/RoHS
Built-in processor	Yes
Processor frequency	1000 MHz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
VPN support	L2TP/PPTP/IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
SIM card slot	No
Ethernet LAN (RJ-45) ports	3
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN
Security algorithms	WPA-PSK, WPA2-PSK, WPS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
