Terex R190T-ROW User Manual

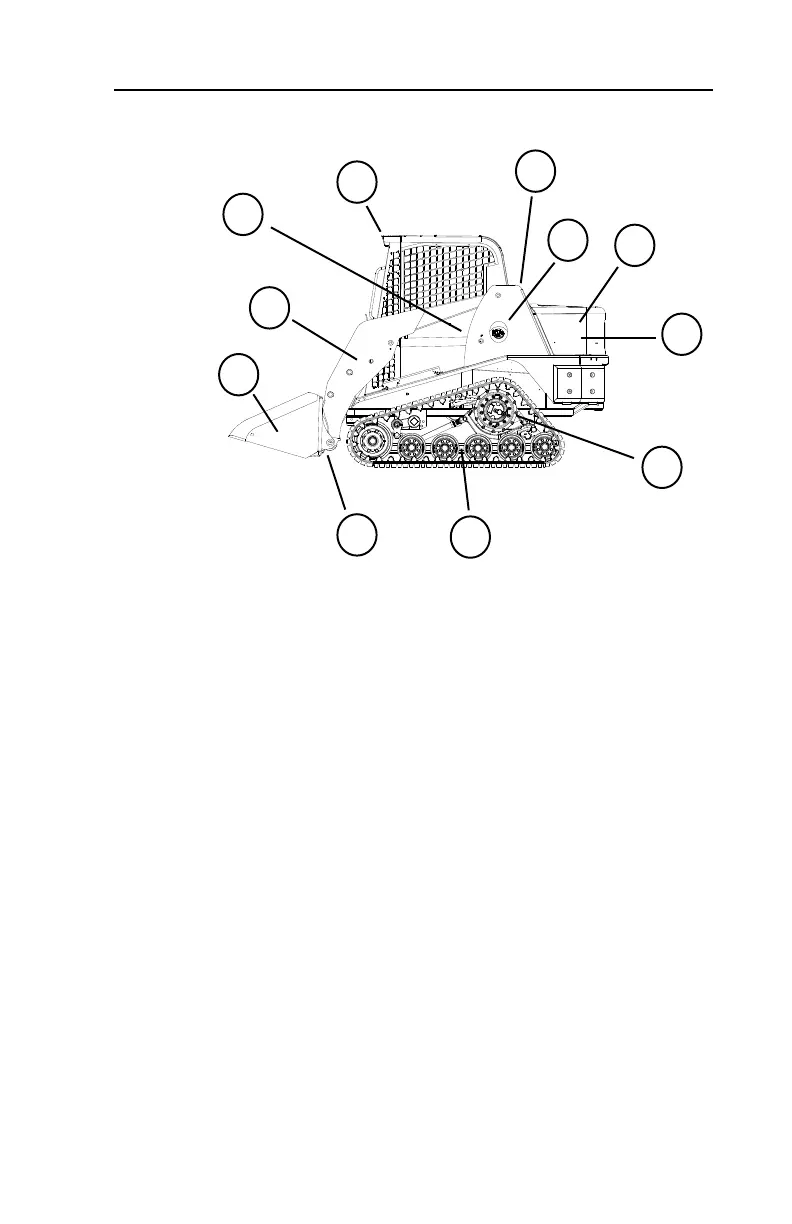

3.1 General Structure
Key
1. Bucket
2. Lift Arm
3. Operator Enclosure (R.O.P.S./F.O.P.S. approved)
4. Hydraulic Oil (fill location)
5. Diesel Fuel (fill location)
6. Hood (engine cover)
7. Engine
8. Drive Motor and Sprocket
9. Undercarriage
10. Quick Attach
11. Product PIN Plate (beside operator seat, inside enclosure)
3 TECHNICAL DATA
1
2
3
8
6
5
4
7
10
9
31
11
RT-60/R160T/R190T ROW O&M
0404-659 2016-05

Terex R190T-ROW Specifications

General

Brand	Terex
Model	R190T-ROW
Category	Compact Loader
Language	English
