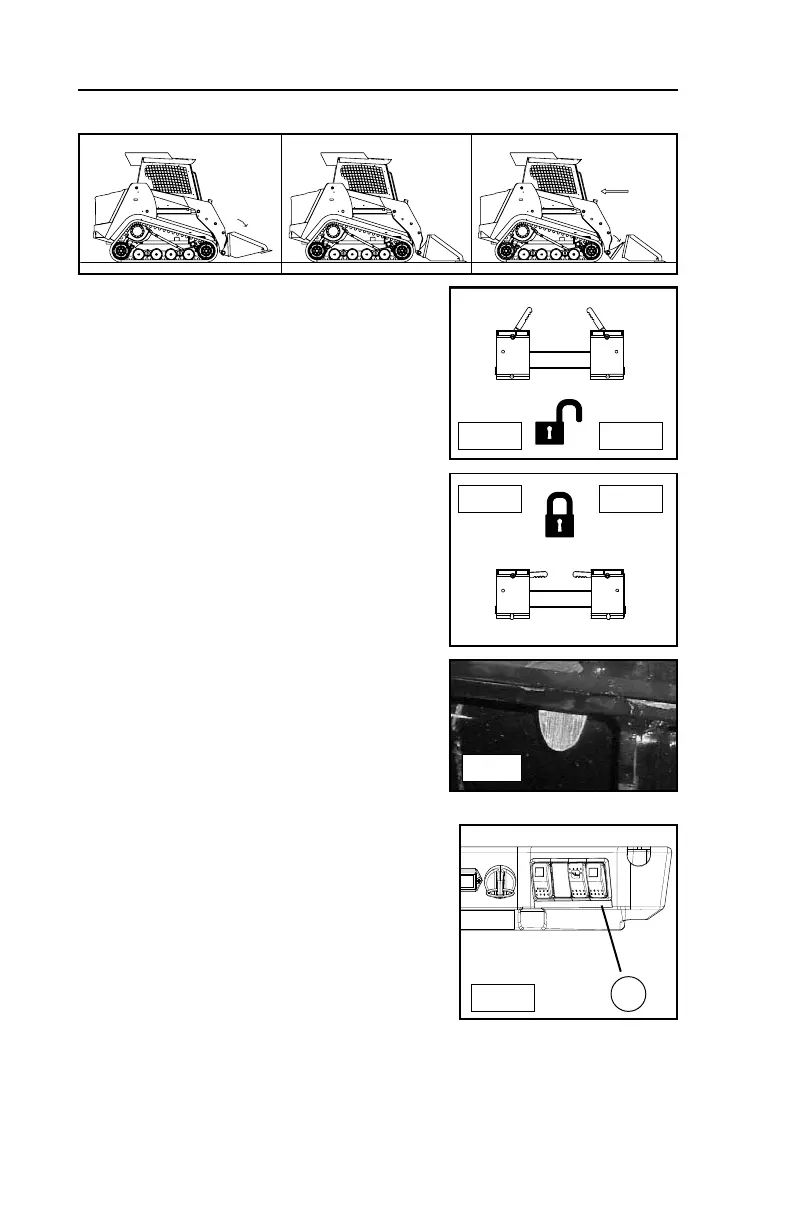

5.10 Unfastening Attachments (see also section 5.11, 5.1)
1. Lower the lift arms so that the attachment is
just barely off of the ground.
2. Pull the locking levers on the quick attach
mechanism upwards and toward the outside
of the machine to unlock the attachment.
3. Lay the attachment gently onto the ground
by moving the lift arm control joystick slowly
to the right.
4. Once the attachment is in contact with the
ground, move the lift arm control joystick
gently to the right until the quick-attach is
clear of the attachment.
5. Back the machine away from the
attachment.
5.11 Power Quick Attach
Some machines may be equipped with a hydraulic
(power) quick attach. The procedure is the same
for fastening and unfastening attachments as
described in sections 5.9 and 5.10 with one
exception. The locking and unlocking of the mech-
anism is performed by pressing a switch instead of
moving levers on the unit itself.
To lock the quick attach:
• Press the switch (item 1) into the lock position.
To unlock the quick attach:
• Press the switch (item 1) into the unlock position
5 OPERATION
52
5.10-1
5.11-1
1
5.10-3
5.10-2
unlock
lock
RT-60/R160T/R190T ROW O&M
0404-659 2016-05
