RMX SERIES
1-12
483018 - 3/15 Terex South Dakota RMX Series
OPERATION GUIDELINES

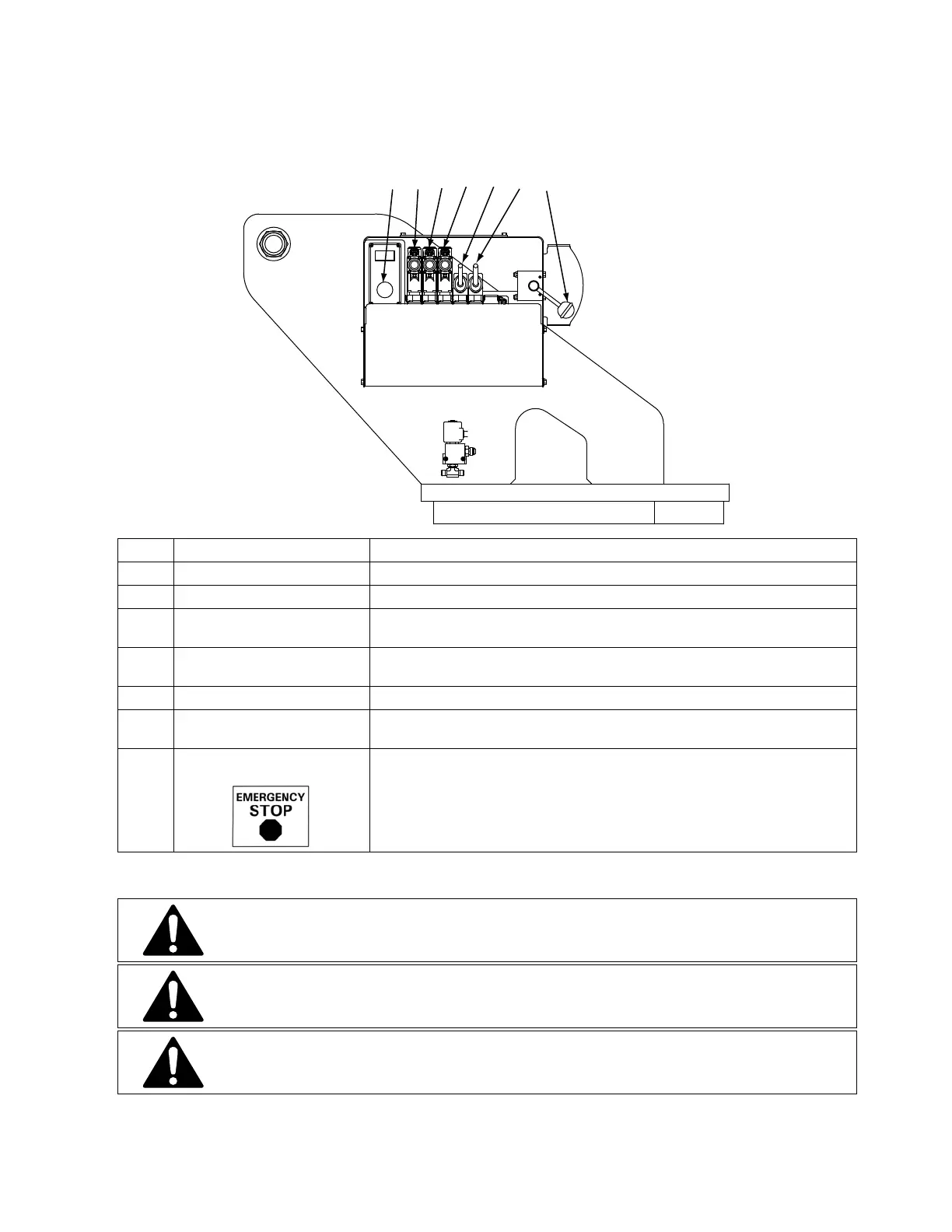

LOWER CONTROLS
NOTE: Lower boom, upper boom, and rotation sequence may vary. Refer to decal on Aerial
Device.
ITEM CONTROL DESCRIPTION
1. Rotation Controls rotation of booms.
2. Upper Boom Controls articulation of upper boom.
3. Lower Boom Controls lower boom articulation, upper maintains same angle to
truck.
4. Platform Leveling Allows the platform to be hydraulically tilted to level the platform.
Utilized for emergency removal and platform clean out.
5. Winch Used for operating the winch during material handling operations.
6. Palm Switch Part of the interlock system. Switch must be depressed and held in
order for lower hydraulic controls to be operational.
7. Top Control and Option
Shut Off
Controls oil flow to the option valve and hydraulic tool at the platform.
In the “OFF” position no oil is available at the platform valve. Must be
in the “ON” position to operate the jib, winch, platform rotate and
hydraulic tools at the platform location.
The decals are an integral part of this Aerial Device. If the decals are illegible, they must
be replaced.
Always operate controls slowly and deliberately for smooth movements. Rough handling
is never excusable and may cause damage to the Aerial Device and endanger the
operator
Use the Top Control and Option Shut Off to override upper boom controls with the lower
controls if needed. It will stop all oil flow to the boom tip.
OPERATE TOWER
PRESS AND HOLD
TO
6 1 2 3 4 5 7
