RMX SERIES

1-22

483018 - 3/15 Terex South Dakota RMX Series

OPERATION GUIDELINES

HYDRAULIC JIB EXTENSION (OPTIONAL)

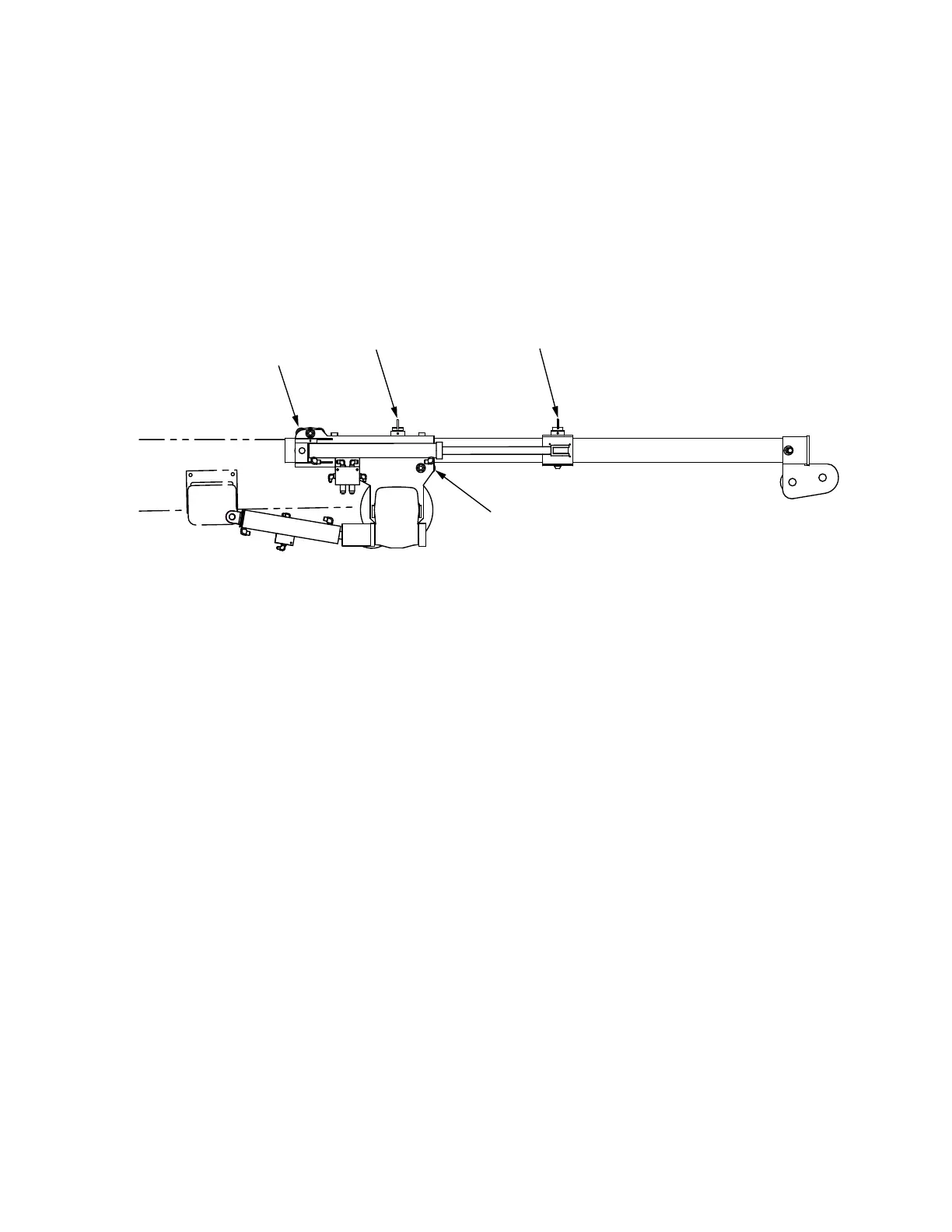

Refer to drawing below.

1. Install pin (1) and remove pin (2).

2. Extend or retract cylinder for desired direction to next hole and insert pin (2).

3. Remove pin (1).

4. Hydraulic extendable jib is now ready for use.

5. If a longer jib reach is required, repeat steps 1 and 2.

NOTE: One pin, either (1) or (2), must always be installed to hold jib in position.
