3.6 Golden Image Screen
Press the Golden Image button to select the Golden Image window. This window allows the user to
export the device firmware as an .srec, .bq.fs and .df.fs files.

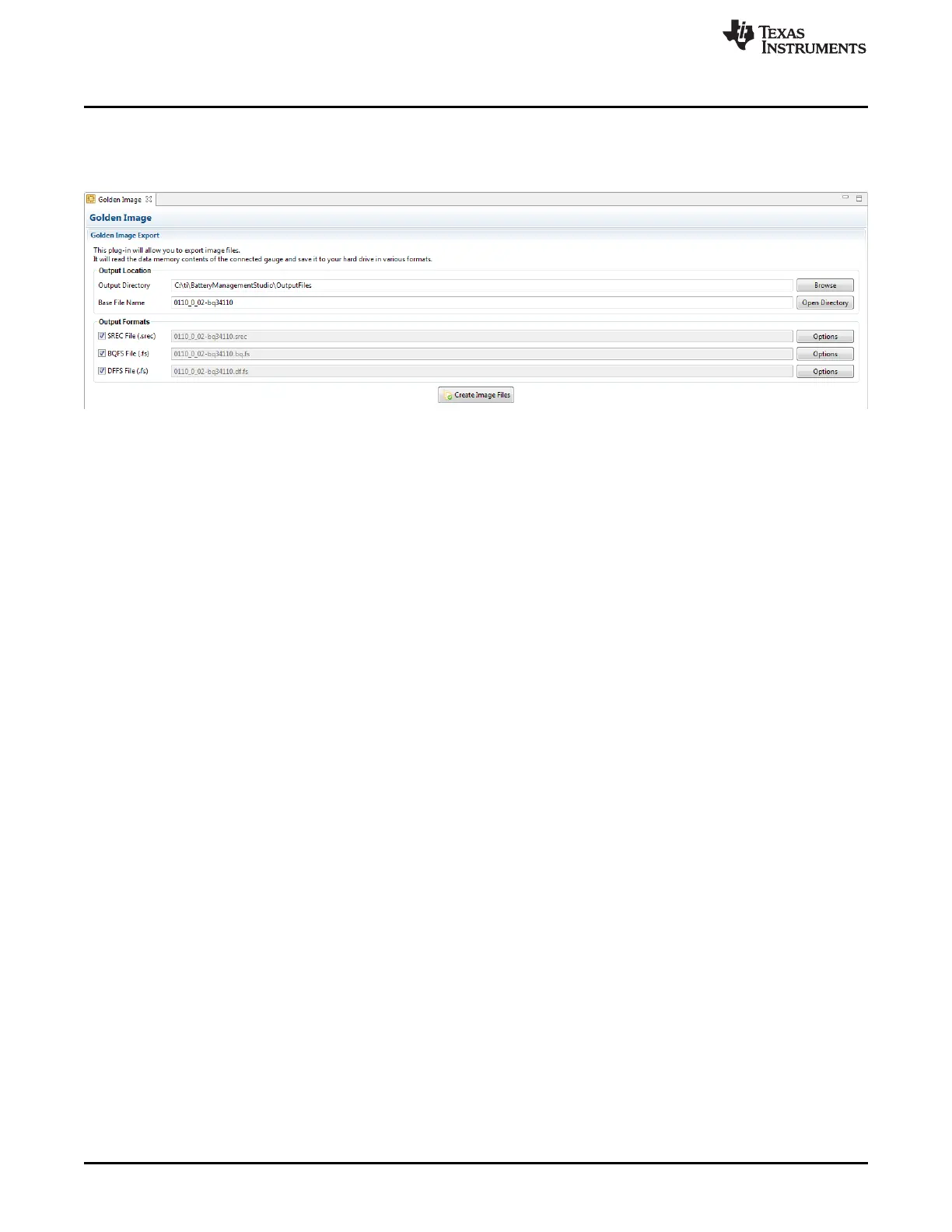

Figure 7. Golden Image Window
3.6.1 Exporting the Flash Memory
The .srec file contains the full flash memory. The .bq.fs contains the program memory portion for the flash
memory and the .df.fs contains the data flash portion of the flash memory (seeFigure 7).
• Select the directory location to export the files.
• Enter the file name for the files.
• Select the files types to export.
• Press the Create Image File button to export the memory and create the files.
