bq34110EVM-796 Evaluation Module
3.7 Setting the CEDV Parameters
To ease evaluation of the bq34110, users can obtain the CEDV parameters from our online gauging
parameter calculator (GPC) for the CEDV gauges tool (www.ti.com/tool/GPCCEDV). After programming
the design parameters to the gauge, the EVM can be used to obtain the experimental data needed to
calculate the CEDV coefficients.

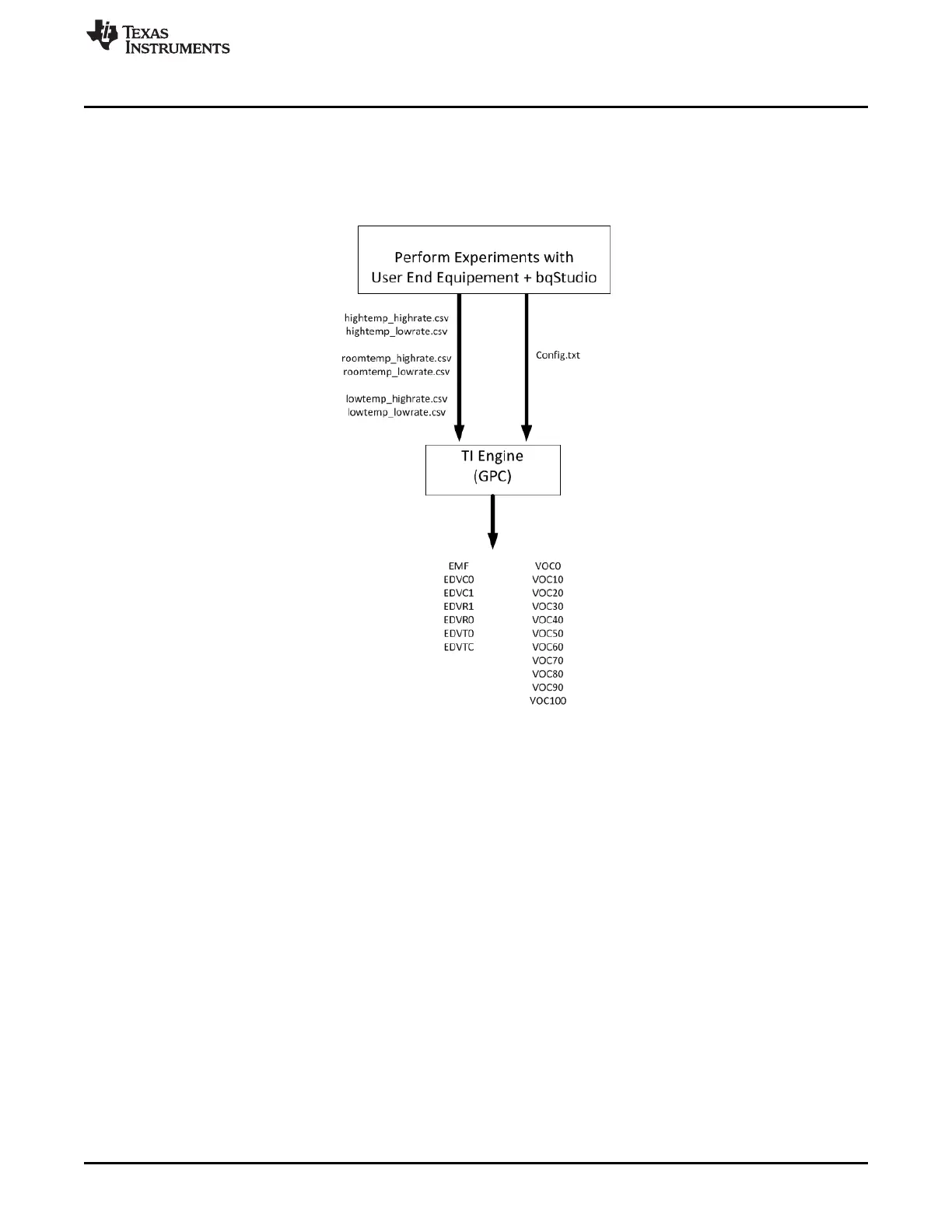

Figure 8. CEDV Coefficients Calculation Flow
The equipment necessary is as follows:
• bqStudio software
• bq34110EVM-796
• Power supply able to source/sink current. A DC power supply and electronic load.
See the Simple Guide to CEDV Data Collection for Gauging Parameter Calculator (GPC) user's guide
(SLUUB45) for a detailed explanation of the CEDV coefficients data collection process and GPC tool
configuration.
Use the GPC Cycle plug-in to control the collection of the log files and the GPCPackager plug-in to
package the files into a zip file to import to the online GPCCHEM tool.
