Cabin Information Display
This Cabin Display is an airborne data display system intended to provide a wide
variety of flight information. It consists of (1) an SSW Model 90006 Processor
Unit, (2) an SSW Model 15001 Display Unit and (3) an SSW Model 35012
Display Cable. The Model 90006 Processor Unit processes data transmitted
from the aircraft data bus, stores custom graphics downloaded by the user and
provides control interface of Fasten Seatbelts and No Smoking messages for the
Display Unit. For instructions on how to use this unit, refer to the Spirent
Operation manual.
Cabin
Information
Display

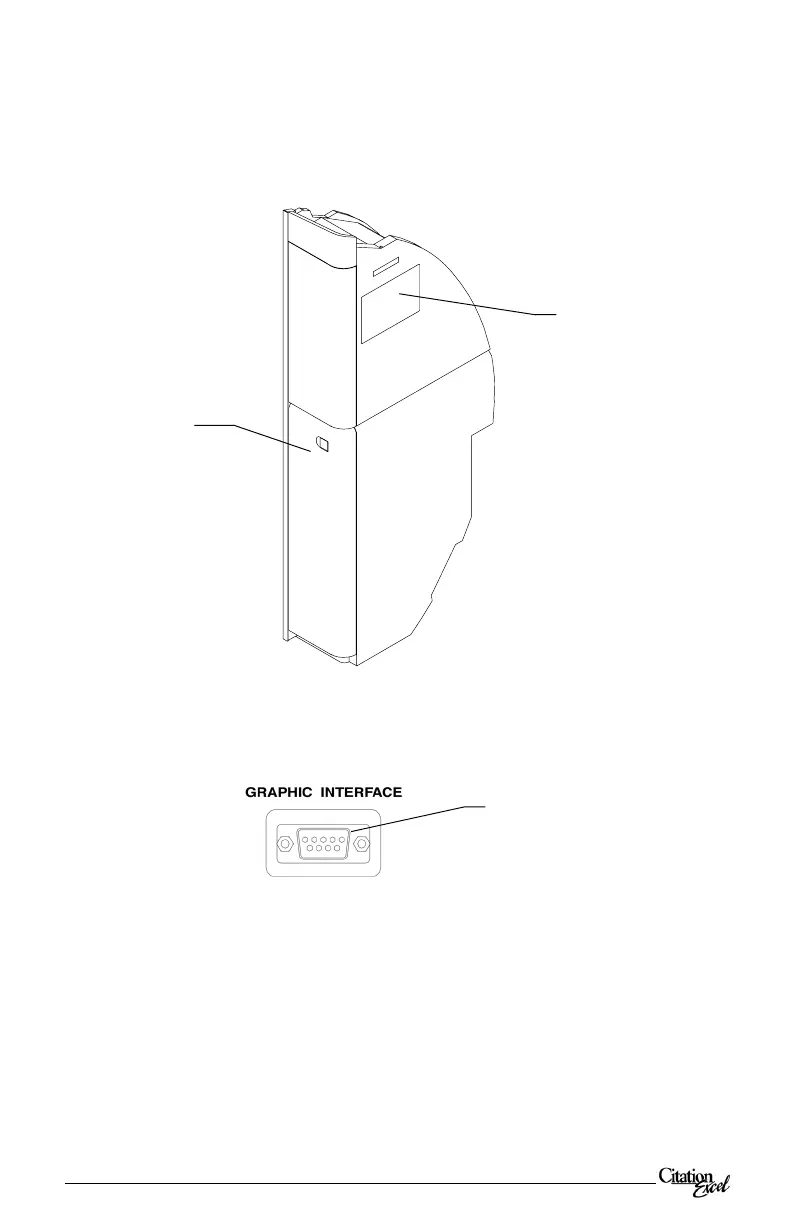

Connect download device to
9-Pin Connector
Cabin Information Data Port Operation
The Cabin Information Data Port is used for downloading images to the cabin
information display for viewing. It is located in the forward closet.
Cabin Information
Data Port
