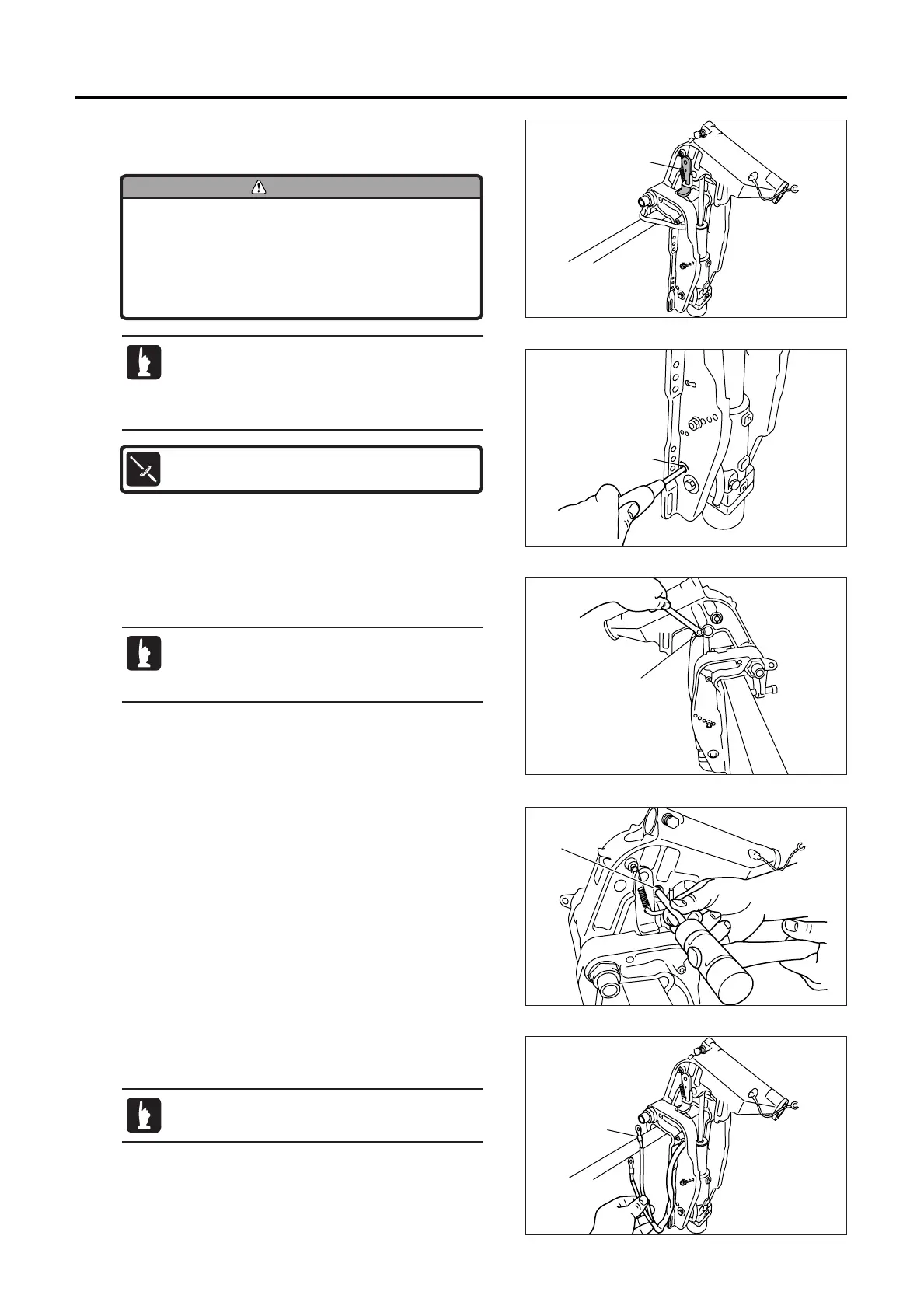

5. Removing PTT Unit
1. Fully tilt up outboard motor and lock with tilt stopper 1.
1
2
34
5
6
WARNING
Be sure to lock outboard motor with tilt
stopper after tilting up. Leaving outboard
motor up without locking may lead to
accidental descent due to reduction of PTT
hydraulic pressure.
2. Remove bolt 3 and washer 4 located on the starboard side
of the outboard motor, and then upper cylinder pin 5.
IF PTT unit will not operate, open manual valve
and lift up outboard motor with hands. When
manual valve is opened, be sure to tighten it with
specified torque after tilting up outboard motor.
Manual valve 2 :
2 N・m（1.5 lb・ft）［0.2 kgf・m］
Upper cylinder pin can be removed easily when
tilt rod is retracted a little by performing tilt down
operation.
3. Disconnect PTT cable 6 from PTT solenoid, and earth code
7 from power tilt unit.
Disconnect negative battery cable first and then
positive cable.
