15
4st 9.9/15/20 2009

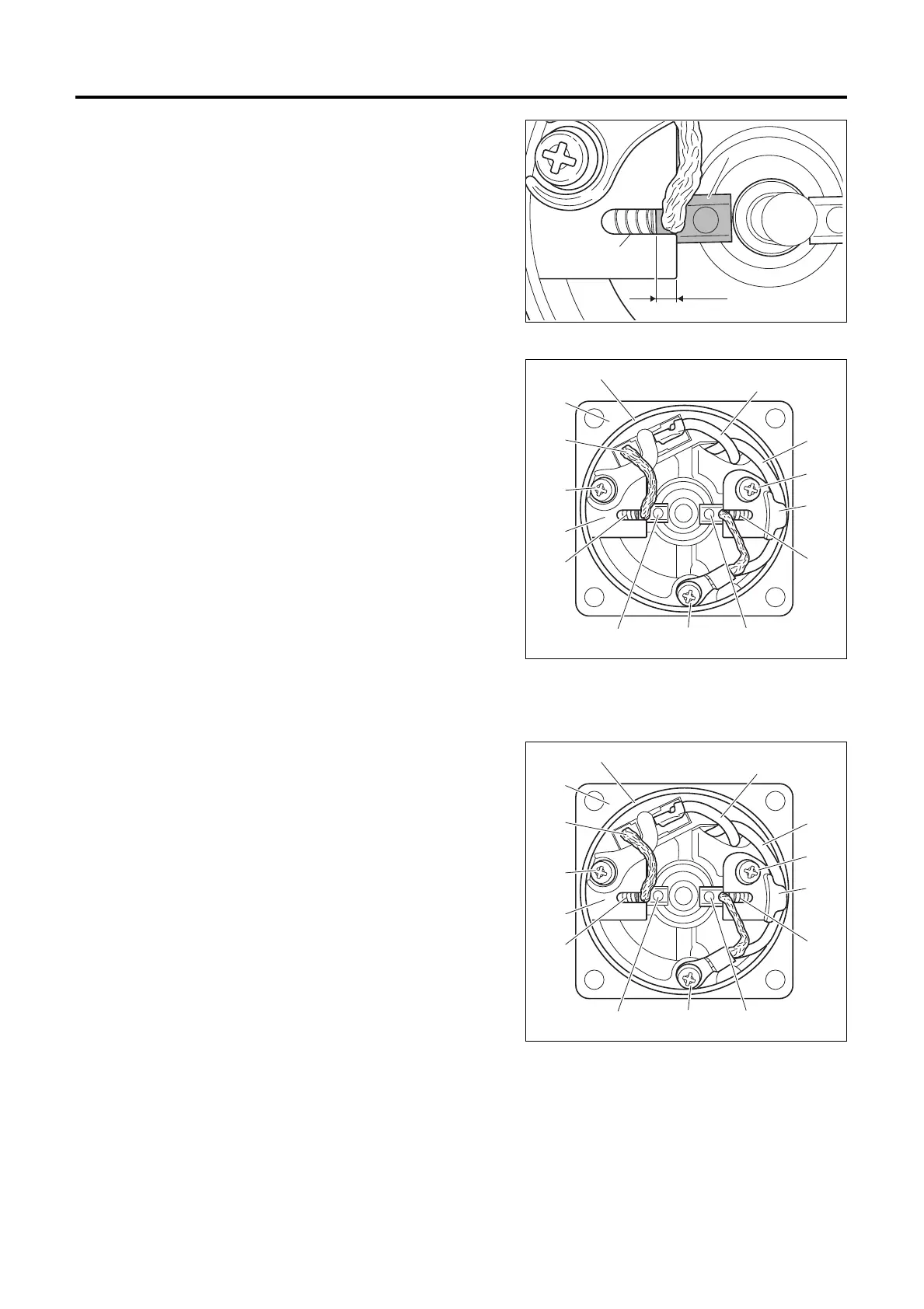

3）Inspection of Motor
1. Replace brush 5 if it is damaged or if gap between brush
end in the groove of brush holder 4 and brush holder end is
1.6mm or less.
4）Replacement of Motor
1. Remove 3 screws 3, and remove brush 5 and circuit
breaker 7 from motor bracket 8.
2. Remove circuit breaker 7.
3. Remove brush holder 4 and brush 5.
1Wire (blue)
2Wire (green)
3Screw
4Brush holder
5Brush
6Spring
7Circuit breaker
8Motor bracket
9O ring
5）Assembling Power Tilt Motor
1. Attach circuit breaker 7 to motor bracket 8.
2. Attach circuit breaker holder securely by using screws.
3. Attach blue wire 1 to terminal post of circuit breaker 7.
4. Place green wire 2 along bore of bracket.
5. Attach brush holder 4 by using screw 3.
6. Attach green wire 2 and brush wire end to motor bracket 8
securely by using screw 3.
7. Attach 2 springs 6 in the brush.
8. Attach circuit breaker 7 and brush 5 in the groove.
To Next Page
