TOHATSU MFS 15 Service Manual

4
PTT Unit
4st 9.9/15/20 2009
1ClampBracket(PTT-Right)11-Starboard
2ClampBracket(PTT-Left)11-Port
3SwivelBracketShaftAss'y11-
4NylonNut,7/811-
5Washer,22-36-122-Nylon
6Plate11-
7BracketShaftCap22-forEFT
8ClampScrew22-M14P-2.0
9ClampScrewPad22-
10 SwivelBracket(PTT)11-
11 GreaseFitting33-
12 TiltStopper11-
13 TiltStopperGrip11-
14 Collar,10.2-12-1222-
15 Washer11-
16 SpringPin,3.6-1611-
17 TiltStopperSpring11-
18 TrimLockPin22-
19 Washer,8.1-16-1.522-
20 NylonNut(2T),M8P-1.2522-

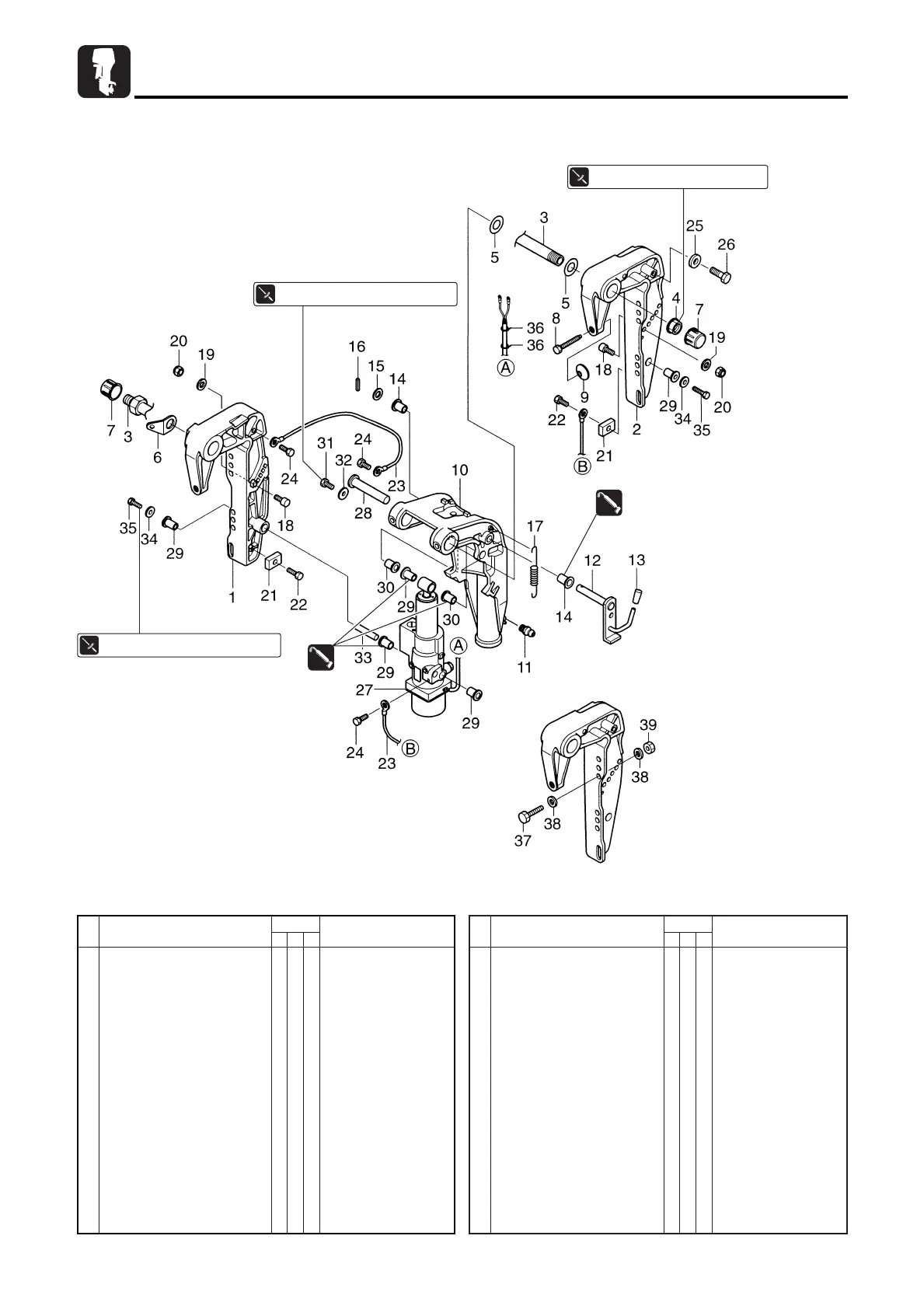

2. Parts Layout
Bracket (PTT)
Ref.
No.
Description
Remarks
Q'ty
9.9 15 20
21 Anode22-
22 Bolt22-
23 GroundCable22-L=130
24 Bolt33-
25 Washer,6.5-23-1.511-
26 Bolt11-
27 PowerTiltAss'y11-
28 CylinderPin(Upper)11
29 Bushing,13-16-3155
30 Bushing,13-17-19.522
31 Bolt11-
32 Washer,6.5-23-1.511-
33 CylinderPin(Lower)11-
34 Washer,9.5-28-122-
35 Bolt22-
36 LeadWireBand,20322-
37 Bolt44-
38 Washer88-
39 Nut44-
Ref.
No.
Description
Remarks
P/L Fig. 20
Q'ty
9.9 15 20
13 N·m (9.4 lb·ft) [1.3 kgf·m]
13 N·m (9.4 lb·ft) [1.3 kgf·m]
24 N·m (17 lb·ft) [2.4 kgf·m]
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
