TOHATSU MFS 30B User Manual

13

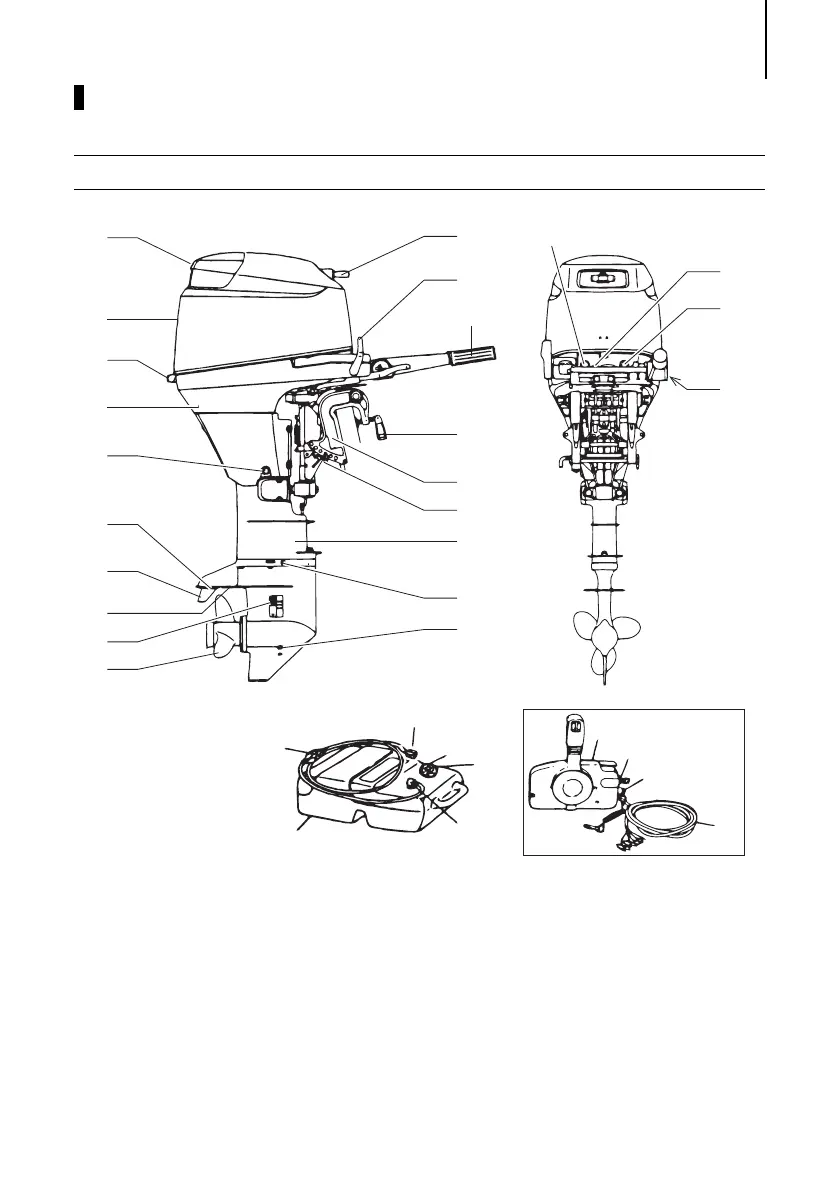

NAMES OF PARTS
ENOM00016-0
MF, EF, EP
EP
*3
1
2
3
4
5
6
7
8
9
10
11
24
25
26
27
30
31
32
33
28
29
12
13
14
15
16
17
18
19 20
21
22
23
ENOF00001-0
1 Tilt Handle
2 Top Co wl
3 Bottom Cowl
4 Cooling Water Check Port
5 Oil Drain Bolt
6 Anti Ventilation Plate
7 Trim Tab
8 Sub Water Inlet
9 Water Inlet
10 Propeller
11 Oil Plug (Lower)
12 Oil Plug (Upper)
13 Drive Shaft Housing
14 Thrust Rod
15 Clamp Bracket
16 Clamp Screw
17 Throttle Grip
*1
18 Shift Lever
*1
19 Starter Handle
20 Stop Switch
21 Warning Lamp
22 Starter Switch
*2
23 Fuel Connector
24 Primer Bulb
25 Fuel Connector
26 Fuel Tank Cap
27 Air Vent Screw
28 Fuel Pick up Elbow
29 Fuel Tank
30 Remote Control
31 Main Switch
32 Stop Switch
33 Cord Assembly
*1: MF and EF type only.
*2: EF type only.
*3: EP type only.
MFS25-30B_EN.book Page 13 Wednesday, December 12, 2012 11:58 AM

TOHATSU MFS 30B Specifications

General

Brand	TOHATSU
Model	MFS 30B
Category	Outboard Motor
Language	English
