INSTALLATION 23

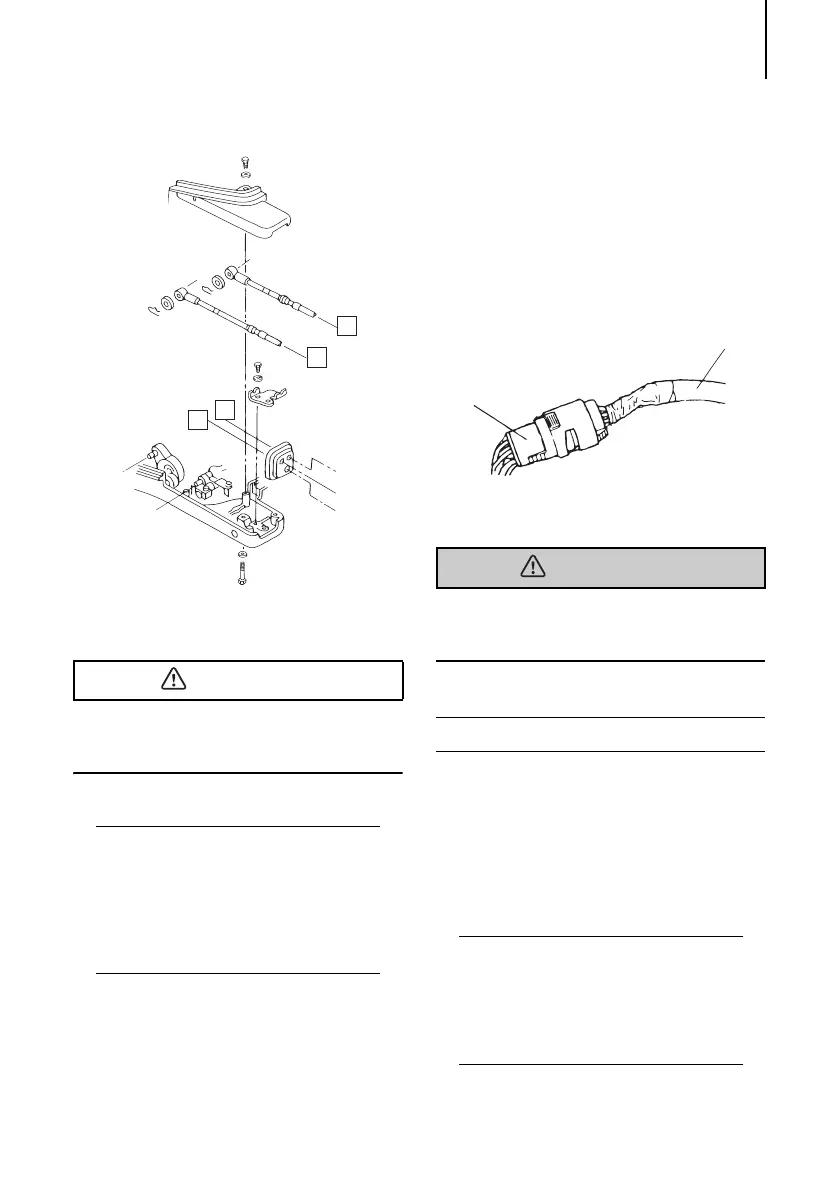

1. Shift cable
2. Throttle cable
3. Cable harness B
ENOW00100-0
Be careful not to loop the remote control
cables to a diameter of 406 mm (16 inches)
or less.
ENON00005-0
Note
Confirm the outboard motor shifts correctly
when the shift lever is placed in Forward and
Reverse position. also confirm the throttle
valve is closed at idle, in Neutral, Forward,
and Reverse. Confirm the throttle valve is
fully open when in Forward at the wide open
position.
3. Connecting the Cord assembly (Wiring
Harness)
Connect cable harness B to cable har-
ness A.
Location of the connectors is near the
recoil starter of starboard side in the
cowl.
1. Cable harness A (Outboard motor side)
2. Cable harness B (From remote control)
ENOW00011-0
Do not disconnect the cord assembly when
the outboard motor is in operation or you
will lose control of the outboard motor.
ENOM00029-0
1. Place the battery box in a convenient
position away from possible water
spray. Securely fasten both the box
and the battery so they do not shake
loose.
ENON00006-0
Note
Minimum recommended battery: 12V, 70AH
(465 Marine Cranking Amps (MCA) or 350
Cold Cranking Amps (CCA)) Specifications
and features of batteries vary among the
manufacturers. Consult the manufacturer for
details.
CAUTION
S
1
2
3
T
T
S
T
S
S
T
ENOF00020-0
WARNING
3. Installing the battery
2
1
ENOF00021-0
MFS25-30B_EN.book Page 23 Wednesday, December 12, 2012 11:58 AM
